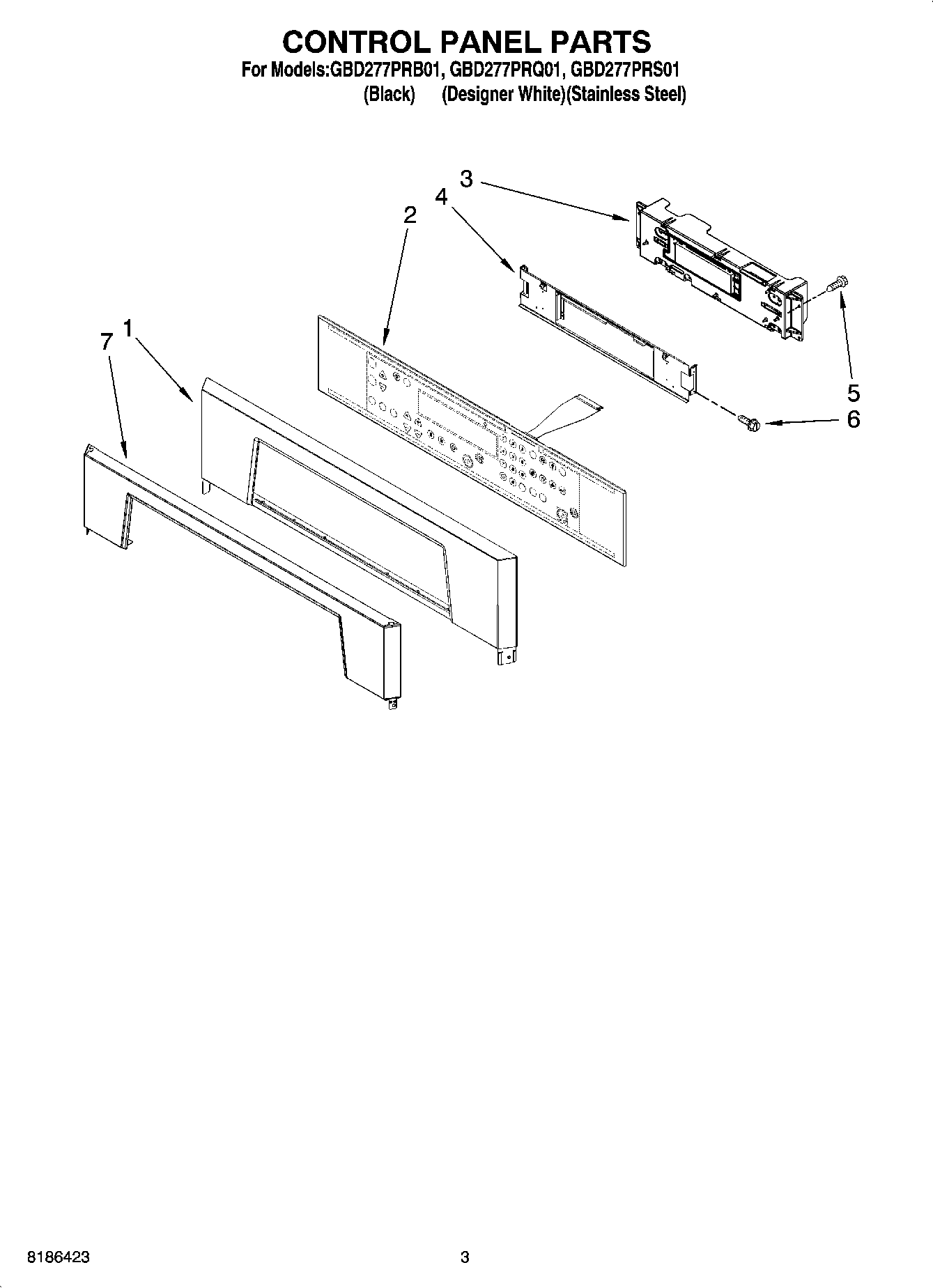

GBD277PRQ01 02 – CONTROL PANEL PARTS

GBD277PRQ01 02 – CONTROL PANEL PARTS

Written by

in

GBD277PRQ01 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Control Panel (White Model)
1WP8302844 Whirlpool Control Panel
2Assy, Switch (White)
2Assy, Switch (Black)
3Assy, Control
3Latch, Sister Board
4Control, Bracket
5WP3400832 Whirlpool Screw
6WP4449745 Whirlpool Screw
7Trim-Panel (Use on S.Steel model only)
