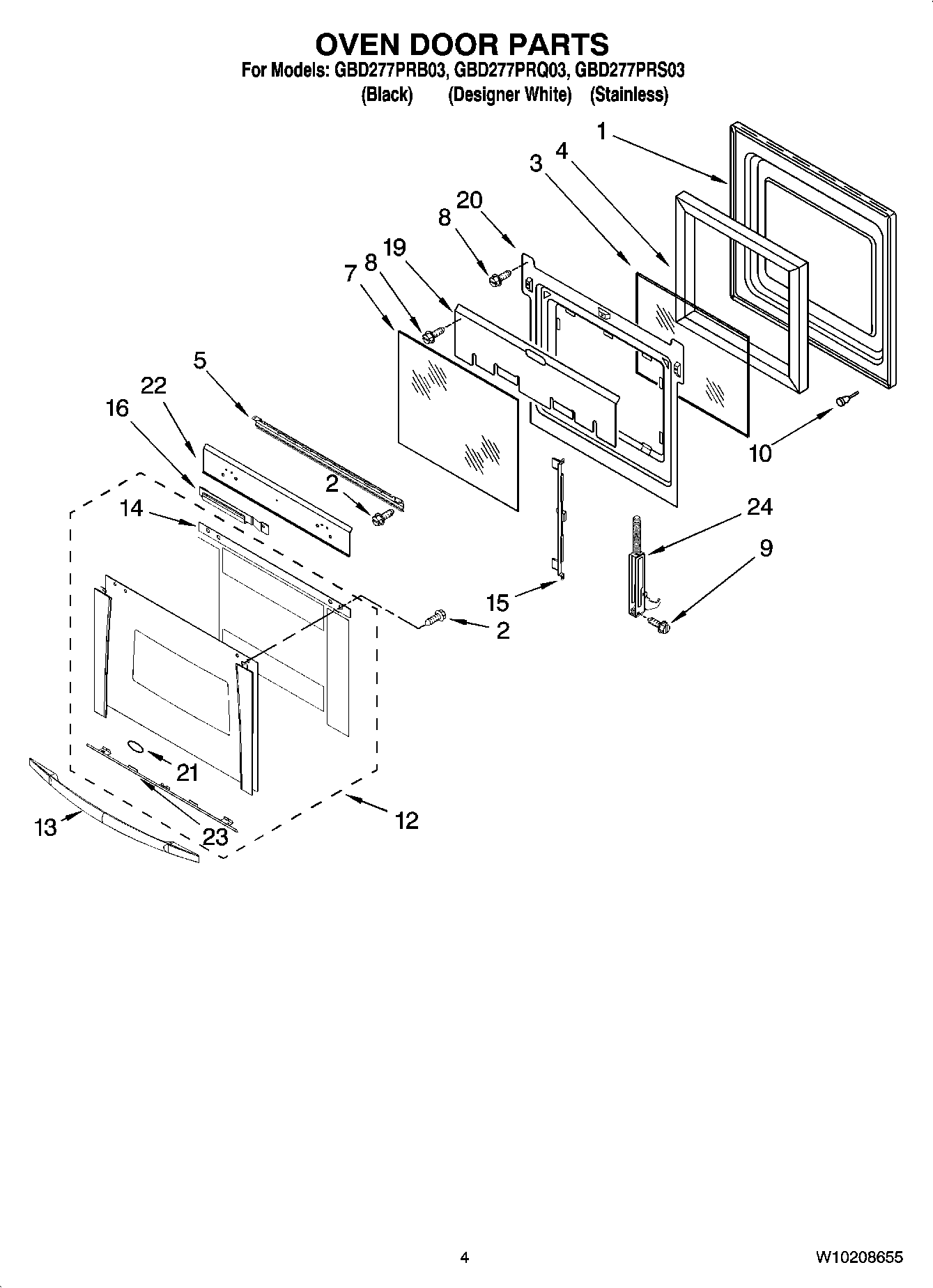

GBD277PRQ03 03 – OVEN DOOR PARTSadmin2025-04-26T10:59:06+00:00GBD277PRQ03 03 – OVEN DOOR PARTS
Products
| Position | Product |
|---|
| 1 | Door Liner |
| 2 | Screw |
| 3 | WP4449253 Whirlpool Glass Window |
| 4 | Insulation, Sides |
| 5 | Bracket, Handle |
| 7 | Glass, Inner |
| 8 | WP4449809 Whirlpool Screw |
| 9 | WP4449743 Whirlpool Screw |
| 10 | 4448520 Whirlpool Oven Bumper |
| 12 | Assy., Door Glass (White Model) |
| 12 | Assy., Door Glass (S.Steel Model) |
| 12 | Door Glass, Assy (Upper) (S.Steel) |
| 12 | Door Glass, Assy (Upper) (Black) |
| 12 | Door Glass, Assy (Upper) (White) |
| 12 | Assy., Door Glass (Black Model) |
| 13 | Handle, Door (Black Model) |
| 13 | Handle, Door (White Model) |
| 13 | Handle, Door (S.Steel Model) |
| 14 | Seal-Door |
| 15 | WP9759229 Whirlpool Mounting Bracket |
| 16 | Bracket (3rd Glsss) |
| 19 | Shield, Heat |
| 20 | Retainer, Glass |
| 21 | Name Plate |
| 22 | Shield, Heat (Bottom) |
| 23 | Clip, Door (Black) |
| 23 | Clip, Door (White) |
| 24 | WP9760576 Whirlpool Door Hinge (Left) |
| 24 | HINGE-DOOR |
