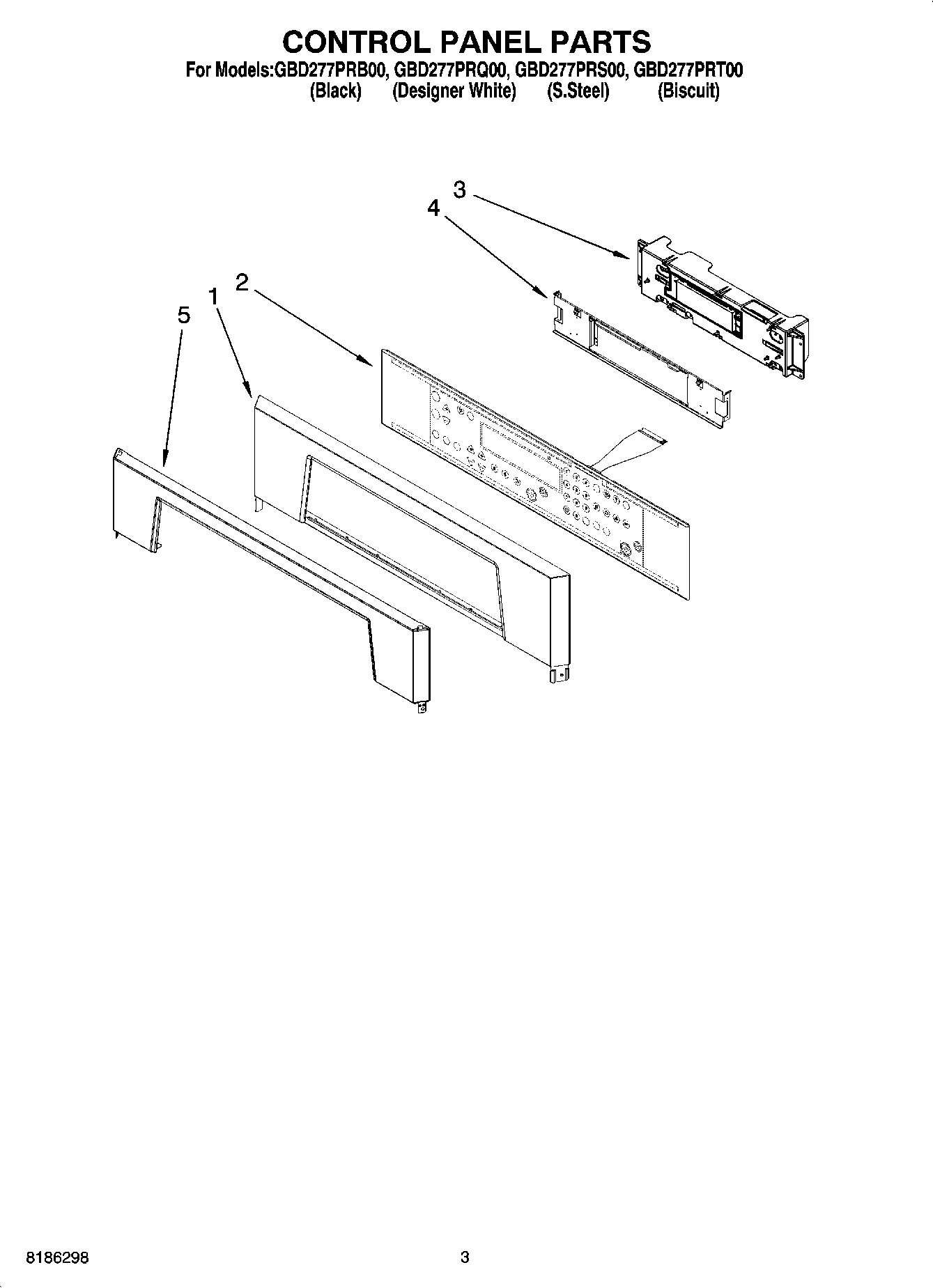

GBD277PRS00 02 – CONTROL PANEL PARTS

Written by

Products

Position	Product
1	Control Panel (Biscuit Model)
1	WP8302844 Whirlpool Control Panel
1	Control Panel (White Model)
2	Assy, Switch (Biscuit)
2	Assy, Switch (White)
2	Assy, Switch (Black)
3	WP3400832 Whirlpool Screw
3	Latch, Sister Board
3	Assy, Control
4	Control, Bracket
4	WP4449745 Whirlpool Screw
5	Trim-Panel (Use on S.Steel model only)
