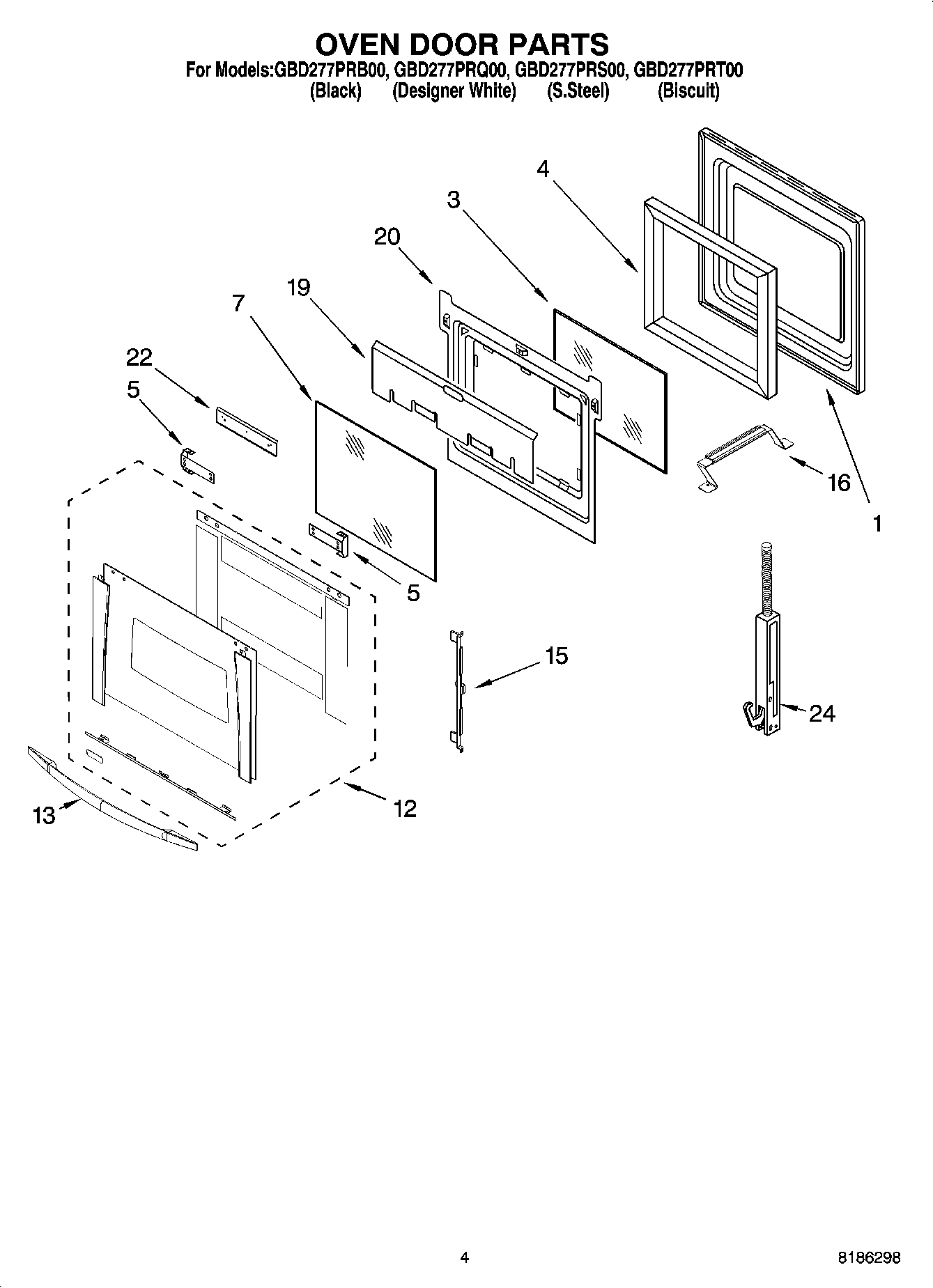

GBD277PRS00 03 – OVEN DOOR PARTS

Products

Position	Product
1	Door Liner
3	WP4449253 Whirlpool Glass Window
4	Insulation, Sides
5	Bracket, Handle
5	WP3400832 Whirlpool Screw
5	Screw
7	Glass, Inner
12	Door Glass, Assy (Upper) (Black)
12	Assy., Door Glass (S.Steel Model)
12	Assy., Door Glass (Black Model)
12	Door Glass, Assy (Upper) (Biscuit)
12	Assy., Door Glass (White Model)
12	Door Glass, Assy (Upper) (White)
12	Assy., Door Glass (Biscuit Model)
12	Door Glass, Assy (Upper) (S.Steel)
13	Handle, Door (Black Model)
13	Handle, Door (White Model)
13	Handle, Door (Biscuit Model)
15	WP9759229 Whirlpool Mounting Bracket
16	Bracket (3rd Glsss)
19	Shield, Heat
20	Retainer, Glass
20	WP4449809 Whirlpool Screw
22	Shield, Heat (Bottom)
24	Handle, Door (S.Steel Model)
24	HINGE-DOOR
24	HINGE-DOOR LH/SS DOOR SPRING
24	WP4449743 Whirlpool Screw
