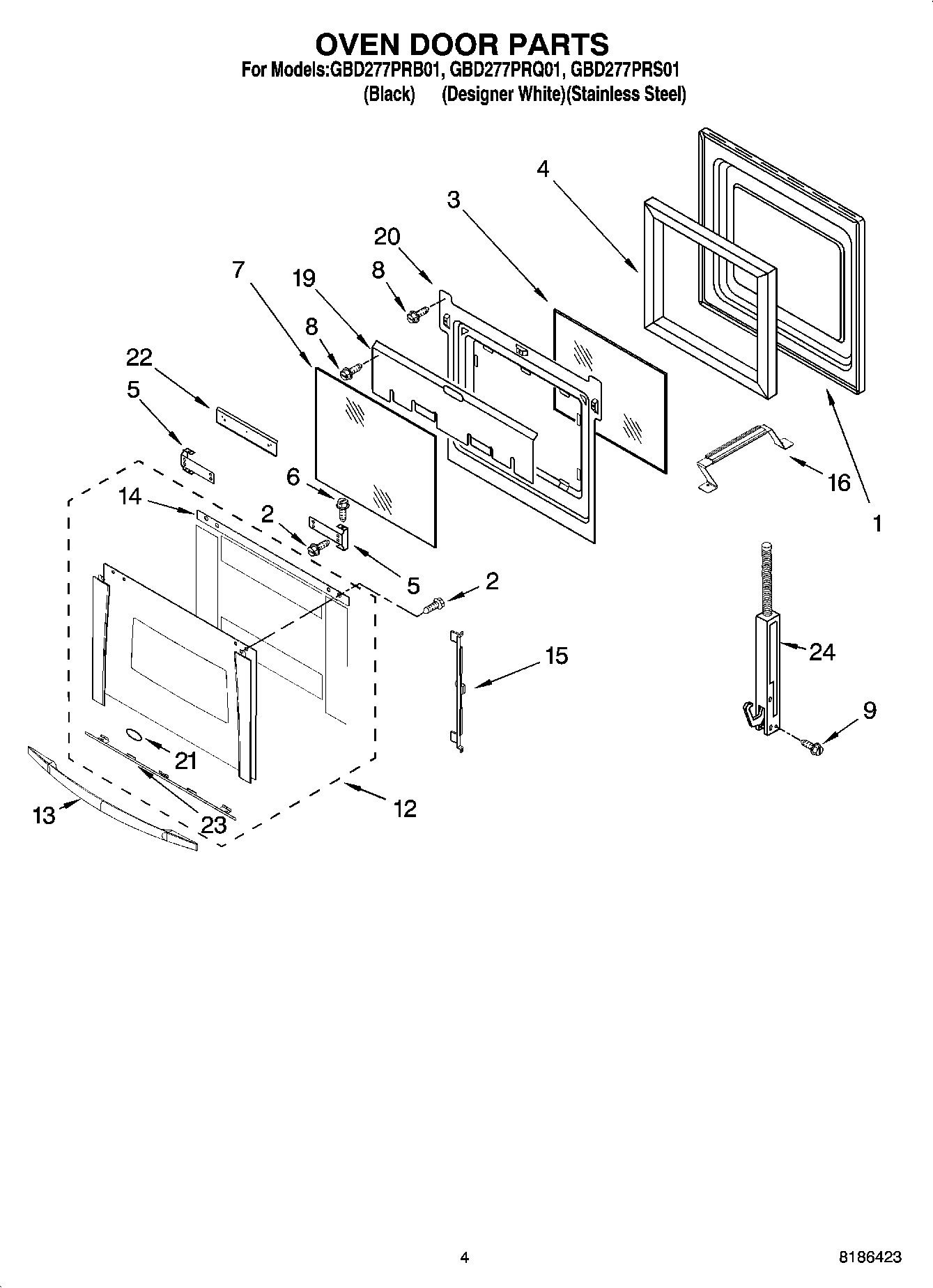

GBD277PRS01 03 – OVEN DOOR PARTS

Products

Position	Product
1	Door Liner
2	Screw
3	WP4449253 Whirlpool Glass Window
4	Insulation, Sides
5	Bracket, Handle
6	WP3400832 Whirlpool Screw
7	Glass, Inner
8	WP4449809 Whirlpool Screw
9	WP4449743 Whirlpool Screw
12	Door Glass, Assy (Upper) (White)
12	Door Glass, Assy (Upper) (S.Steel)
12	Assy., Door Glass (S.Steel Model)
12	Assy., Door Glass (Black Model)
12	Assy., Door Glass (White Model)
12	Door Glass, Assy (Upper) (Black)
13	Handle, Door (S.Steel Model)
13	Handle, Door (White Model)
13	Handle, Door (Black Model)
14	Seal-Door
15	WP9759229 Whirlpool Mounting Bracket
16	Bracket (3rd Glsss)
19	Shield, Heat
20	Retainer, Glass
21	Name Plate
22	Shield, Heat (Bottom)
23	WPL 8302940
23	Trim,
23	Trim, Bottom (Black Model)
24	WP9760576 Whirlpool Door Hinge (Left)
24	HINGE-DOOR
