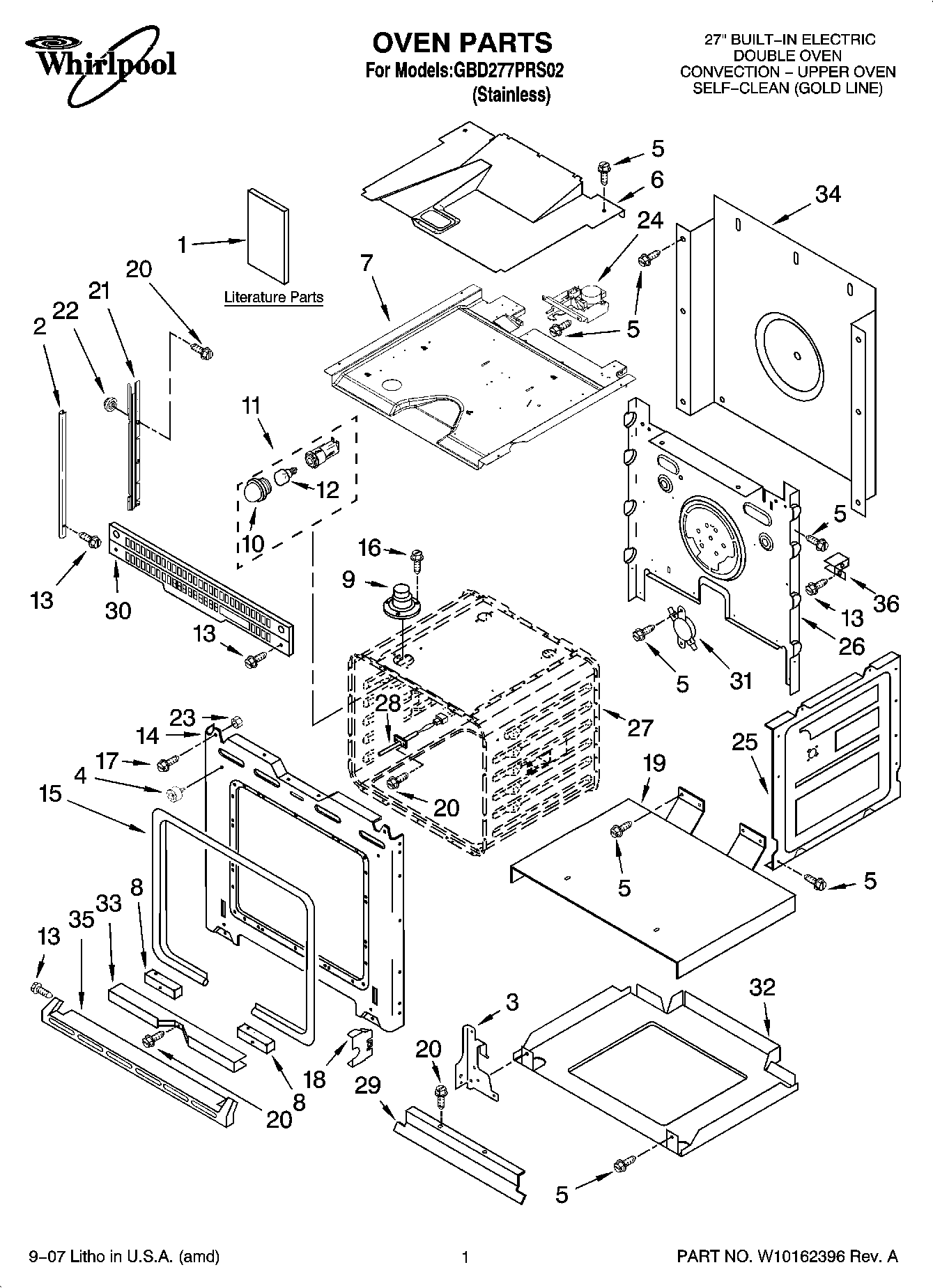

GBD277PRS02 01 – OVEN PARTS

Products

Position	Product
	WPL 4449315
	Following Parts Not Illustrated
	Insulation
	WPL 4450364
1	French
1	Installation Instructions
1	English
1	Safe Cooking Tips
1	Safe Cooking Tips (French)
1	Tech Sheet (Oven)
2	Trim, Side (Left)
2	Trim, Side (Right)
3	WP4455605 Whirlpool Left Hand Hinge
3	WP4455606 Whirlpool Right Hand Hinge
4	W10105790 Whirlpool Bumper
5	WP4449809 Whirlpool Screw
6	Divider, Vent
7	Top, Chassis
8	Spacer, Foam
9	W10861715 Whirlpool Vent Tube
10	Lens, Light (2)
11	WPW10734065 Whirlpool Light
12	WP4173175 Whirlpool Light Bulb
13	WP3400832 Whirlpool Screw
14	Frame, Front
15	WP4455381 Whirlpool Door Gasket
16	SCREW
17	Screw
18	4452152 Whirlpool Oven Mounting Bracket
19	Support, Insulation
20	WP4449154 Whirlpool Screw
21	WP8302793 Whirlpool Mounting Rail
21	Rail, Side (Left)
22	WP4448444 Whirlpool Grommet
23	WP4450118 Whirlpool Nut
24	WP9760889 Whirlpool Door Latch
25	W10782197 Whirlpool Side Panel
26	Back, Chassis
27	Liner, Oven (Not serviceable)
28	WPW10131825 Whirlpool Oven Temperature Sensor
29	Deflector, Vent
30	Vent, Center
31	WP9759242 Whirlpool Thermostat
31	WP9759243 Whirlpool Thermostat
32	Base, Chassis
33	WP4448933 Whirlpool Retainer
34	WP4451747 Whirlpool Rear Cover
35	WPL 8302940
36	WPL 4449845
