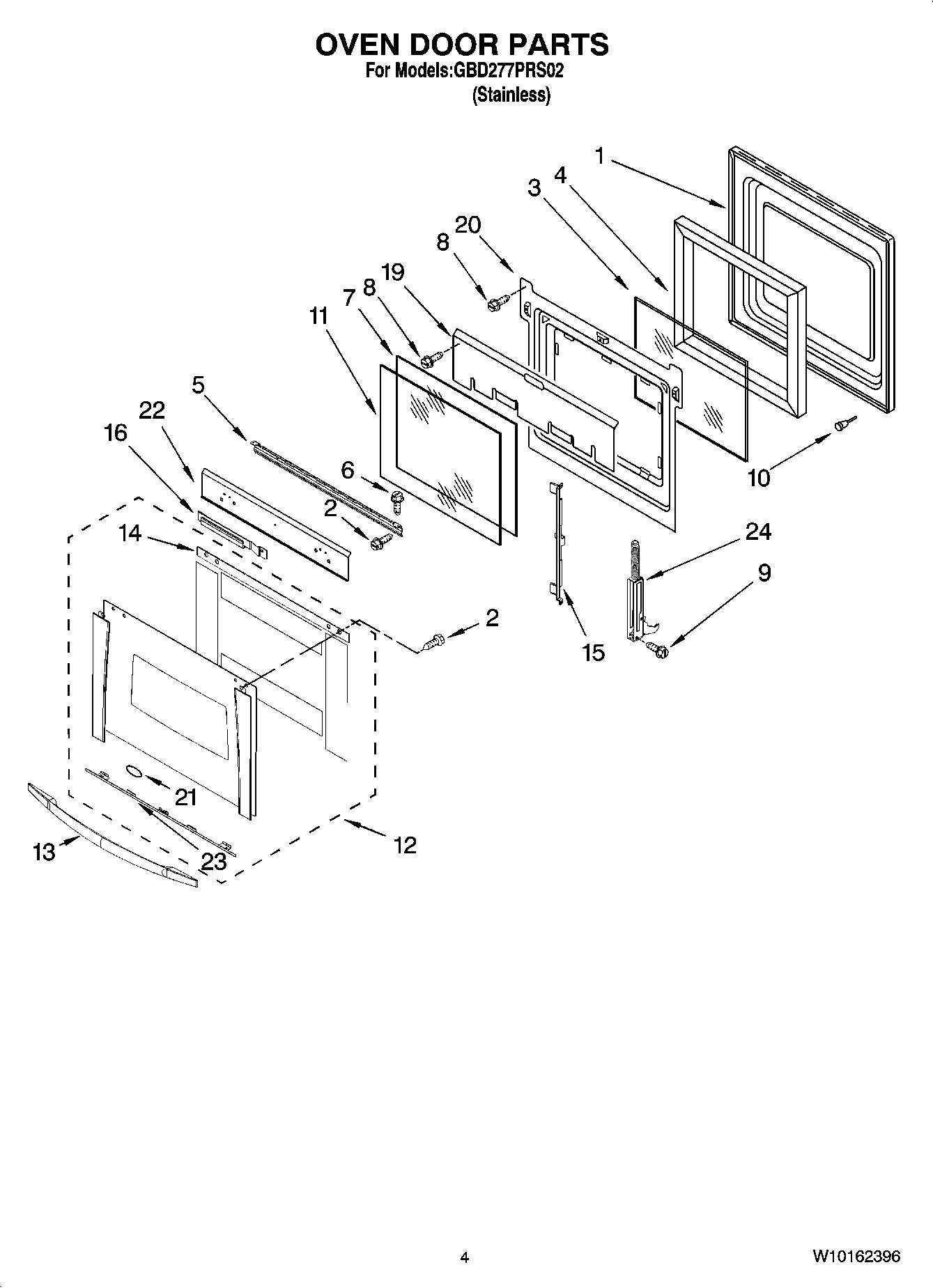

GBD277PRS02 03 – OVEN DOOR PARTS

Products

Position	Product
1	Door Liner
2	Screw
3	WP4449253 Whirlpool Glass Window
4	Insulation, Sides
5	Bracket, Handle
6	WP3400832 Whirlpool Screw
7	Glass, Inner
8	WP4449809 Whirlpool Screw
9	WP4449743 Whirlpool Screw
10	4448520 Whirlpool Oven Bumper
11	WP9759227 Whirlpool Glass Door
12	Assembly, Door Glass (Upper)
12	Assembly, Door Glass (Lower)
13	Handle, Door (S.Steel Model)
14	Seal-Door
15	WP9759229 Whirlpool Mounting Bracket
16	Bracket (3rd Glsss)
19	Shield, Heat
20	Retainer, Glass
21	Name Plate
22	Shield, Heat (Bottom)
23	Clip, Door (Black)
24	HINGE-DOOR
24	WP9760576 Whirlpool Door Hinge (Left)
