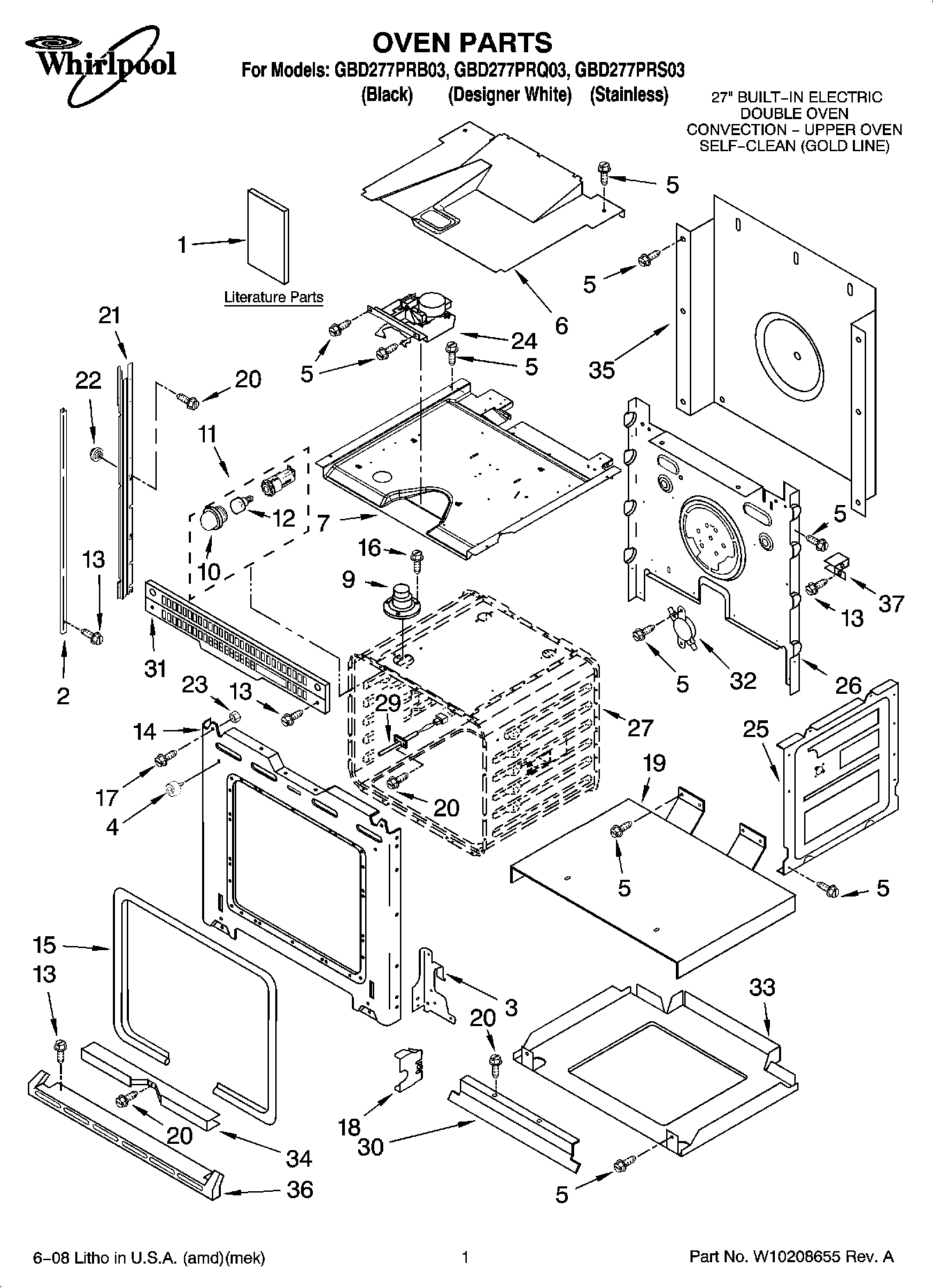

GBD277PRS03 01 – OVEN PARTS

Products

Position	Product
	Insulation
	Following Parts Not Illustrated
	WPL 4449315
	WPL 4450364
1	Safer Cooking Tips (French)
1	SAFER COOKING TIPS (ENGLISH
1	Tech Sheet (Oven)
1	Installation Instructions
1	Owners Manual (English)
1	Owners Manual (French)
2	WPW10339500 Whirlpool Trim
2	WPW10339502 Whirlpool Trim Kit
2	WPW10339499 Whirlpool Trim Assembly
2	Trim, Side Right (White)
2	Trim, Side Left (Stainless)
2	Trim, Side Right (Stainless)
3	WP4455605 Whirlpool Left Hand Hinge
3	WP4455606 Whirlpool Right Hand Hinge
4	W10105790 Whirlpool Bumper
5	WP4449809 Whirlpool Screw
6	Divider, Vent
7	Top, Chassis
9	W10861715 Whirlpool Vent Tube
10	Lens, Light (2)
11	WPW10734065 Whirlpool Light
12	WP4173175 Whirlpool Light Bulb
13	WP3400832 Whirlpool Screw
14	Frame, Front
15	WP4455381 Whirlpool Door Gasket
16	SCREW
17	Screw
18	4452152 Whirlpool Oven Mounting Bracket
19	Support, Insulation
20	WP4449154 Whirlpool Screw
21	WP8302793 Whirlpool Mounting Rail
21	Rail, Side (Left)
22	WP4448444 Whirlpool Grommet
23	WP4450118 Whirlpool Nut
24	WP9760889 Whirlpool Door Latch
25	W10782197 Whirlpool Side Panel
26	Back, Chassis
27	Liner, Oven (Not serviceable)
29	WPW10131825 Whirlpool Oven Temperature Sensor
30	Deflector, Vent
31	Vent, Center
32	WP9759242 Whirlpool Thermostat
32	WP9759243 Whirlpool Thermostat
33	Base, Chassis
34	WP4448933 Whirlpool Retainer
35	WP4451747 Whirlpool Rear Cover
36	Trim, Bottom (Stainless)
36	Trim, Bottom (Black)
36	Trim, Bottom (White)
37	WPL 4449845
