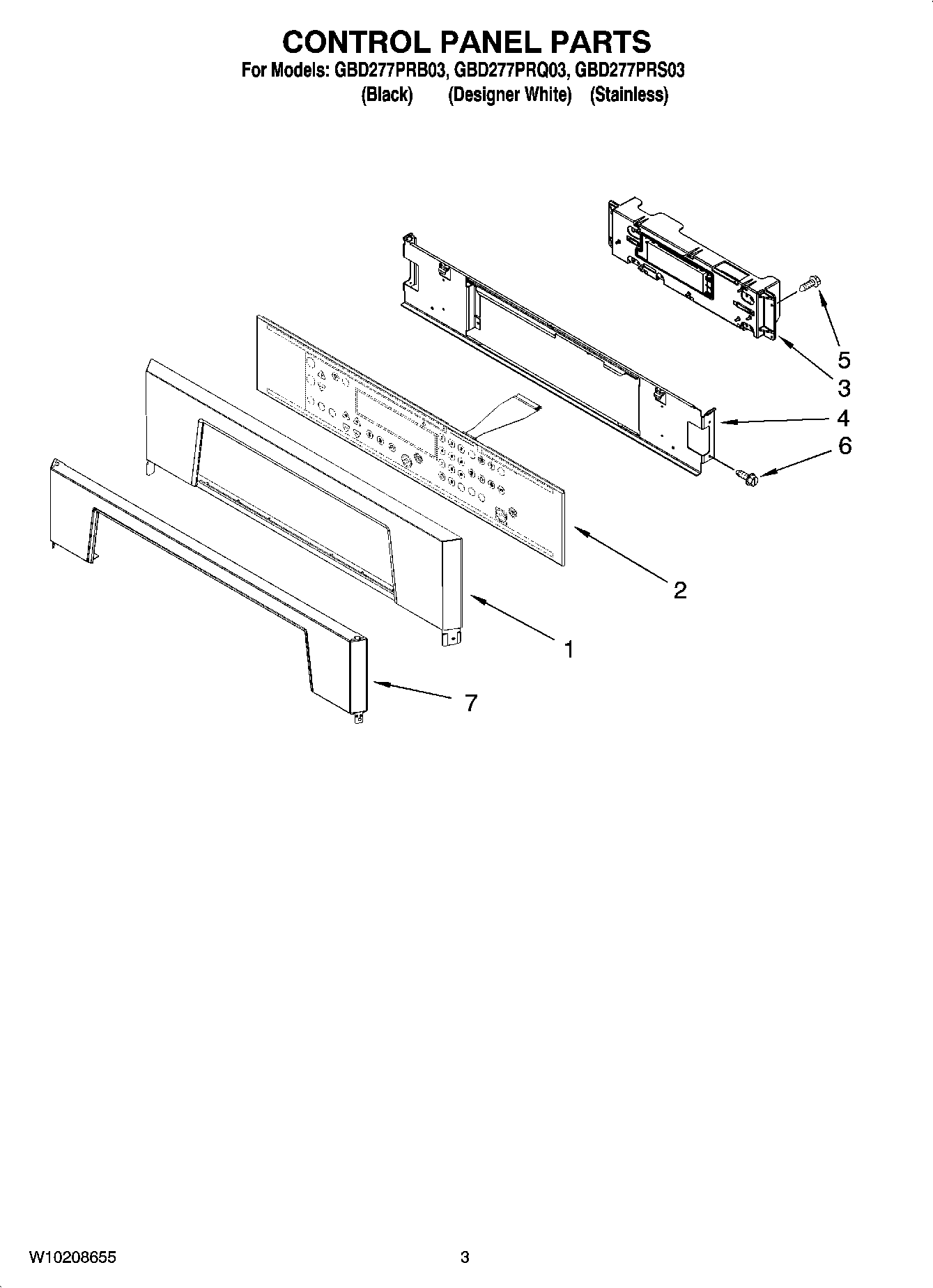

GBD277PRS03 02 – CONTROL PANEL PARTS

Written by

Products

Position	Product
1	WP8302844 Whirlpool Control Panel
1	Control Panel (White Model)
2	Switch Membrane (White)
2	Switch Membrane (Black)
3	Assy, Control
3	Latch, Sister Board
4	Backer, Control Panel
5	WP3400832 Whirlpool Screw
6	WP4449745 Whirlpool Screw
7	Trim, Panel (Use on Stainless model only)
