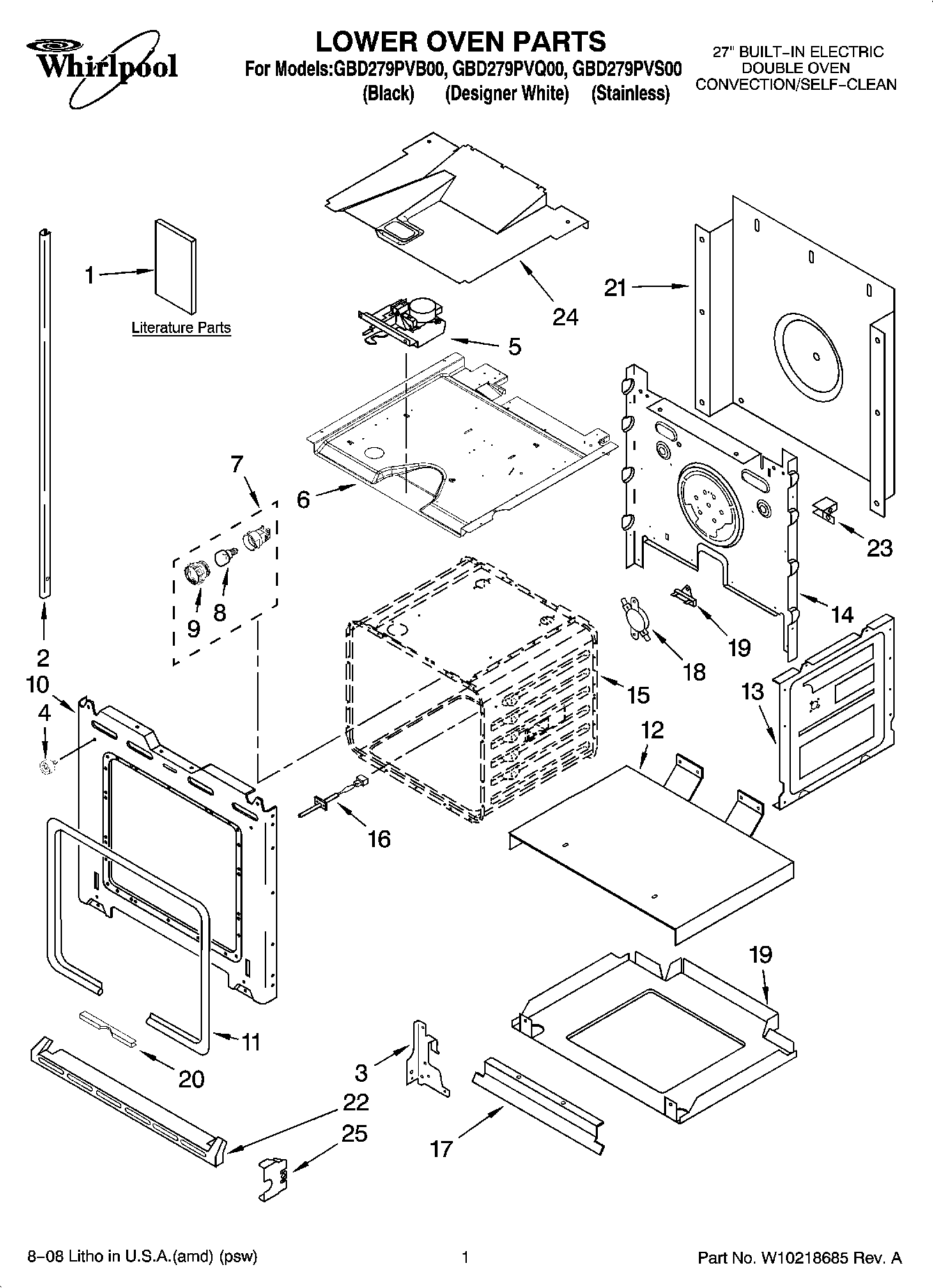

GBD279PVB00 01 – LOWER OVEN PARTS

Products

Position	Product
	WPL 4450364
	Following Parts Not Illustrated
	Insulation
	WPL 4449315
1	Installation Instructions
1	Tech Sheet
1	Guide, Easy Set
1	Safe Cooking Tips
1	Safe Cooking Tips (French)
2	TRIM, SIDELEFT (STAINLESS)
2	Trim, Side Right (Stainless)
2	Trim, Side Right (White)
2	WPW10339499 Whirlpool Trim Assembly
2	WPW10339500 Whirlpool Trim
2	WPW10339502 Whirlpool Trim Kit
3	WP4455606 Whirlpool Right Hand Hinge
3	WP4455605 Whirlpool Left Hand Hinge
4	W10105790 Whirlpool Bumper
5	WP9760889 Whirlpool Door Latch
6	Top, Chassis
7	WPW10307114 Whirlpool Light
8	BULB-LIGHT
9	W10169756 Whirlpool Light Lens
10	Frame, Front
10	Screw
10	WP4450118 Whirlpool Nut
11	WP4455381 Whirlpool Door Gasket
12	Support, Insulation
13	W10782197 Whirlpool Side Panel
14	Back, Chassis
15	Liner, Oven (Not serviceable)
16	WPW10131825 Whirlpool Oven Temperature Sensor
17	Deflector, Vent
18	WP9759242 Whirlpool Thermostat
19	Base, Chassis
20	WP4449154 Whirlpool Screw
20	WP4448933 Whirlpool Retainer
21	WP4451747 Whirlpool Rear Cover
22	WP3400832 Whirlpool Screw
22	Trim, Bottom Vent (Black)
22	Trim, Bottom Vent (White)
22	Trim, Bottom Vent (Stainless)
23	WP4449809 Whirlpool Screw
23	WPL 4449845
24	Divider, Vent
25	4452152 Whirlpool Oven Mounting Bracket
