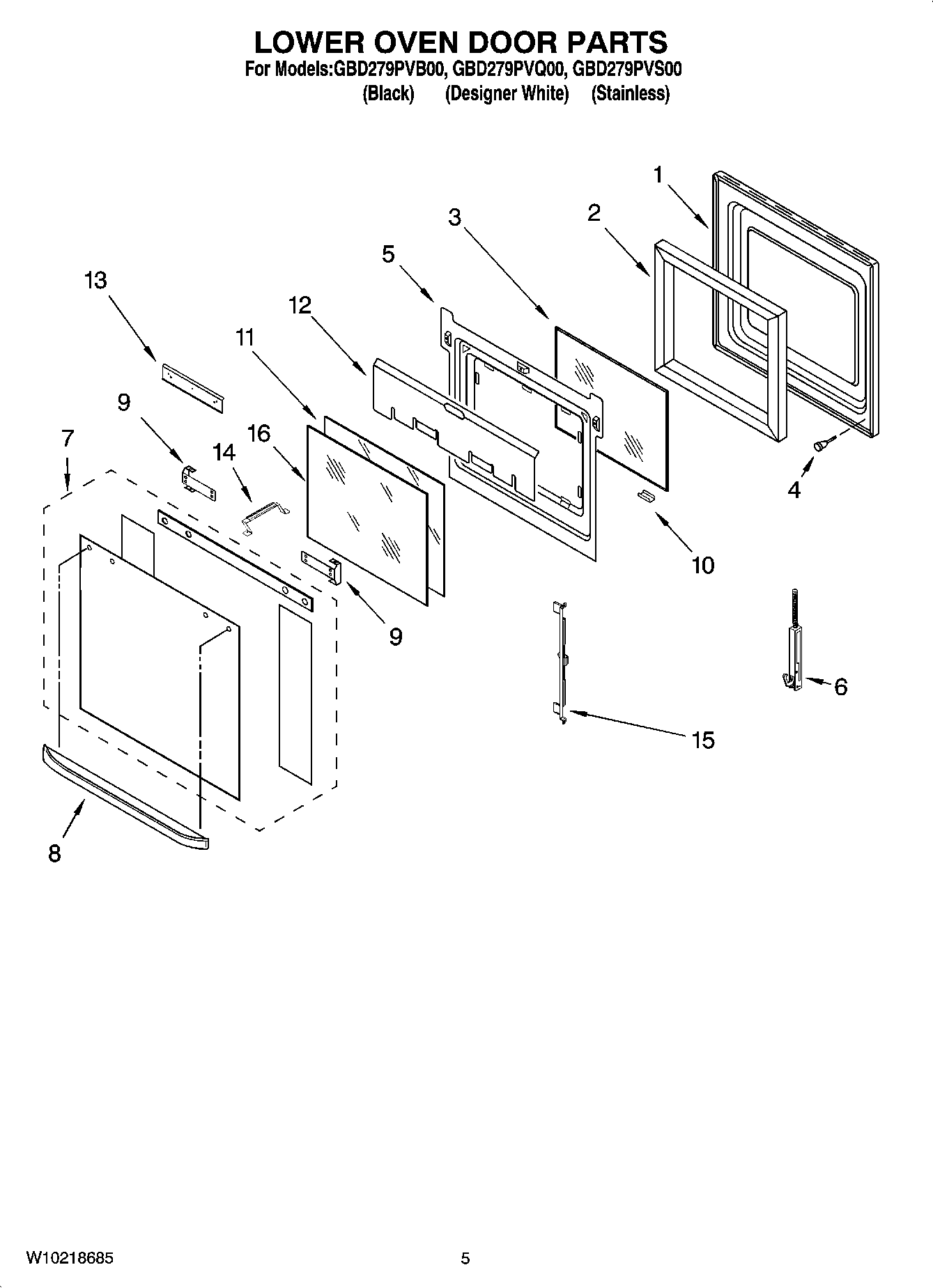

GBD279PVB00 03 – LOWER OVEN DOOR PARTS

Products

Position	Product
1	Door Liner
2	Insulation, Sides
3	WP4449253 Whirlpool Glass Window
4	4448520 Whirlpool Oven Bumper
5	WP4449809 Whirlpool Screw
5	Retainer, Glass
6	Hinge, Door (For Stainless Model Only) (Right)
6	Hinge, Door (For Stainless Model Only) (Left)
6	WP9760572 Whirlpool Door Hinge
6	WP9760571 Whirlpool Door Hinge
6	WP4449743 Whirlpool Screw
7	Assembly, Door Glass (Black)
7	Assembly, Door Glass (Stainless)
7	Assembly, Door Glass (White)
8	WPW10169800 Whirlpool Door Handle
8	W10169802 Whirlpool Microwave Door Handle
8	Door Handle (White)
9	4455803 Whirlpool Oven Bracket
9	Bracket, Handle (L.Hand)
10	Retainer, Clip (Stainless)
10	Clip, Retainer (Black Model)
10	Clip, Retainer (White Model)
11	Glass, Inner
12	Shield, Heat
13	Shield, Heat (Bottom)
14	Bracket (3rd Glsss)
15	WP9759229 Whirlpool Mounting Bracket
16	WP9759227 Whirlpool Glass Door
