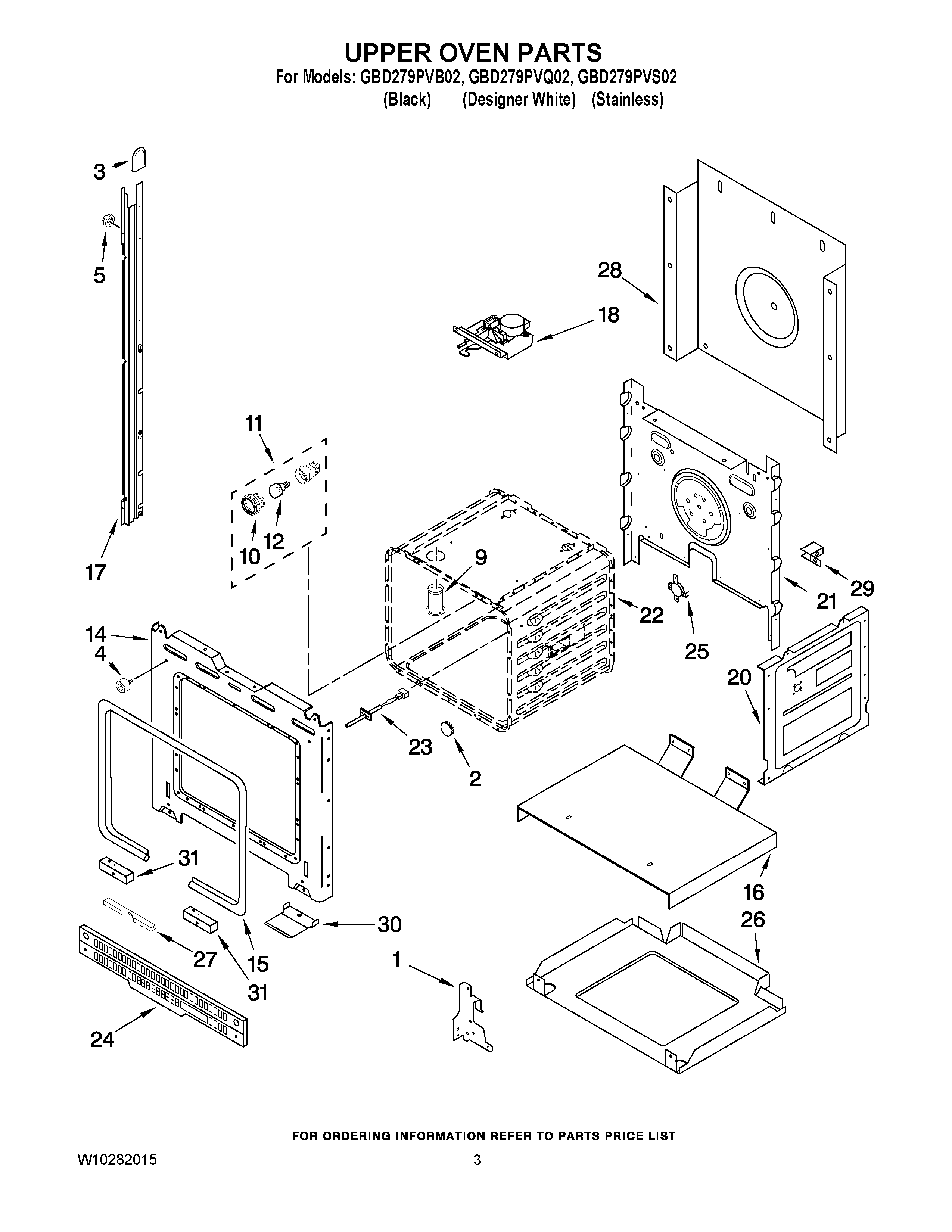

GBD279PVB02 02 – UPPER OVEN PARTS

GBD279PVB02 02 – UPPER OVEN PARTS

Written by

in

GBD279PVB02 02 – UPPER OVEN PARTS

Products

PositionProduct
NIWPL 4450364
NIWPL 4449315
1WP4455605 Whirlpool Left Hand Hinge
1WP4455606 Whirlpool Right Hand Hinge
2Plug, Button
3Cap, Spacer
4W10105790 Whirlpool Bumper
5WP4448444 Whirlpool Grommet
9W10861715 Whirlpool Vent Tube
10W10169756 Whirlpool Light Lens
11WPW10307114 Whirlpool Light
12BULB-LIGHT
14Screw
14Frame, Front
15WP4455381 Whirlpool Door Gasket
16Support, Insulation
17WP8302793 Whirlpool Mounting Rail
17Rail, Side (Left)
18WP9760889 Whirlpool Door Latch
20W10782197 Whirlpool Side Panel
21Back, Chassis
22CABINET (NOT A SERVICEABLE PART)
23WPW10131825 Whirlpool Oven Temperature Sensor
24Vent, Center
25WP9759242 Whirlpool Thermostat
26Base, Chassis
27WP4449154 Whirlpool Screw
27WP4448933 Whirlpool Retainer
28WP4451747 Whirlpool Rear Cover
29WPL 4449845
29WP4449809 Whirlpool Screw
30W10145009 Whirlpool Vent Deflector
304455807 Whirlpool Oven Vent Deflector
31Spacer, Foam
