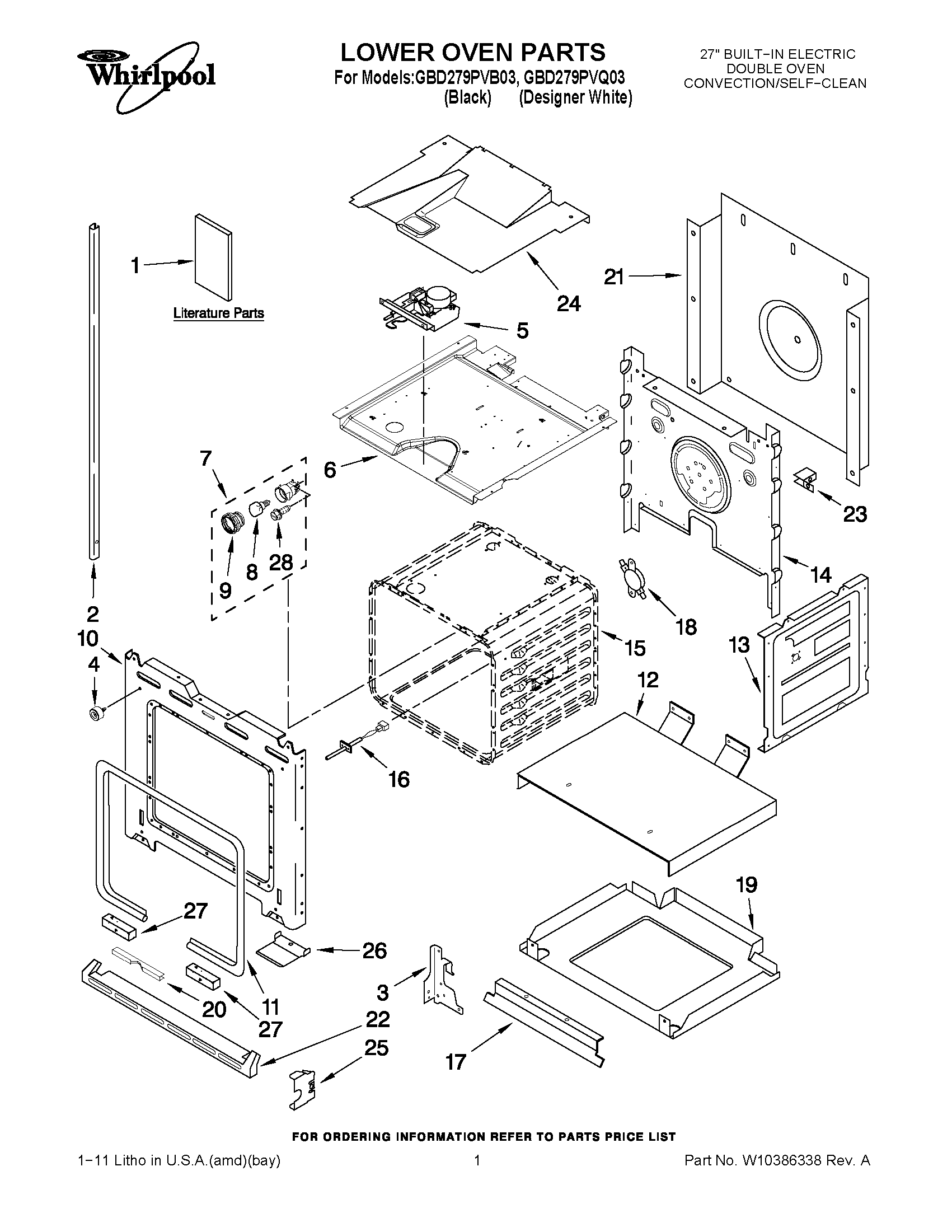

GBD279PVQ03 01 – LOWER OVEN PARTS

GBD279PVQ03 01 – LOWER OVEN PARTS

Written by

in

GBD279PVQ03 01 – LOWER OVEN PARTS

Products

PositionProduct
NIWPL 4449315
NIWPL 4450364
1Installation Instructions
1INSTALLATION INSTRUCTIONS (BI-LINGUAL)
1Tech Sheet
1Installation Instructions (Bottom Trim)
1Guide, Easy Set
1SAFER COOKING TIPS (ENGLISH
1Safer Cooking Tips (French)
2WPW10339502 Whirlpool Trim Kit
2WPW10339500 Whirlpool Trim
2TRIM, SIDE RIGHT (WHITE)
2WPW10339499 Whirlpool Trim Assembly
3WP4455606 Whirlpool Right Hand Hinge
3WP4455605 Whirlpool Left Hand Hinge
4W10105790 Whirlpool Bumper
5WPW10195934 Whirlpool Door Latch
6Top, Chassis
7WPW10307114 Whirlpool Light
8BULB-LIGHT
9W10169756 Whirlpool Light Lens
10Frame, Front
11WP4455381 Whirlpool Door Gasket
12Support, Insulation
13W10782197 Whirlpool Side Panel
14Back, Chassis
15CABINET (NOT A SERVICEABLE PART)
16WPW10131825 Whirlpool Oven Temperature Sensor
17Deflector, Vent
18WP9759242 Whirlpool Thermostat
19Base, Chassis
20WP4448933 Whirlpool Retainer
21WP4451747 Whirlpool Rear Cover
22Trim, Bottom Vent (White)
22Trim, Bottom Vent (Black)
23WPL 4449845
24Divider, Vent
254452152 Whirlpool Oven Mounting Bracket
26W10145009 Whirlpool Vent Deflector
264455807 Whirlpool Oven Vent Deflector
27Spacer, Foam
284449748 Whirlpool Oven Screw
