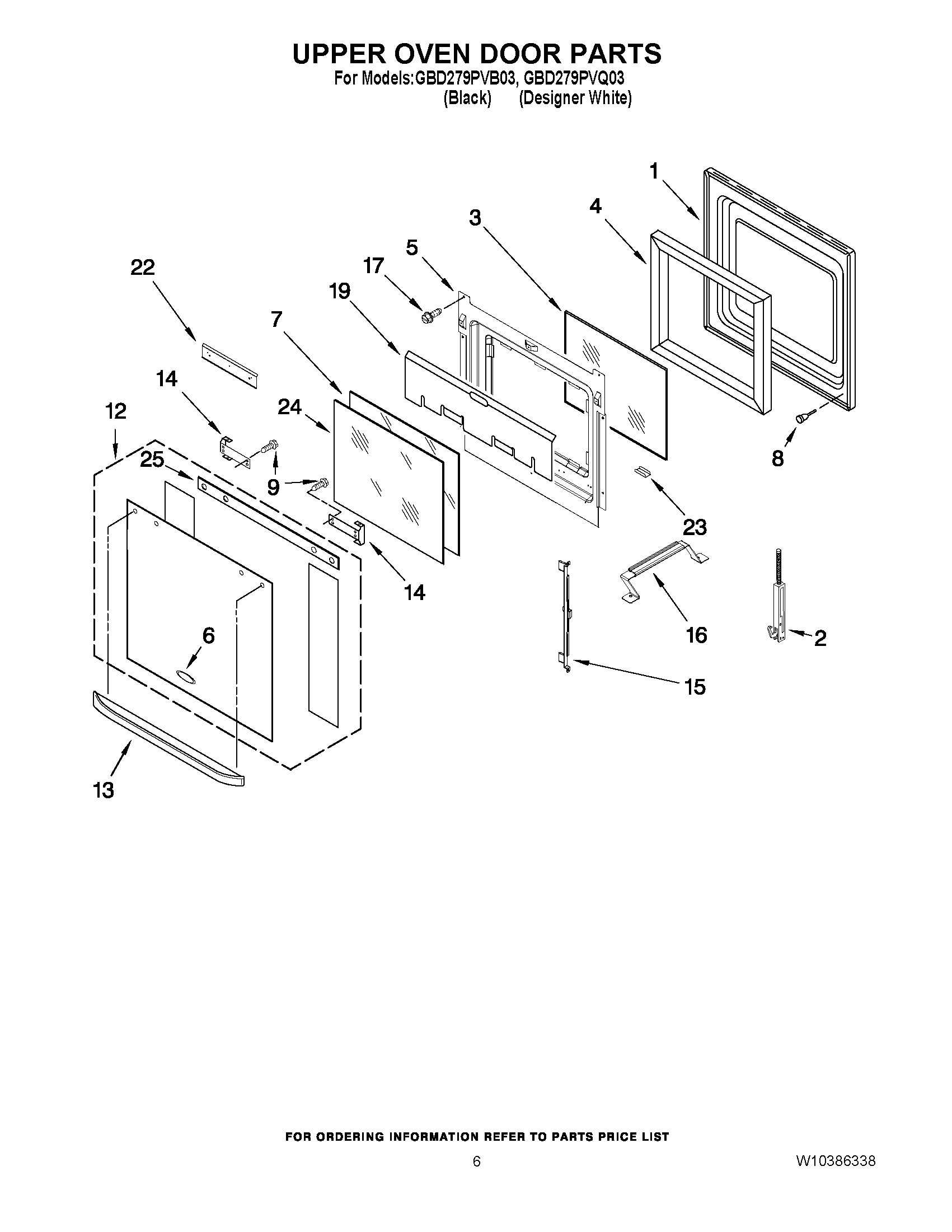

GBD279PVQ03 04 – UPPER OVEN DOOR PARTS

Products

Position	Product
1	Door Liner
2	WP9760571 Whirlpool Door Hinge
2	WP9760572 Whirlpool Door Hinge
3	WP4449253 Whirlpool Glass Window
4	Insulation, Sides
5	Retainer, Glass
6	NAMEPLATE
7	Glass, Inner
8	4448520 Whirlpool Oven Bumper
9	Screw
12	Assembly, Door Glass (White)
12	Assembly, Door Glass (Black)
13	Door Handle (White)
13	W10169802 Whirlpool Microwave Door Handle
14	Bracket, Handle (L.Hand)
14	4455803 Whirlpool Oven Bracket
15	WP9759229 Whirlpool Mounting Bracket
16	Bracket (3rd Glsss)
17	WPW10292297 Whirlpool Screw
19	Shield, Heat
22	Shield, Heat (Bottom)
23	RETAINER, CLIP (WHITE)
23	RETAINER, CLIP (BLACK)
24	WP9759227 Whirlpool Glass Door
25	Seal, Top
