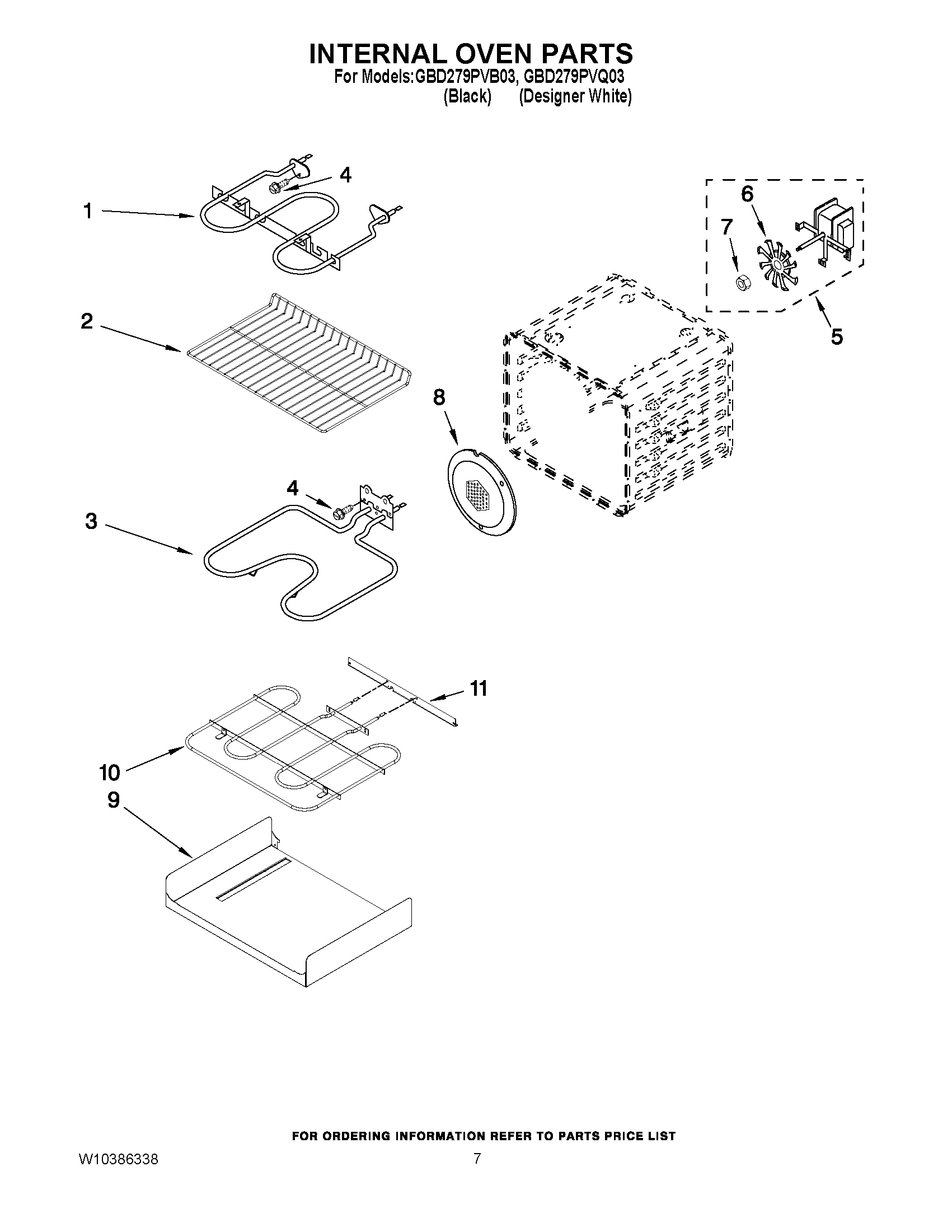

GBD279PVQ03 05 – INTERNAL OVEN PARTS

Written by

Products

Position	Product
1	WPW10207400 Whirlpool Broil Element
2	Rack, Oven
3	ELMNT-BAKE
4	WP4449154 Whirlpool Screw
5	W10794022 Whirlpool Oven Cooktop Fan Motor
6	W10758272 Whirlpool Convection Fan
7	WPW10116349 Whirlpool Nut
8	WPW10160821 Whirlpool Fan Cover
9	Tray, Hidden Bake
10	4450039 Whirlpool Oven Access Cover
11	WP9760769 Whirlpool Element Assembly
