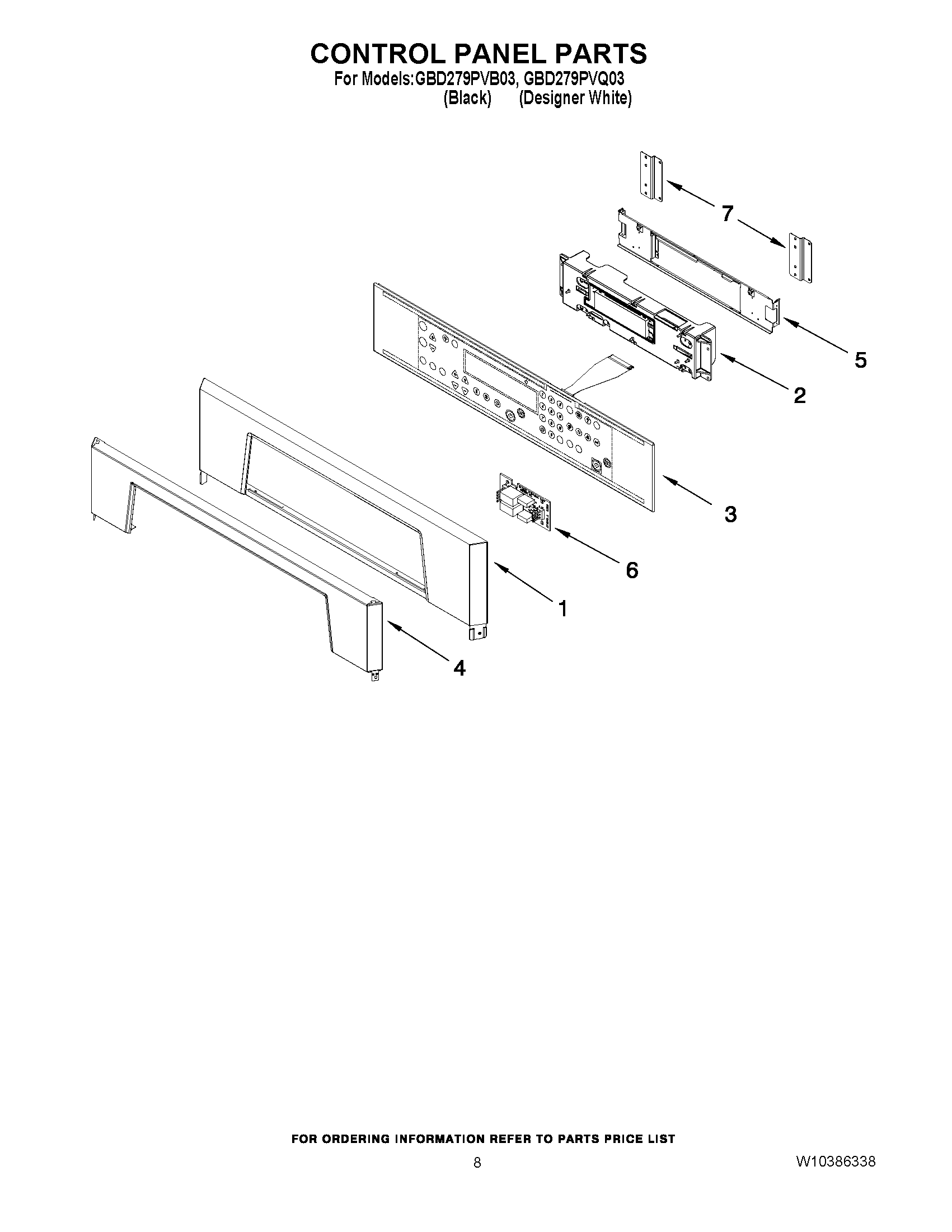

GBD279PVQ03 06 – CONTROL PANEL PARTS

GBD279PVQ03 06 – CONTROL PANEL PARTS

Written by

in

GBD279PVQ03 06 – CONTROL PANEL PARTS

Products

PositionProduct
1WP8302844 Whirlpool Control Panel
1Control Panel (White Model)
2Control, Electronic
3W10172118 Whirlpool Membrane Switch
3W10172119 Whirlpool Membrane Switch
4Trim, Control Panel (White)
4Trim, Control Panel (Black)
5Backer, Control Panel
6Latch, Sister Board
7BRACKET SISTER BOARD
