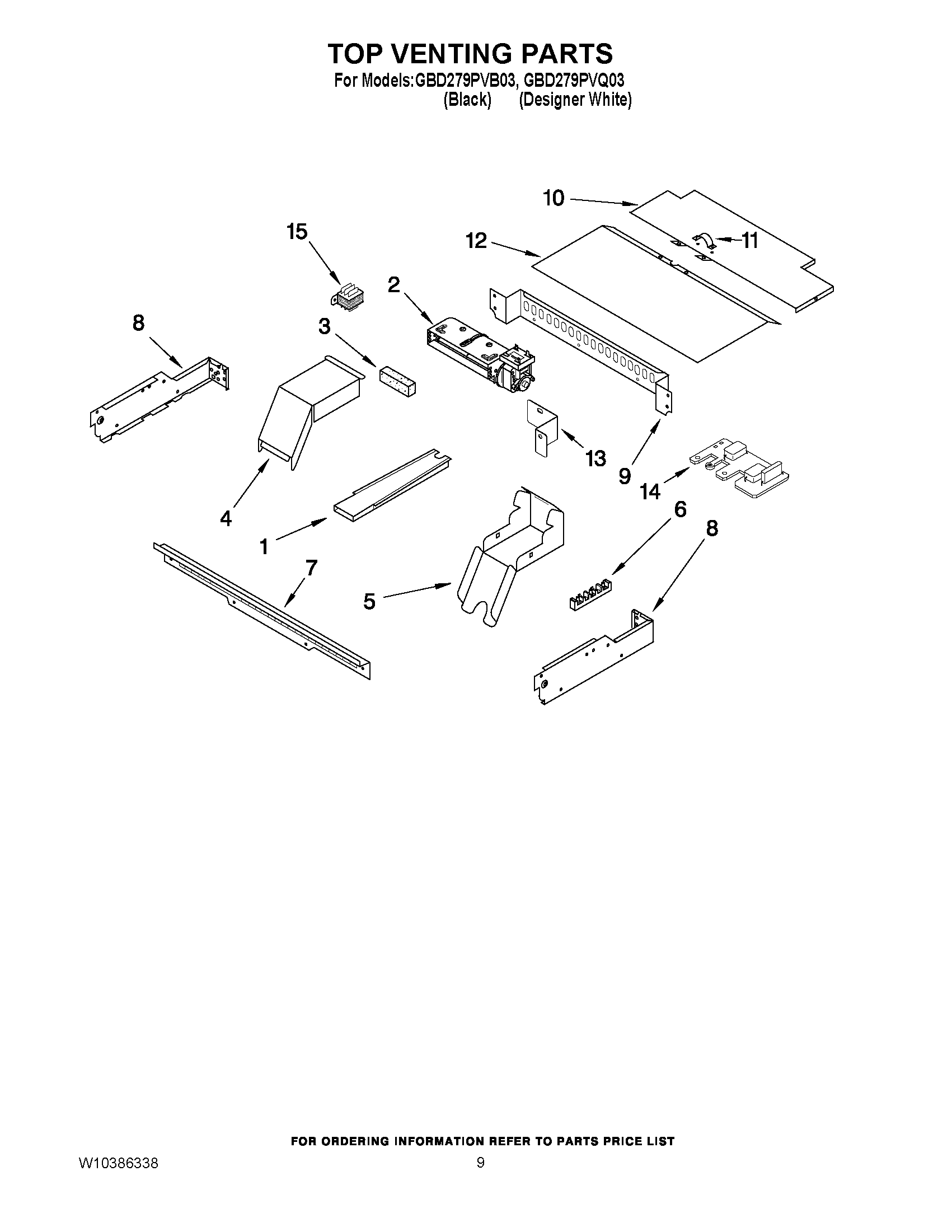

GBD279PVQ03 07 – TOP VENTING PARTS

GBD279PVQ03 07 – TOP VENTING PARTS

Written by

in

GBD279PVQ03 07 – TOP VENTING PARTS

Products

PositionProduct
14451759 Whirlpool Oven Exhaust Vent
1Screw
2WPW10176670 Whirlpool Blower
24455191 Whirlpool Oven Mounting Plate
2WPW10016550 Whirlpool Blower Cooling Fan
3W10491987 Whirlpool Foam Seal
44455178 Whirlpool Oven Top Elbow
54455177 Whirlpool Oven Bottom Elbow
6BLOCK, TERMINAL
7VENT, CONTROL PANEL
8W10755214 Whirlpool Side Complete
8W10790240 Whirlpool Side Assembly Complete
9Back, Control
10Cover, Top Rear
114448664 Whirlpool Oven Mounting Bracket
12Cover, Top Front
138302390 Whirlpool Support Bracket
14WP4451985 Whirlpool Noise Filter Board
15Transformer
