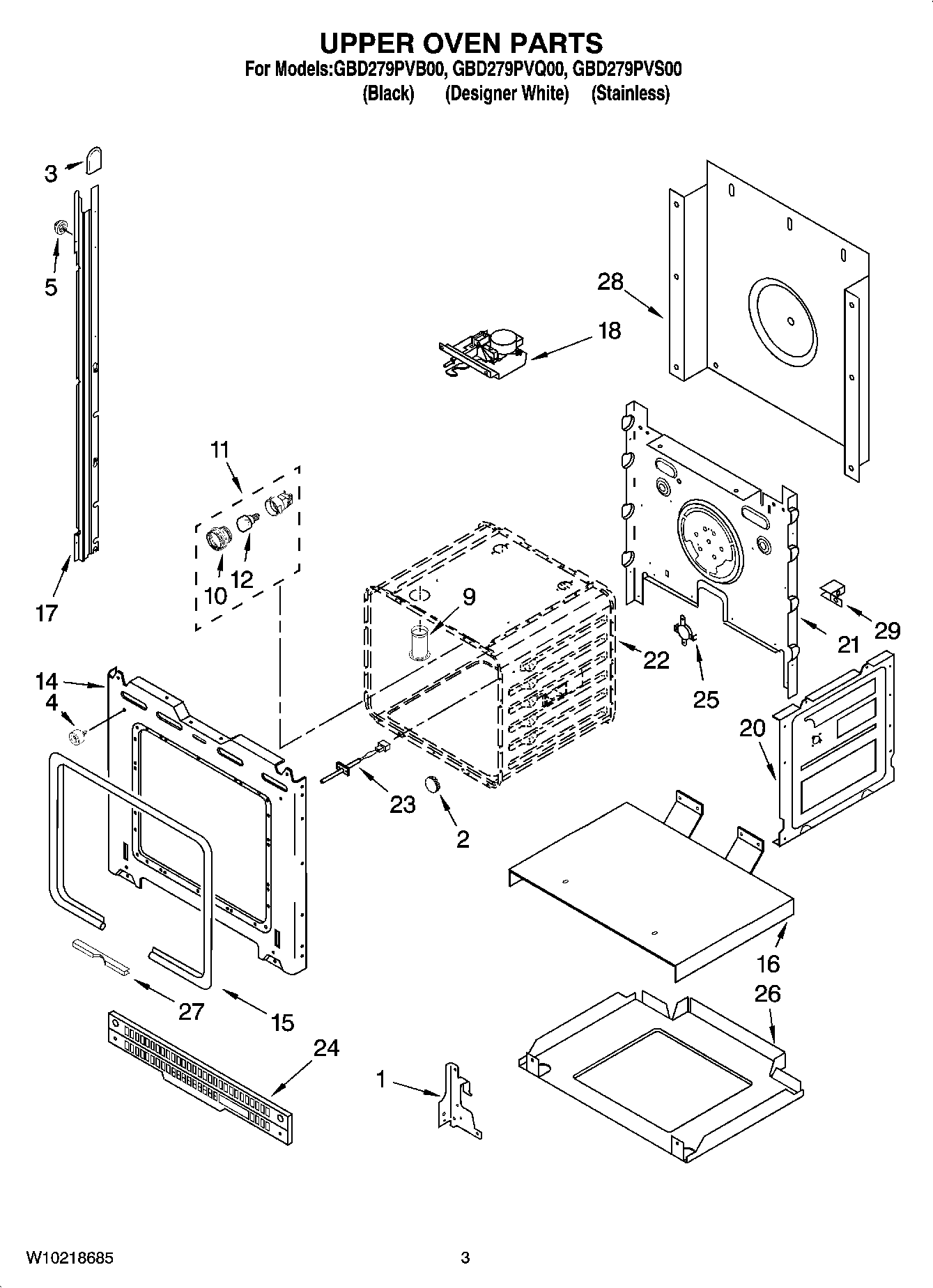

GBD279PVS00 02 – UPPER OVEN PARTS

Products

Position	Product
	Insulation
	WPL 4450364
	WPL 4449315
	Following Parts Not Illustrated
1	WP4455606 Whirlpool Right Hand Hinge
1	WP4455605 Whirlpool Left Hand Hinge
2	Plug, Button
3	Cap, Spacer
4	W10105790 Whirlpool Bumper
5	WP4448444 Whirlpool Grommet
9	W10861715 Whirlpool Vent Tube
10	W10169756 Whirlpool Light Lens
11	WPW10307114 Whirlpool Light
12	BULB-LIGHT
14	Frame, Front
14	Screw
15	WP4455381 Whirlpool Door Gasket
16	Support, Insulation
17	WP8302793 Whirlpool Mounting Rail
17	Rail, Side (Left)
18	WP9760889 Whirlpool Door Latch
20	W10782197 Whirlpool Side Panel
21	Back, Chassis
22	Liner, Oven (Not serviceable)
23	WPW10131825 Whirlpool Oven Temperature Sensor
24	Vent, Center
25	WP9759242 Whirlpool Thermostat
26	Base, Chassis
27	WP4449154 Whirlpool Screw
27	WP4448933 Whirlpool Retainer
28	WP4451747 Whirlpool Rear Cover
29	WPL 4449845
29	WP4449809 Whirlpool Screw
