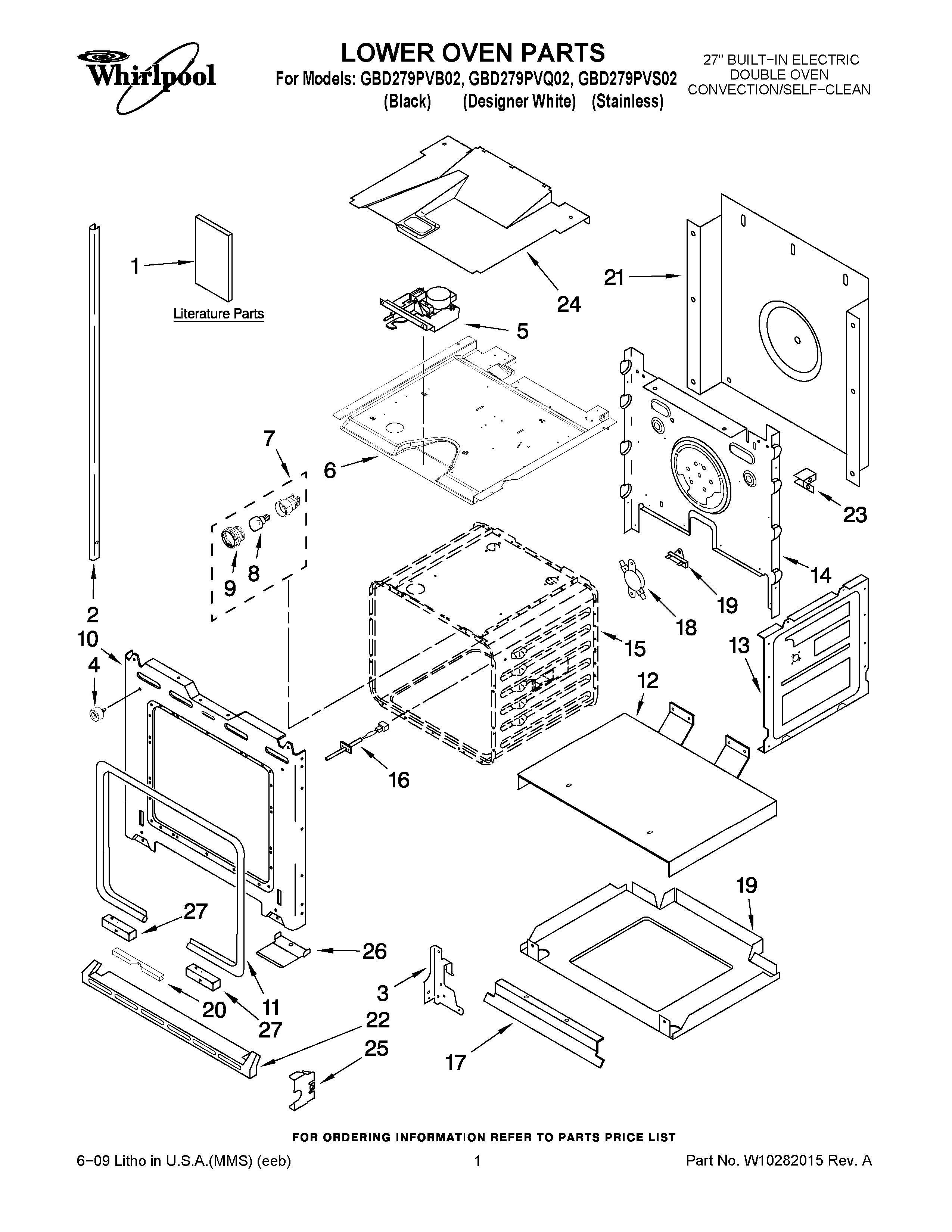

GBD279PVS02 01 – LOWER OVEN PARTS

Products

Position	Product
NI	WPL 4449315
1	Installation Instructions (Bottom Trim)
1	Installation Instructions
1	Guide, Easy Set
1	Safer Cooking Tips (French)
1	SAFER COOKING TIPS (ENGLISH
1	Tech Sheet
1	INSTALLATION INSTRUCTIONS (BI-LINGUAL)
2	WPW10339499 Whirlpool Trim Assembly
2	Trim, Side Right (Stainless)
2	WPW10339500 Whirlpool Trim
2	TRIM, SIDELEFT (STAINLESS)
2	Trim, Side Right (White)
2	WPW10339502 Whirlpool Trim Kit
3	WP4455606 Whirlpool Right Hand Hinge
3	WP4455605 Whirlpool Left Hand Hinge
4	W10105790 Whirlpool Bumper
5	WP9760889 Whirlpool Door Latch
6	Top, Chassis
7	WPW10307114 Whirlpool Light
8	BULB-LIGHT
9	W10169756 Whirlpool Light Lens
10	Frame, Front
10	Screw
10	WP4450118 Whirlpool Nut
11	WP4455381 Whirlpool Door Gasket
12	Support, Insulation
13	W10782197 Whirlpool Side Panel
14	Back, Chassis
15	CABINET (NOT A SERVICEABLE PART)
16	WPW10131825 Whirlpool Oven Temperature Sensor
17	Deflector, Vent
18	WP9759242 Whirlpool Thermostat
19	Base, Chassis
20	WP4448933 Whirlpool Retainer
20	WP4449154 Whirlpool Screw
21	WP4451747 Whirlpool Rear Cover
22	Trim, Bottom Vent (Black)
22	Trim, Bottom Vent (Stainless)
22	Trim, Bottom Vent (White)
22	WP3400832 Whirlpool Screw
23	WP4449809 Whirlpool Screw
23	WPL 4449845
24	Divider, Vent
25	4452152 Whirlpool Oven Mounting Bracket
26	4455807 Whirlpool Oven Vent Deflector
26	W10145009 Whirlpool Vent Deflector
27	Spacer, Foam
