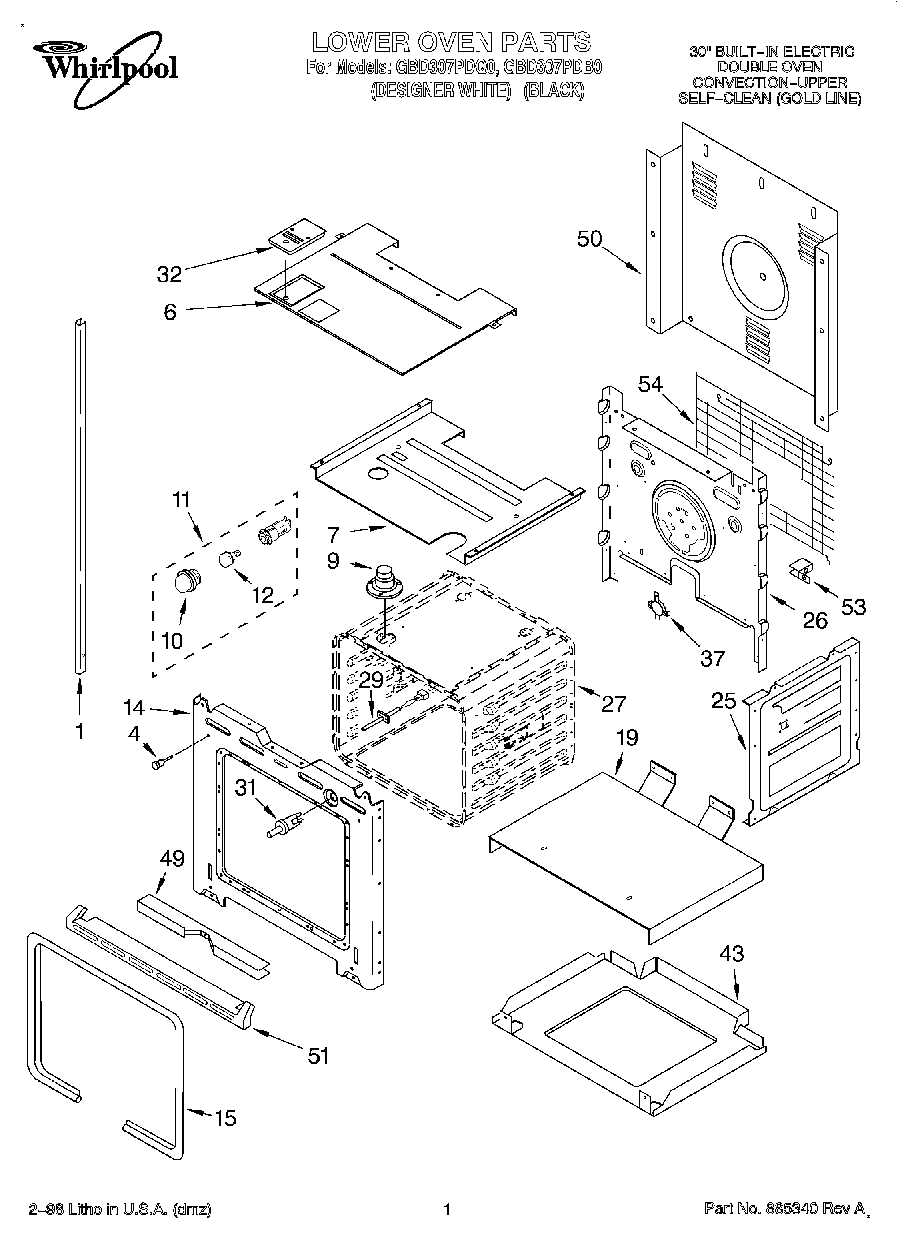

GBD307PDB0 01 – LOWER OVEN

Products

Position	Product
1	Trim, Side (LH Black)
1	Trim, Side (Left Hand)) (White Model)
1	WP8281236 Whirlpool Screw
1	Trim, Side (Right Hand) (White Model)
1	Trim, Side (RH Black)
4	4448520 Whirlpool Oven Bumper
6	Divider, Vent
7	Partition
9	Tube, Vent
10	Lens, Light
11	WPW10734065 Whirlpool Light
12	WP4173175 Whirlpool Light Bulb
14	Screw
14	WP4450118 Whirlpool Nut
14	Frame, Front
15	W11675844 Whirlpool Oven Gasket
19	Support, Insulation
25	Side, Chassis (R.H. & L.H.)
26	Back, Chassis
27	Liner, Oven (Not a Serviceable Part)
29	Sensor
31	Switch, Door
32	Vent Box Assy
37	WP4450249 Whirlpool Thermostat
43	Base, Chassis
49	WP4448933 Whirlpool Retainer
49	WP4449154 Whirlpool Screw
50	Cover, Back
51	Trim, Bottom (Screw)
51	WPL 4448477
51	WPL 4448478
53	WPL 4449845
54	Spacer, Harness
54	WPL 4450365
54	W11684730 Whirlpool Insulation
54	WP4449809 Whirlpool Screw
