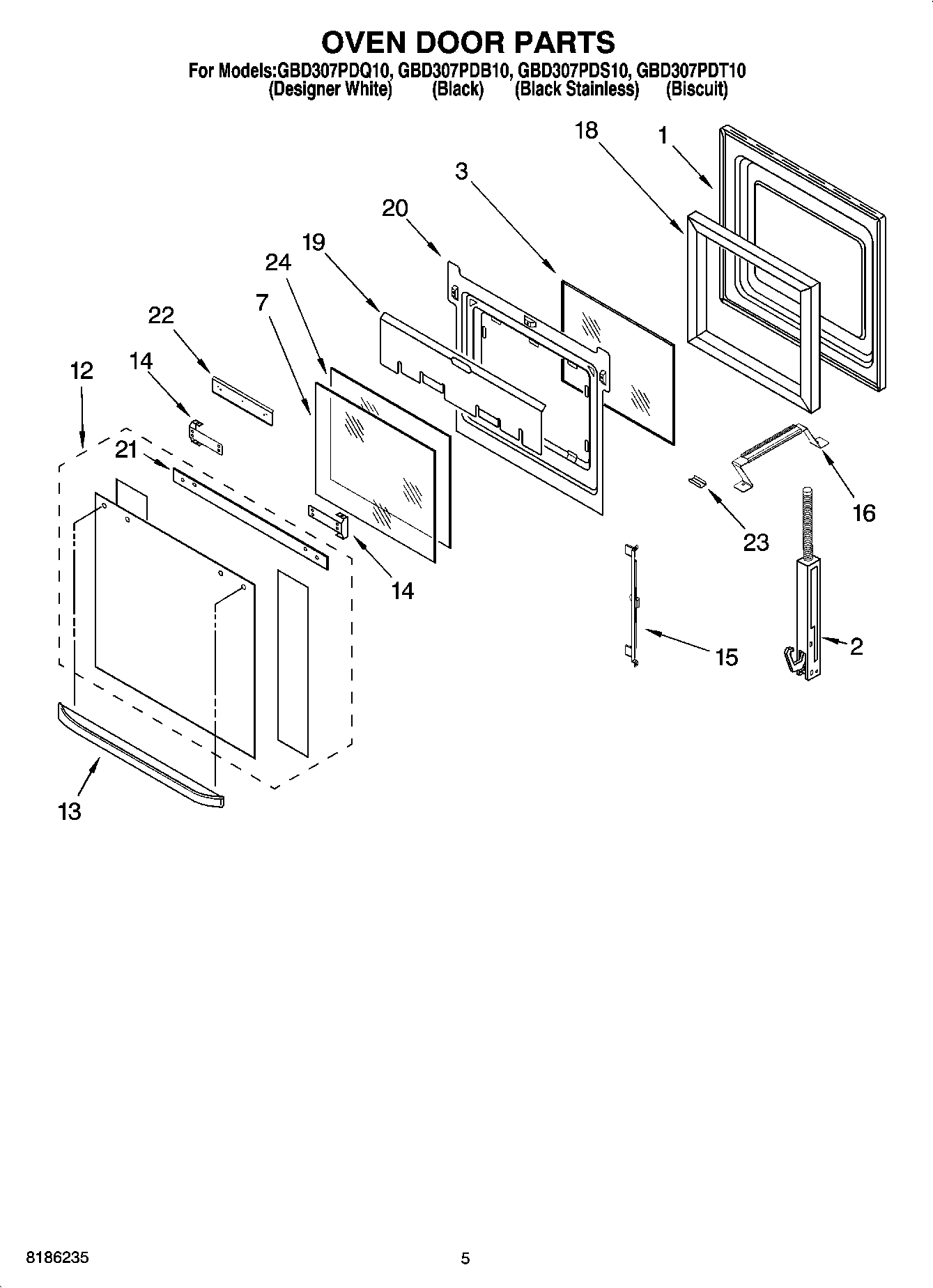

GBD307PDB10 03 – OVEN DOOR PARTS

Products

Position	Product
1	WP9759413 Whirlpool Door Liner
2	WP9760571 Whirlpool Door Hinge
2	WP9760572 Whirlpool Door Hinge
2	Hinge, Door (R.Side)
2	WP4449743 Whirlpool Screw
2	HINGE-DOOR LH/SS DOOR SPRING
3	WP4449259 Whirlpool Glass Window
7	WP9759225 Whirlpool Inner Door Glass
12	WP9759641 Whirlpool Outer Door Glass
12	WP9759074 Whirlpool Outer Door Glass
12	Door Glass (Biscuit)
12	Door Glass (White Model)
13	Door Handle (White Model)
13	Door Handle (Black Model)
13	Door Handle (Biscuit)
14	Screw
14	Bracket, Handle
15	WP9759229 Whirlpool Mounting Bracket
16	Bracket (3rd Glsss)
18	WP4451722 Whirlpool Door Insulation Assembly
19	Shield, Heat
20	WP4457132 Whirlpool Retainer
20	WP4449809 Whirlpool Screw
21	Seal, Door Top
22	4457114 Whirlpool Oven Heat Shield
23	Clip, Retainer (Black Model)
23	Clip, Retainer (White Model)
24	Glass, Inner
