GBD307PDB3 02 – UPPER OVEN

GBD307PDB3 02 – UPPER OVEN

Written by

in

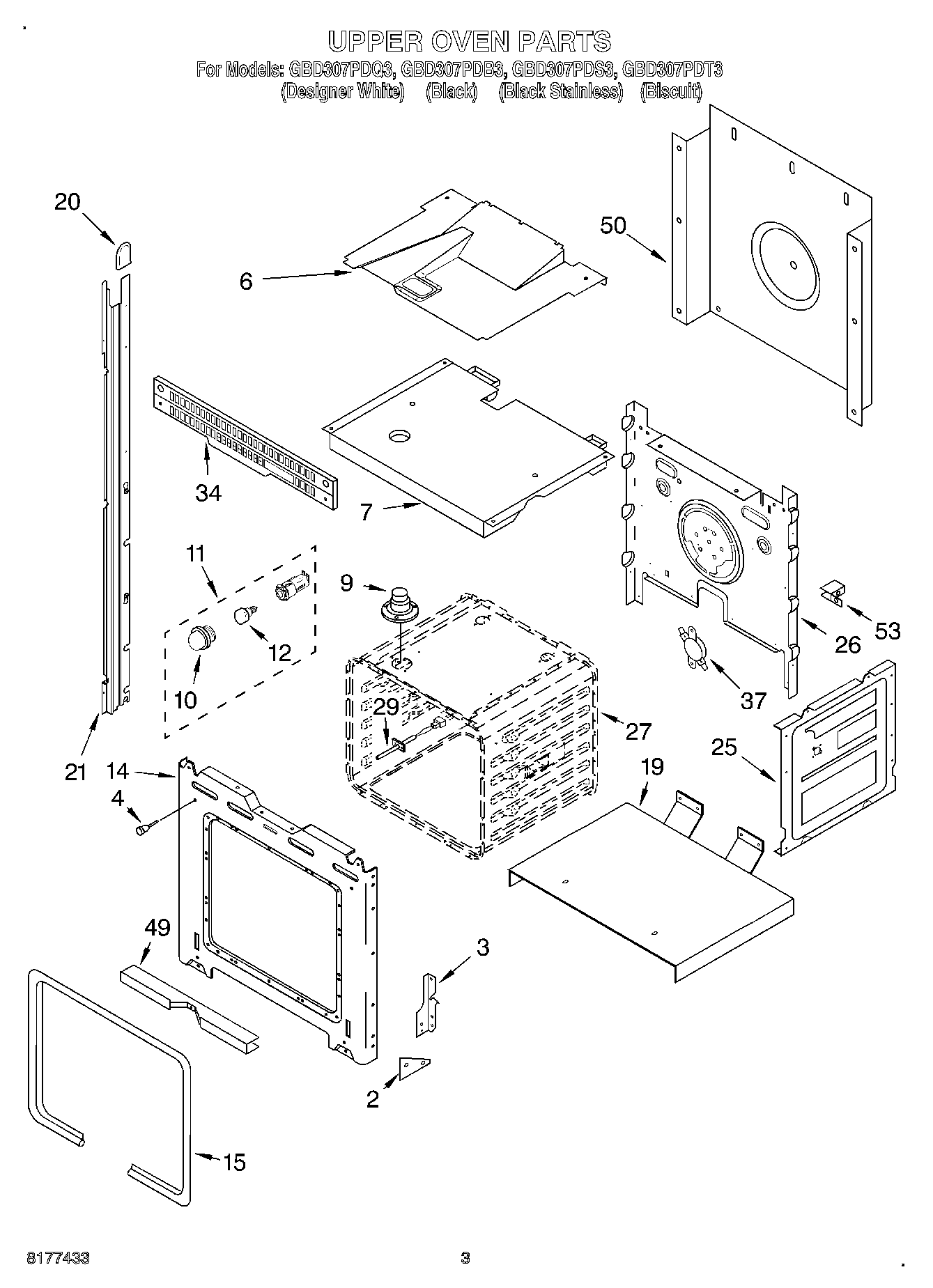

GBD307PDB3 02 – UPPER OVEN

Products

PositionProduct
2WP4455509 Whirlpool Support Bracket
3Reciever, Hinge (Right Hand)
3Reciever, Hinge (Left Hand)
44448520 Whirlpool Oven Bumper
6Divider, Vent
7Top, Chassis
9W10861715 Whirlpool Vent Tube
10Lens, Light
11WPW10734065 Whirlpool Light
12WP4173175 Whirlpool Light Bulb
14WP4450118 Whirlpool Nut
14Screw
14Frame, Front
15W11675844 Whirlpool Oven Gasket
19Support, Insulation
20Cap, Spacer
21WP4448444 Whirlpool Grommet
21814373 Whirlpool Oven Rail Mount
21814374 Whirlpool Oven Rail Mount
25Side, Chassis (R.H. & L.H.)
26Back, Chassis
27Liner, Oven (Not a Serviceable Part)
29Sensor
34Vent, Center
37WP9759243 Whirlpool Thermostat
49WP4448933 Whirlpool Retainer
49WP4449154 Whirlpool Screw
50WP4451747 Whirlpool Rear Cover
53WPL 4449845
53W11684730 Whirlpool Insulation
53WPL 4450365
53WP4449809 Whirlpool Screw
