GBD307PDQ0 01 – LOWER OVEN

GBD307PDQ0 01 – LOWER OVEN

Written by

in

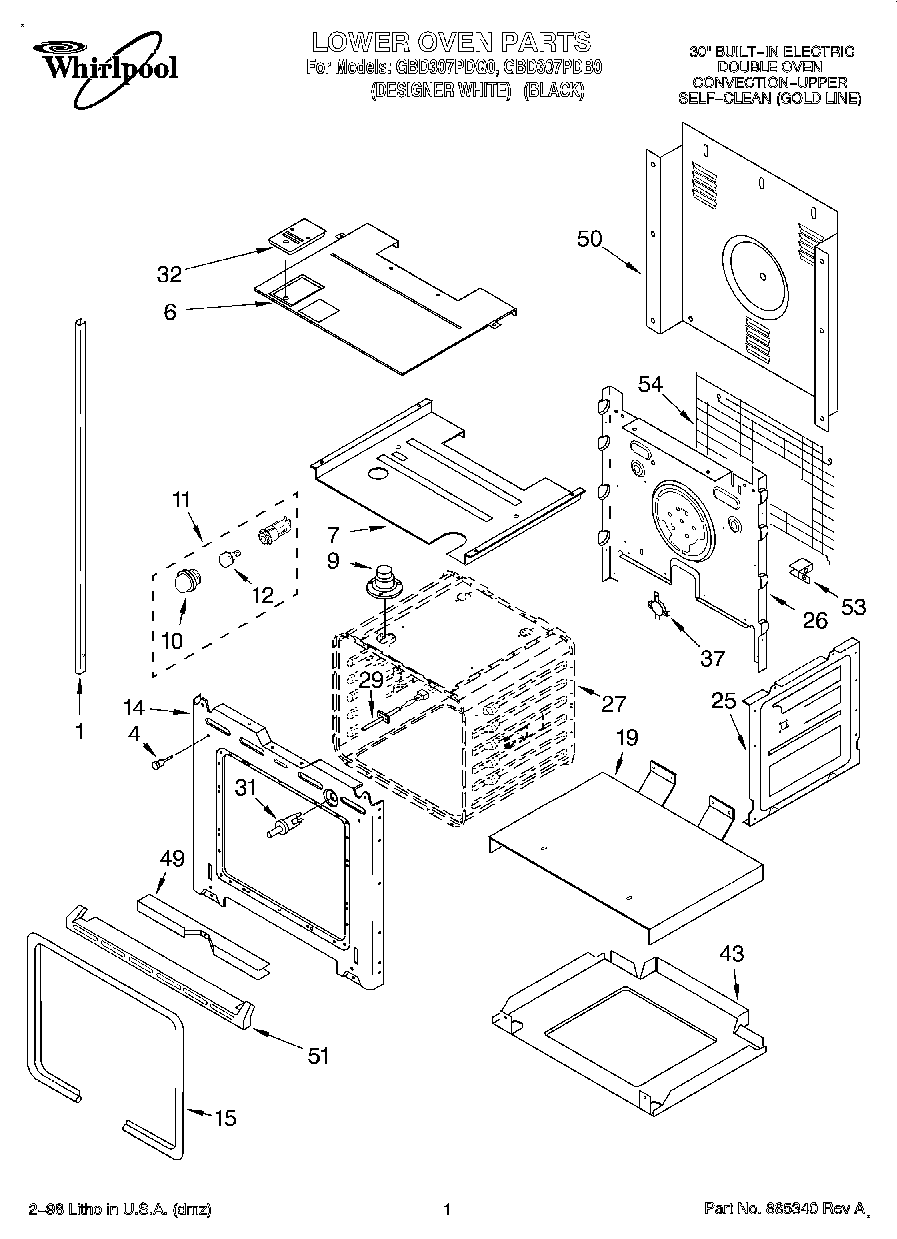

GBD307PDQ0 01 – LOWER OVEN

Products

PositionProduct
1Trim, Side (LH Black)
1Trim, Side (Left Hand)) (White Model)
1WP8281236 Whirlpool Screw
1Trim, Side (Right Hand) (White Model)
1Trim, Side (RH Black)
44448520 Whirlpool Oven Bumper
6Divider, Vent
7Partition
9Tube, Vent
10Lens, Light
11WPW10734065 Whirlpool Light
12WP4173175 Whirlpool Light Bulb
14Screw
14WP4450118 Whirlpool Nut
14Frame, Front
15W11675844 Whirlpool Oven Gasket
19Support, Insulation
25Side, Chassis (R.H. & L.H.)
26Back, Chassis
27Liner, Oven (Not a Serviceable Part)
29Sensor
31Switch, Door
32Vent Box Assy
37WP4450249 Whirlpool Thermostat
43Base, Chassis
49WP4448933 Whirlpool Retainer
49WP4449154 Whirlpool Screw
50Cover, Back
51Trim, Bottom (Screw)
51WPL 4448477
51WPL 4448478
53WPL 4449845
54Spacer, Harness
54WPL 4450365
54W11684730 Whirlpool Insulation
54WP4449809 Whirlpool Screw
