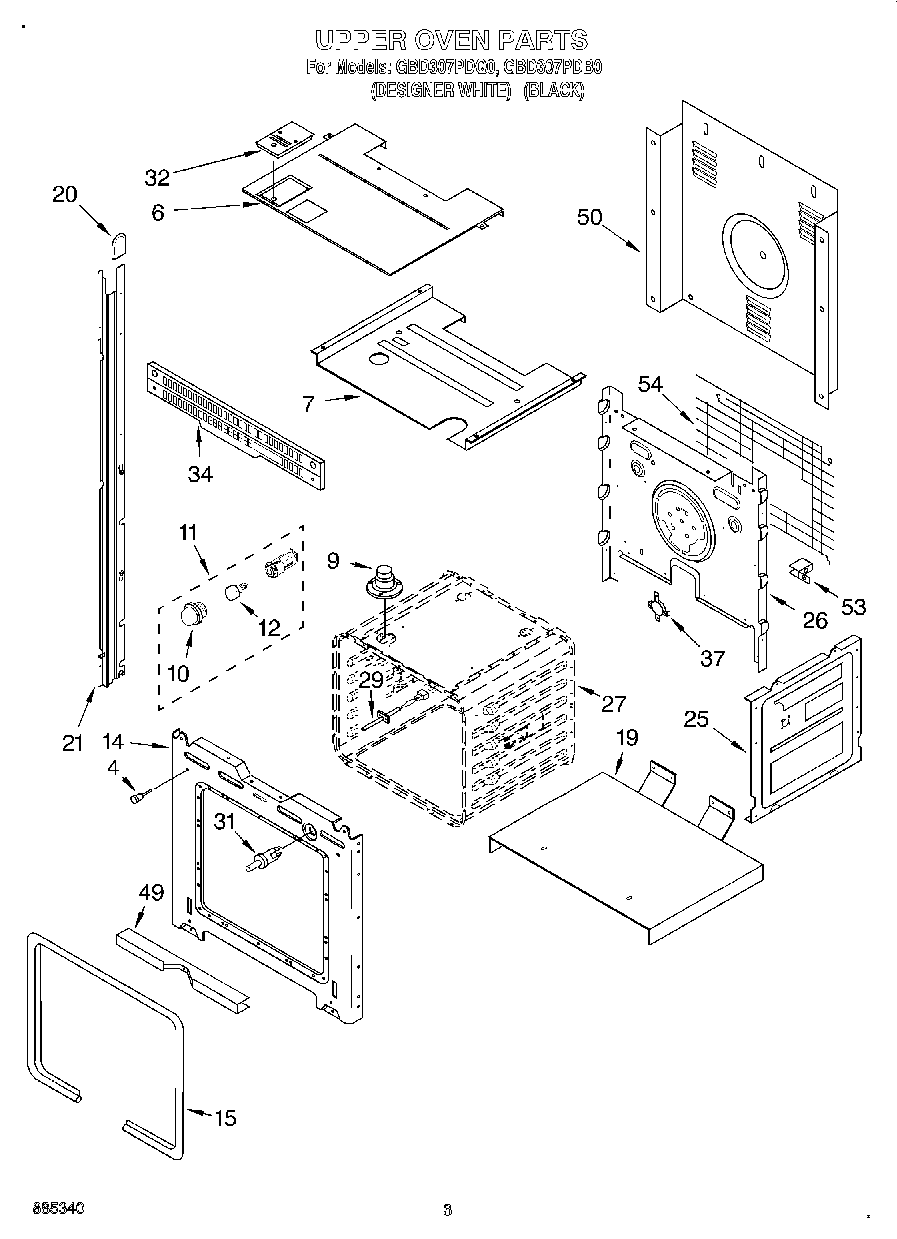

GBD307PDQ0 02 – UPPER OVEN

GBD307PDQ0 02 – UPPER OVEN

Written by

in

GBD307PDQ0 02 – UPPER OVEN

Products

PositionProduct
44448520 Whirlpool Oven Bumper
6Divider, Vent
7Partition
9Tube, Vent
10Lens, Light
11WPW10734065 Whirlpool Light
12WP4173175 Whirlpool Light Bulb
14Screw
14WP4450118 Whirlpool Nut
14Frame, Front
15W11675844 Whirlpool Oven Gasket
19Support, Insulation
20Cap, Spacer
21814374 Whirlpool Oven Rail Mount
21WP4448444 Whirlpool Grommet
21814373 Whirlpool Oven Rail Mount
25Side, Chassis (R.H. & L.H.)
26Back, Chassis
27Liner, Oven (Not a Serviceable Part)
29Sensor
31Switch, Door
32Vent Box Assy
34Vent, Center
37WP4450934 Whirlpool Thermostat Assembly
49WP4449154 Whirlpool Screw
49WP4448933 Whirlpool Retainer
50Cover, Back
53WPL 4449845
54Spacer, Harness
54WPL 4450365
54W11684730 Whirlpool Insulation
54WP4449809 Whirlpool Screw
