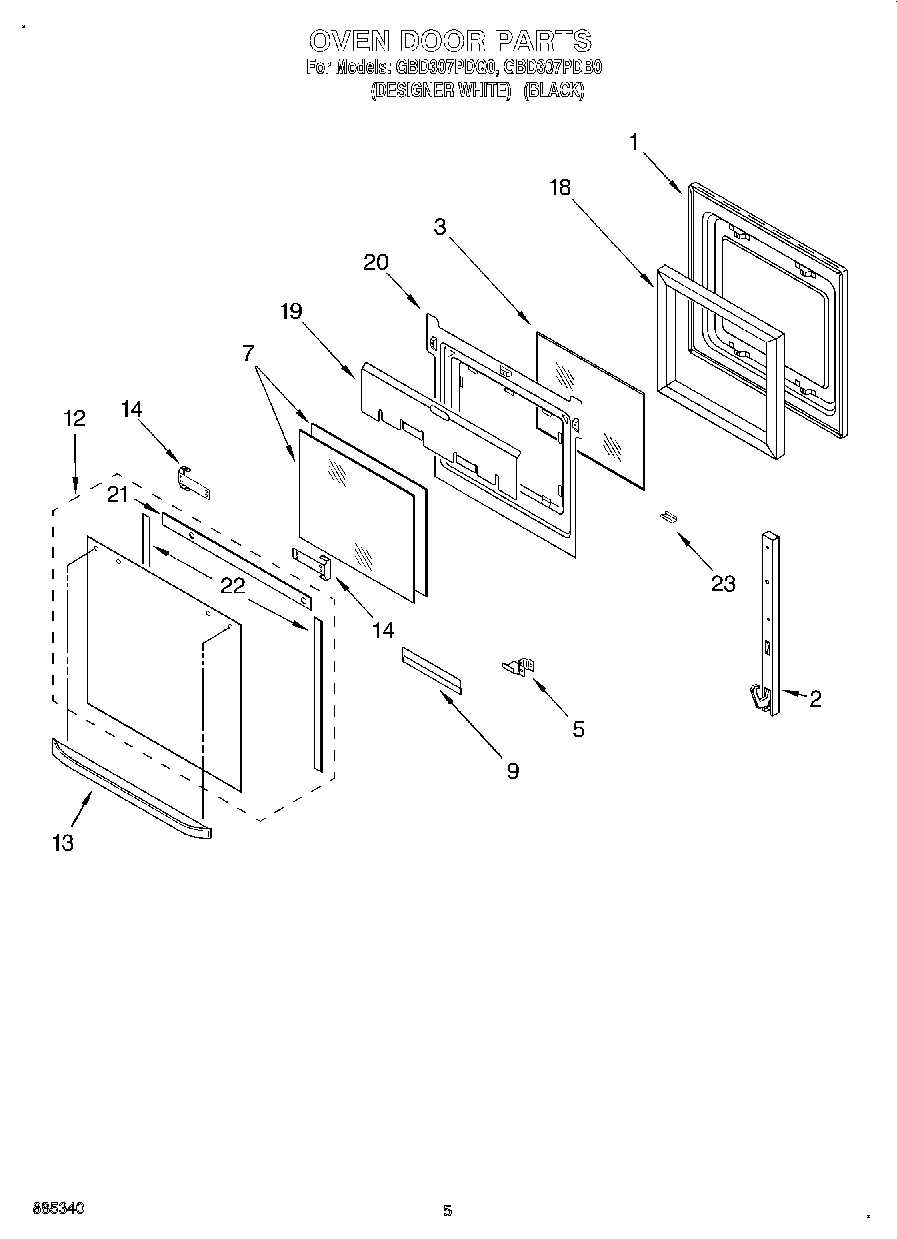

GBD307PDQ0 03 – OVEN DOOR
Written by
in
GBD307PDQ0 03 – OVEN DOOR
Products
Position
Product
1
Door Liner
2
WP4455525 Whirlpool Oven Door Hinge
2
WP4449743 Whirlpool Screw
3
WP4449259 Whirlpool Glass Window
5
Retainer, Glass
7
WP4449263 Whirlpool Inner Door Glass
9
Retainer, Glass
12
Door Glass (White Model)
12
WP9759641 Whirlpool Outer Door Glass
13
Door Handle (White Model)
13
Door Handle (Black Model)
14
Bracket, Handle
14
Screw
18
WP4451722 Whirlpool Door Insulation Assembly
19
Shield, Heat
20
Retainer, Glass
20
WP4449809 Whirlpool Screw
21
Seal, Door Top
22
Seal, Sides
23
Clip, Retainer (Black Model)
23
Clip, Retainer (White Model)
←
