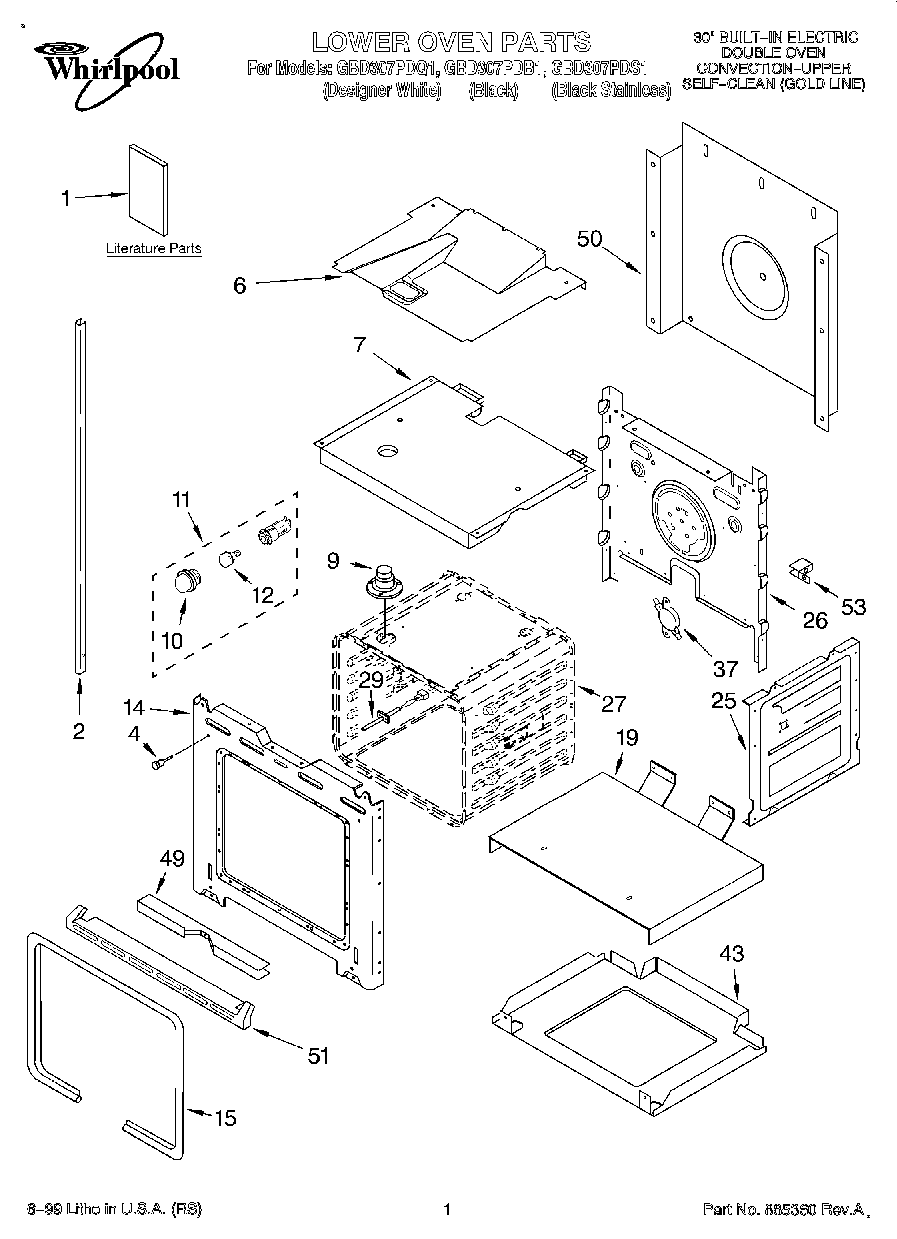

GBD307PDS1 01 – LOWER OVEN, LITERATURE

GBD307PDS1 01 – LOWER OVEN, LITERATURE

Written by

in

GBD307PDS1 01 – LOWER OVEN, LITERATURE

Products

PositionProduct
1Safer Cooking Tips
1Cookbook, T/C Ovens
1Literature Parts (Installation Instructions)
1Use & Care Guide
1Literature Parts (Tech Sheet)
2WP8281236 Whirlpool Screw
2Trim, Side (Left Hand)) (White Model)
2Trim, Side (LH Black)
2Trim, Side (Right Hand) (White Model)
2Trim, Side (RH Black)
44448520 Whirlpool Oven Bumper
6Divider, Vent
7Top, Chassis
9W10861715 Whirlpool Vent Tube
10Lens, Light
11WPW10734065 Whirlpool Light
12WP4173175 Whirlpool Light Bulb
14Screw
14WP4450118 Whirlpool Nut
14Frame, Front
15W11675844 Whirlpool Oven Gasket
19Support, Insulation
25Side, Chassis (R.H. & L.H.)
26Back, Chassis
27Liner, Oven (Not a Serviceable Part)
29Sensor
37WP9759243 Whirlpool Thermostat
43Base, Chassis
49WP4449154 Whirlpool Screw
49WP4448933 Whirlpool Retainer
50WP4451747 Whirlpool Rear Cover
51WPL 4448478
51WPL 4448477
51Trim, Bottom (Screw)
53W11684730 Whirlpool Insulation
53WPL 4449845
53WPL 4450365
53WP4449809 Whirlpool Screw
