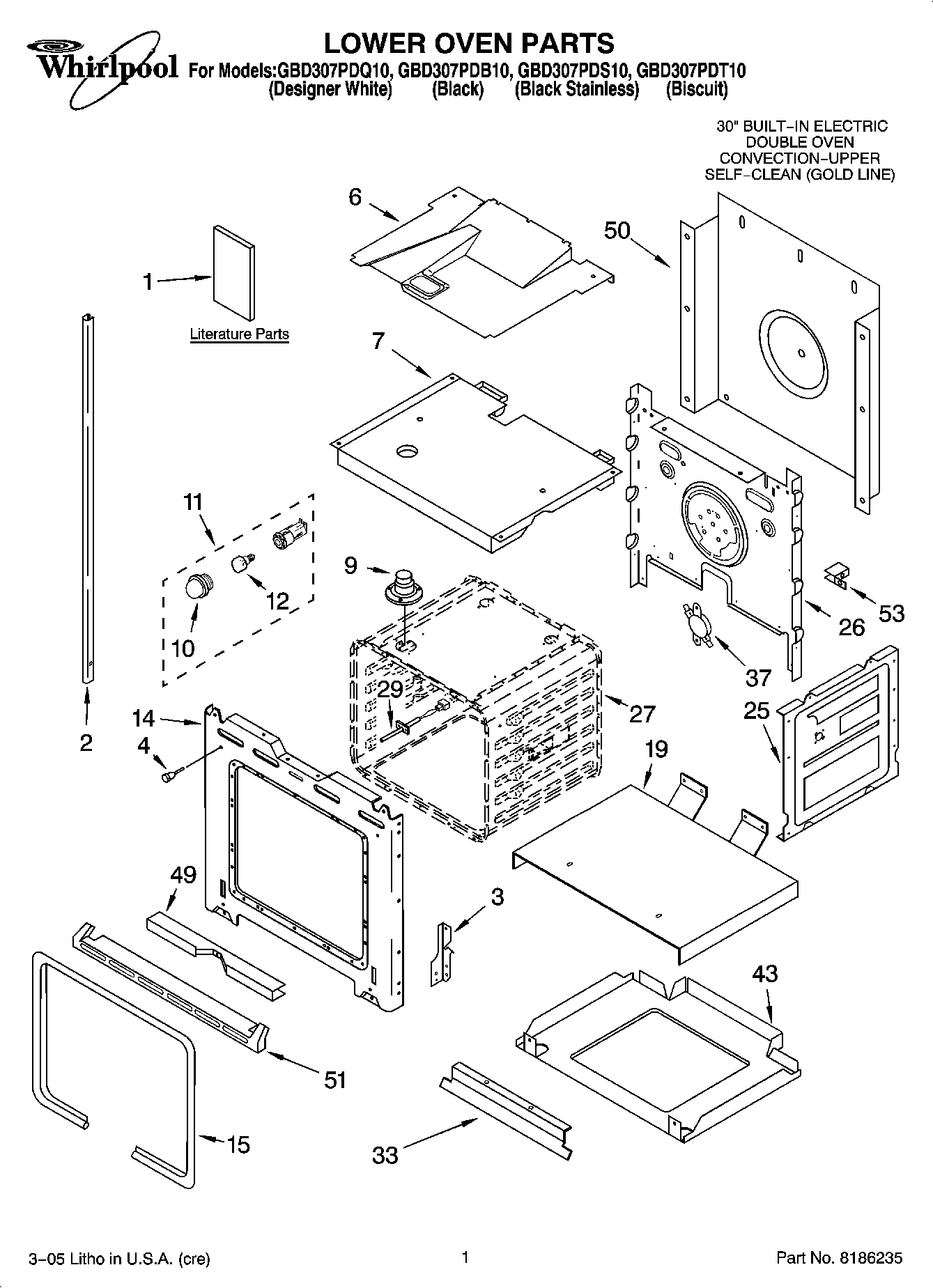

GBD307PDS10 01 – LOWER OVEN PARTS

GBD307PDS10 01 – LOWER OVEN PARTS

Written by

in

GBD307PDS10 01 – LOWER OVEN PARTS

Products

PositionProduct
1Use & Care Guide
1Cookbook, WP Conv.
1Installation Instructions
1Tech Sheet (Oven)
1Safe Cooking Tips
2Trim, Side (LH Black)
2Trim, Side (Left Hand)) (White Model)
2Trim, Side (RH Black)
2Trim, Side (LH Biscuit)
2Trim, Side (RH Biscuit)
2Trim, Side (Right Hand) (White Model)
2WP8281236 Whirlpool Screw
3WP4455605 Whirlpool Left Hand Hinge
3WP4455606 Whirlpool Right Hand Hinge
44448520 Whirlpool Oven Bumper
6Divider, Vent
7Top, Chassis
9SCREW
9W10861715 Whirlpool Vent Tube
10Lens, Light
11WPW10734065 Whirlpool Light
12WP4173175 Whirlpool Light Bulb
14WP4450118 Whirlpool Nut
14Frame, Front
14Screw
15W11675844 Whirlpool Oven Gasket
19Support, Insulation
25W10782197 Whirlpool Side Panel
26Back, Chassis
27Liner, Oven (Not serviceable)
29WPW10131825 Whirlpool Oven Temperature Sensor
33Deflector, Vent
37WP9759242 Whirlpool Thermostat
43Base, Chassis
49WP4449154 Whirlpool Screw
49WP4448933 Whirlpool Retainer
50WP4451747 Whirlpool Rear Cover
51WPL 4448477
51WPL 4448478
51WPL 4452415
53WP4449809 Whirlpool Screw
53WPL 4450365
53W11684730 Whirlpool Insulation
53WPL 4449845
53FOLLOWING PARTS NOT ILLUSTRATED INSULATION
