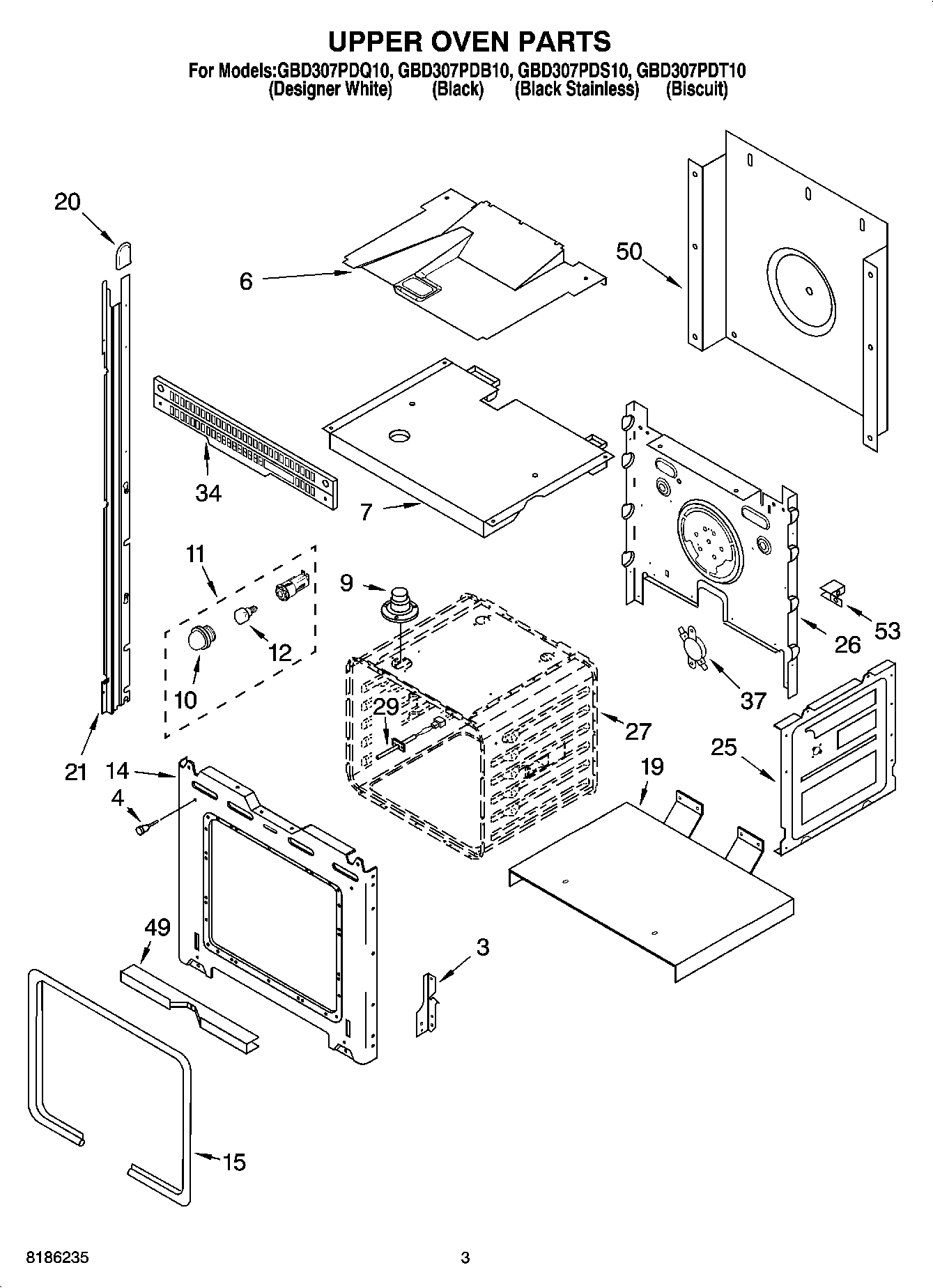

GBD307PDS10 02 – UPPER OVEN PARTS

Products

Position	Product
3	WP4455605 Whirlpool Left Hand Hinge
3	WP4455606 Whirlpool Right Hand Hinge
4	4448520 Whirlpool Oven Bumper
6	Divider, Vent
7	Top, Chassis
9	W10861715 Whirlpool Vent Tube
9	SCREW
10	Lens, Light
11	WPW10734065 Whirlpool Light
12	WP4173175 Whirlpool Light Bulb
14	Screw
14	WP4450118 Whirlpool Nut
14	Frame, Front
15	W11675844 Whirlpool Oven Gasket
19	Support, Insulation
20	Cap, Spacer
21	814373 Whirlpool Oven Rail Mount
21	814374 Whirlpool Oven Rail Mount
21	WP4448444 Whirlpool Grommet
25	W10782197 Whirlpool Side Panel
26	Back, Chassis
27	Liner, Oven (Not serviceable)
29	WPW10131825 Whirlpool Oven Temperature Sensor
34	WP3400832 Whirlpool Screw
34	Vent, Center
37	WP9759242 Whirlpool Thermostat
49	WP4448933 Whirlpool Retainer
49	WP4449154 Whirlpool Screw
50	WP4451747 Whirlpool Rear Cover
53	WP4449809 Whirlpool Screw
53	WPL 4450365
53	W11684730 Whirlpool Insulation
53	WPL 4449845
53	FOLLOWING PARTS NOT ILLUSTRATED INSULATION
