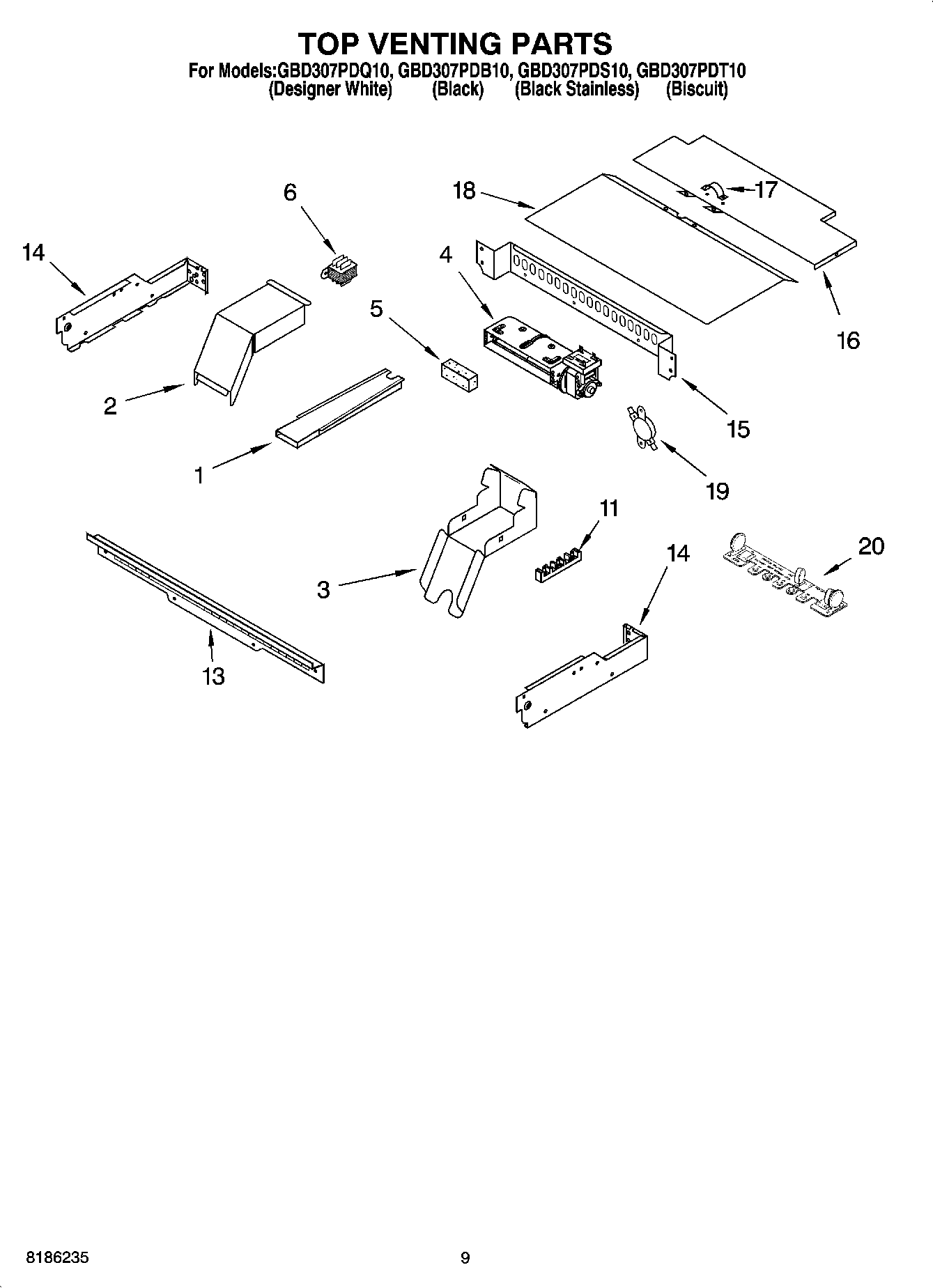

GBD307PDS10 07 – TOP VENTING PARTS, OPTIONAL PARTS

GBD307PDS10 07 – TOP VENTING PARTS, OPTIONAL PARTS

Written by

in

GBD307PDS10 07 – TOP VENTING PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI58670A5
Wire (12 Ga. 150 c Black)
WPL 591014
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
WP261869 Whirlpool Microwave Paint
18 Ga. 80~c Rating (Red)
Wire (14 Ga. 200 c Brown)
WPL ARI58669A6
WPL ARI58668A4
WPL 8301777
8301909 Whirlpool Oven Wire Harness
261900 Whirlpool Microwave Spray
WPL ARI58671A7
4451761 Whirlpool Oven Support Bracket
1
242831 Whirlpool Oven Wire
Spacer, Harness
4450800 Whirlpool Oven Screw
4448664 Whirlpool Oven Mounting Bracket
350930 Whirlpool White Spray Paint
72017 Whirlpool Appliance Touch-Up Paint White
WP4449809 Whirlpool Screw
Wire, 25“ Roll (White 14 GA.)
WP112432 Whirlpool Nut Assembly
Wire, 25` Roll (Red 14 Ga.)
WPW10339879 Whirlpool Wire Tie
285006 Whirlpool Spray
Conduit, Double
Wire, 25` Roll (Black 14 Ga.)
WP4448950 Whirlpool Screw
814381 Whirlpool Pin
72032 Whirlpool Touch Up Paint Black
WP482338 Whirlpool Refrigerator Adhesive
14451759 Whirlpool Oven Exhaust Vent
24455178 Whirlpool Oven Top Elbow
34455177 Whirlpool Oven Bottom Elbow
4WPW10016550 Whirlpool Blower Cooling Fan
4WPW10176670 Whirlpool Blower
44455191 Whirlpool Oven Mounting Plate
5W10491987 Whirlpool Foam Seal
6Transformer, Control
11Screw
11WP8203546 Whirlpool Terminal Block
13WP4450038 Whirlpool Screw
13Vent, Control Panel
14WP4449154 Whirlpool Screw
14W10755214 Whirlpool Side Complete
14W10790240 Whirlpool Side Assembly Complete
15Back, Control
16WP4450551 Whirlpool Top Cabinet
18WP4452367 Whirlpool Top Cover
19WP9759243 Whirlpool Thermostat
20SUPPRESSOR
