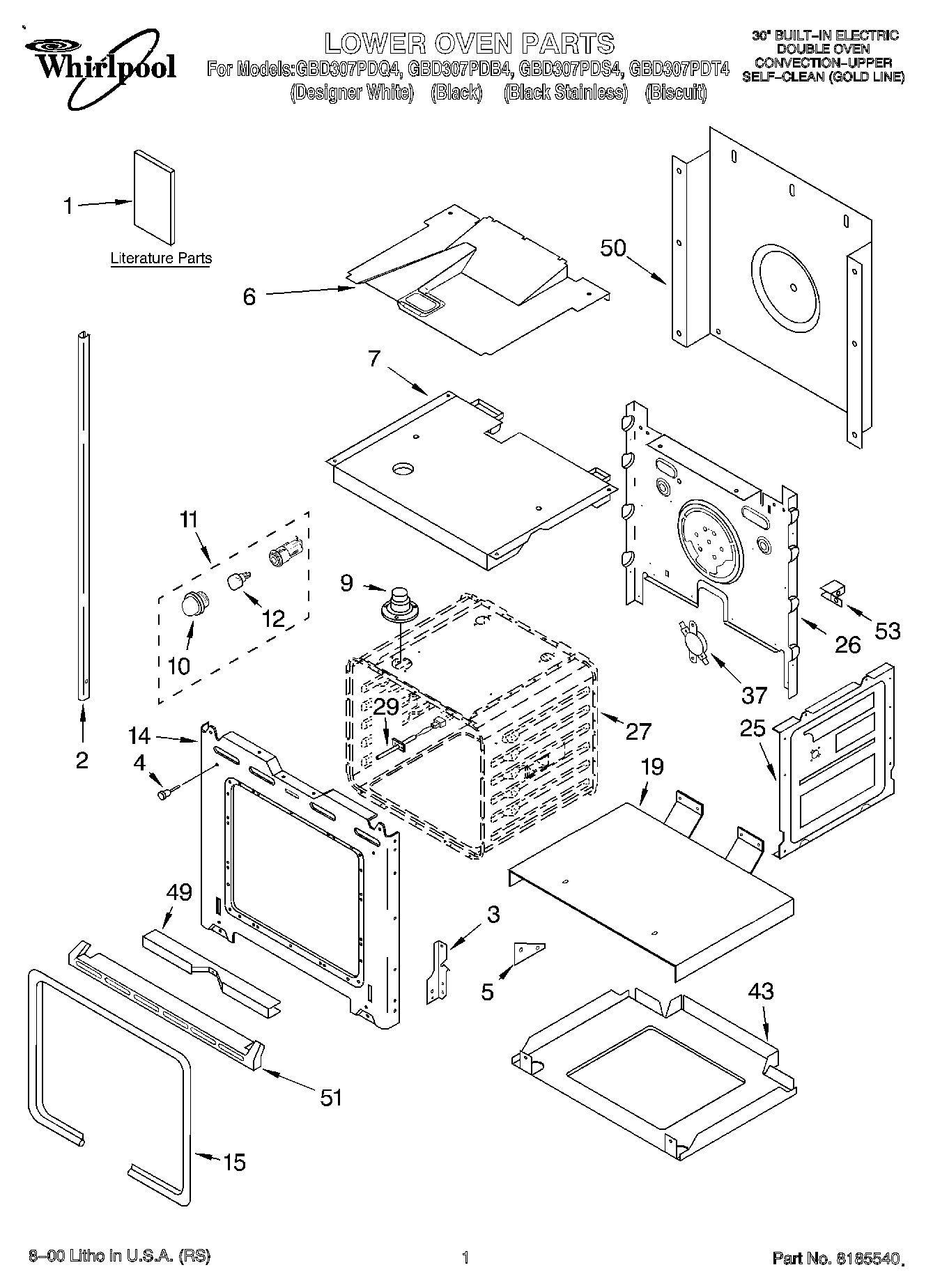

GBD307PDS4 01 – LOWER OVEN, LITERATURE

Products

Position	Product
1	Safer Cooking Tips
1	Use & Care Guide
1	Cookbook, T/C Ovens
1	Literature Parts (Tech Sheet)
1	Literature Parts (Installation Instructions)
2	Trim, Side (RH Black)
2	Trim, Side (Right Hand) (White Model)
2	Trim, Side (LH Black)
2	Trim, Side (Left Hand)) (White Model)
2	Trim, Side (LH Biscuit)
2	Trim, Side (RH Biscuit)
2	WP8281236 Whirlpool Screw
3	Reciever, Hinge (Right Hand)
3	Reciever, Hinge (Left Hand)
4	4448520 Whirlpool Oven Bumper
5	WP4455509 Whirlpool Support Bracket
6	Divider, Vent
7	Top, Chassis
9	W10861715 Whirlpool Vent Tube
10	Lens, Light
11	WPW10734065 Whirlpool Light
12	WP4173175 Whirlpool Light Bulb
14	WP4450118 Whirlpool Nut
14	Frame, Front
14	Screw
15	W11675844 Whirlpool Oven Gasket
19	Support, Insulation
25	Side, Chassis (R.H. & L.H.)
26	Back, Chassis
27	Liner, Oven (Not a Serviceable Part)
29	WPW10131825 Whirlpool Oven Temperature Sensor
37	WP9759243 Whirlpool Thermostat
43	WPL 4455530
49	WP4449154 Whirlpool Screw
49	WP4448933 Whirlpool Retainer
50	WP4451747 Whirlpool Rear Cover
51	WPL 4448478
51	WPL 4452415
51	WPL 4448477
53	WP4449809 Whirlpool Screw
53	Screw, (2)
53	WPL 4449845
53	WPL 4450365
53	W11684730 Whirlpool Insulation
53	Trim, Bottom (Screw)
