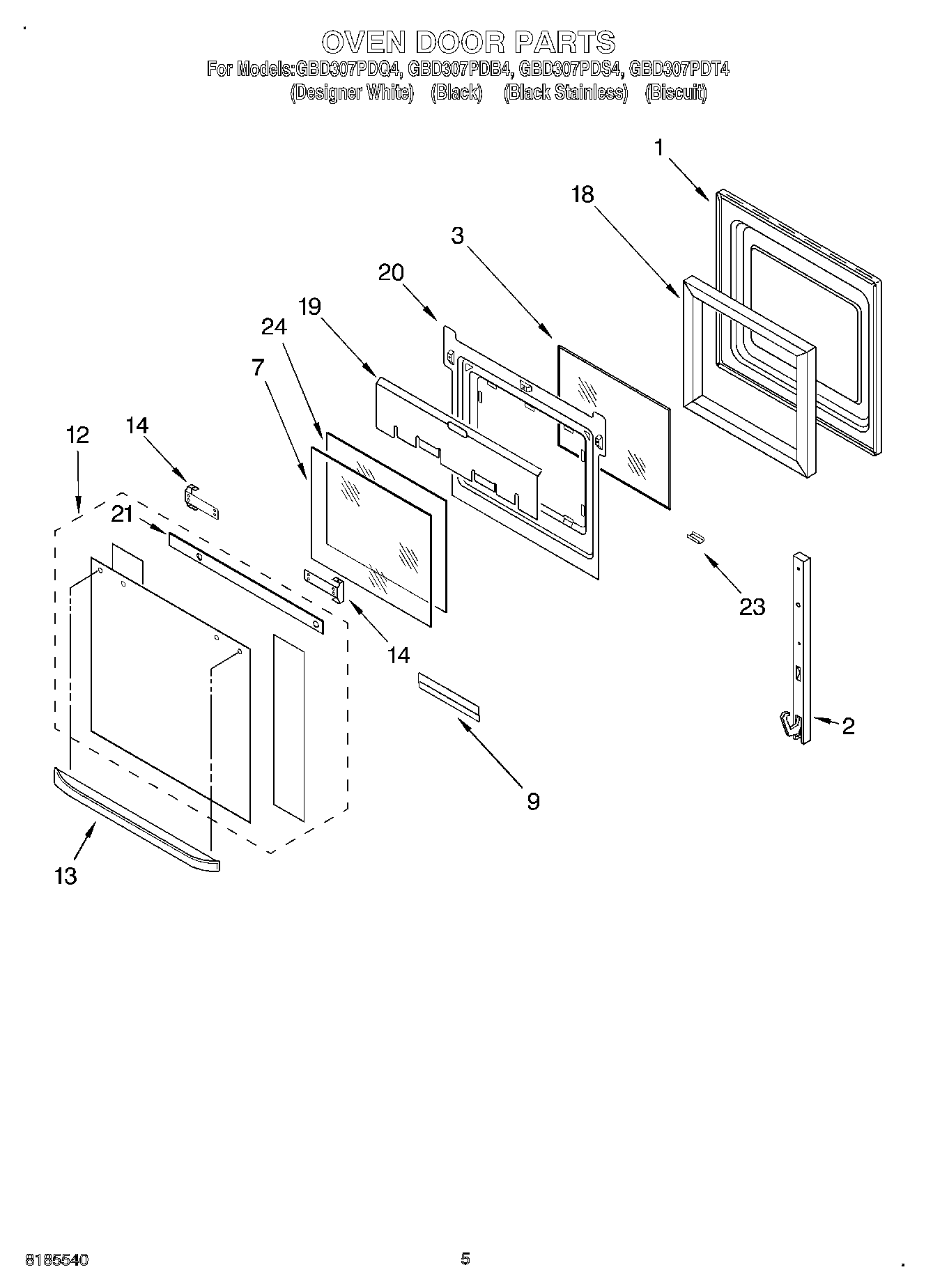

GBD307PDS4 03 – LOWER OVEN DOOR
Written by
in
GBD307PDS4 03 – LOWER OVEN DOOR
Products
Position
Product
1
WP9759413 Whirlpool Door Liner
2
WP4455526 Whirlpool Door Hinge
2
WP4455524 Whirlpool Door Hinge
2
WP4449743 Whirlpool Screw
3
WP4449259 Whirlpool Glass Window
7
WP4449263 Whirlpool Inner Door Glass
9
Retainer, Glass
12
WP9759074 Whirlpool Outer Door Glass
12
WP9759641 Whirlpool Outer Door Glass
12
Door Glass, Assy (White Model)
12
Door Glass (Biscuit)
13
Door Handle (White Model)
13
Door Handle (Black Model)
13
Door Handle (Biscuit)
14
Screw
14
Bracket, Handle
18
WP4451722 Whirlpool Door Insulation Assembly
19
Shield, Heat
20
Retainer, Glass
20
WP4449809 Whirlpool Screw
21
Seal, Door Top
23
Clip, Retainer (White Model)
23
Clip, Retainer (Black Model)
24
Glass, Inner
←
