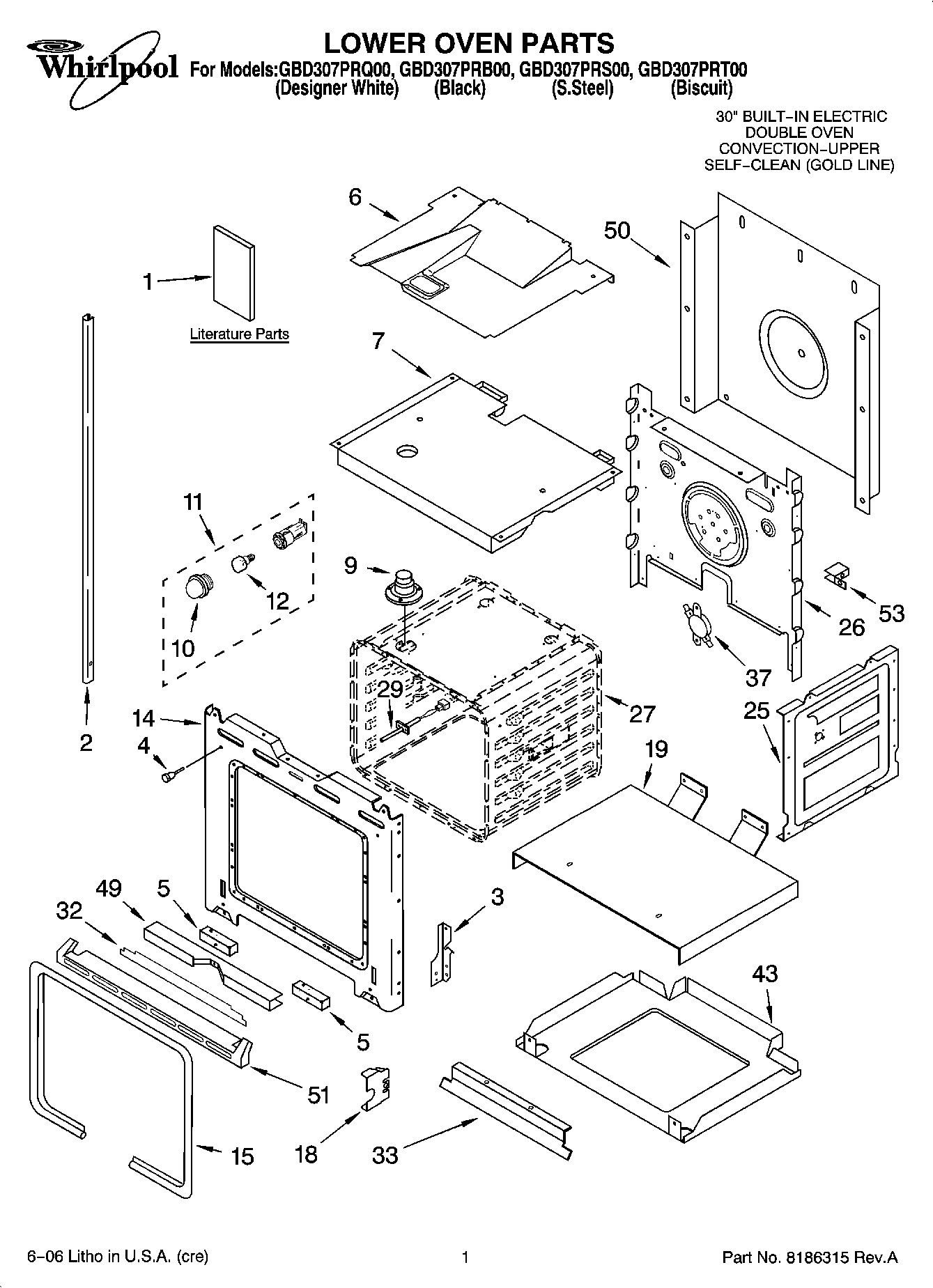

GBD307PRB00 01 – LOWER OVEN PARTS

GBD307PRB00 01 – LOWER OVEN PARTS

Written by

in

GBD307PRB00 01 – LOWER OVEN PARTS

Products

PositionProduct
1Safe Cooking Tips (French)
1Cookbook, WP Conv.
1Safe Cooking Tips
1Tech Sheet (Oven)
1Use & Care Guide
1Installation Instructions Owners Manual (Sgl/Dbl Oven)
2WPW10339500 Whirlpool Trim
2WPW10339499 Whirlpool Trim Assembly
2W10339503 Whirlpool Trim
2WPW10339502 Whirlpool Trim Kit
2Trim, Side (RH White)
2Trim, Side (LH Biscuit)
2Trim, Side (LH S.Steel)
2Trim, Side (RH S.Steel)
2WP8281236 Whirlpool Screw
3WP4455605 Whirlpool Left Hand Hinge
3WP4455606 Whirlpool Right Hand Hinge
44448520 Whirlpool Oven Bumper
5Spacer, Foam
6Divider, Vent
7Top, Chassis
9W10861715 Whirlpool Vent Tube
9SCREW
10Lens, Light
11WPW10734065 Whirlpool Light
12WP4173175 Whirlpool Light Bulb
14Frame, Front
14Screw
14WP4450118 Whirlpool Nut
15W11675844 Whirlpool Oven Gasket
184452152 Whirlpool Oven Mounting Bracket
19Support, Insulation
25W10782197 Whirlpool Side Panel
26Back, Chassis
27Liner, Oven (Not serviceable)
29WPW10131825 Whirlpool Oven Temperature Sensor
32Insulation, Bottom Vent
339760677 Whirlpool Oven Vent Deflector
37WP9759242 Whirlpool Thermostat
43Base, Chassis
49WP4449154 Whirlpool Screw
49WP4448933 Whirlpool Retainer
50WP4451747 Whirlpool Rear Cover
51WPW10207689 Whirlpool Trim Kit
51Trim, Bottom (S.Steel)
53WPL 4449845
53W11684730 Whirlpool Insulation
53WP4449809 Whirlpool Screw
53WPL 4450365
53FOLLOWING PARTS NOT ILLUSTRATED INSULATION
