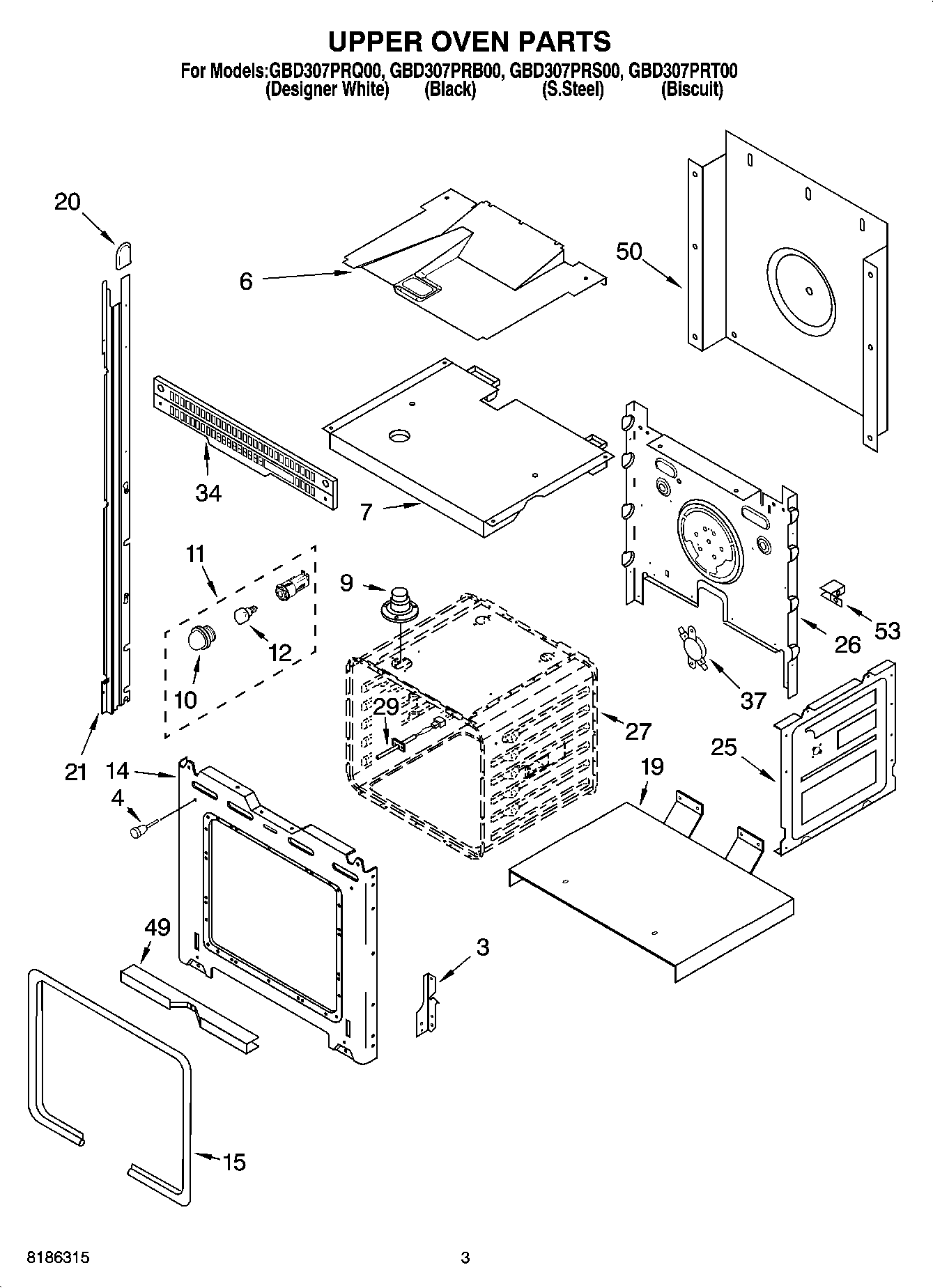

GBD307PRB00 02 – UPPER OVEN PARTS

Products

PositionProduct
3WP4455605 Whirlpool Left Hand Hinge
3WP4455606 Whirlpool Right Hand Hinge
44448520 Whirlpool Oven Bumper
6Divider, Vent
7Top, Chassis
9SCREW
9W10861715 Whirlpool Vent Tube
10Lens, Light
11WPW10734065 Whirlpool Light
12WP4173175 Whirlpool Light Bulb
14WP4450118 Whirlpool Nut
14Screw
14Frame, Front
15W11675844 Whirlpool Oven Gasket
19Support, Insulation
20Cap, Spacer
21WP8302793 Whirlpool Mounting Rail
21Rail, Side (Left)
21WP4448444 Whirlpool Grommet
25W10782197 Whirlpool Side Panel
26Back, Chassis
27Liner, Oven (Not serviceable)
29WPW10131825 Whirlpool Oven Temperature Sensor
34WP3400832 Whirlpool Screw
34Vent, Center
37WP9759242 Whirlpool Thermostat
49WP4449154 Whirlpool Screw
49WP4448933 Whirlpool Retainer
50WP4451747 Whirlpool Rear Cover
53WPL 4450365
53W11684730 Whirlpool Insulation
53WPL 4449845
53WP4449809 Whirlpool Screw
53FOLLOWING PARTS NOT ILLUSTRATED INSULATION
