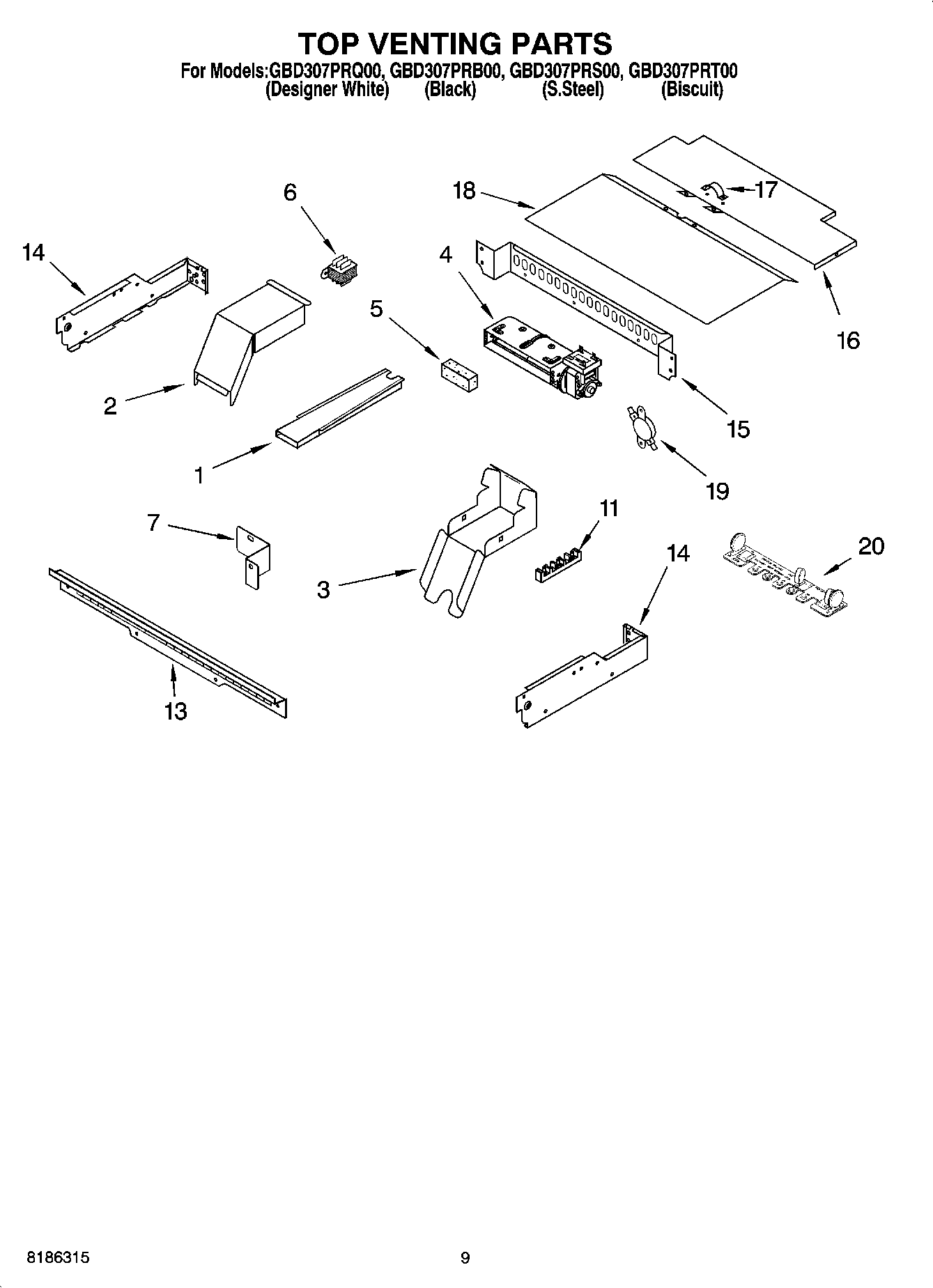

GBD307PRB00 07 – TOP VENTING PARTS, OPTIONAL PARTS

GBD307PRB00 07 – TOP VENTING PARTS, OPTIONAL PARTS

Written by

in

GBD307PRB00 07 – TOP VENTING PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI58717A1
18 Ga. 80~c Rating (Red)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
WP261869 Whirlpool Microwave Paint
Wire (14 Ga. 200 c Brown)
1
WPL ARI58716A7
WPL ARI58715A4
WPL 8301777
8301909 Whirlpool Oven Wire Harness
261900 Whirlpool Microwave Spray
WPL ARI58718A8
4451761 Whirlpool Oven Support Bracket
WPL 591014
242831 Whirlpool Oven Wire
Spacer, Harness
4450800 Whirlpool Oven Screw
4448664 Whirlpool Oven Mounting Bracket
Wire, 25“ Roll (White 14 GA.)
Wire, 25` Roll (Red 14 Ga.)
Wire, 25` Roll (Black 14 Ga.)
WP112432 Whirlpool Nut Assembly
WP4449809 Whirlpool Screw
72017 Whirlpool Appliance Touch-Up Paint White
350930 Whirlpool White Spray Paint
WPW10339879 Whirlpool Wire Tie
285006 Whirlpool Spray
WP4448950 Whirlpool Screw
814381 Whirlpool Pin
WP482338 Whirlpool Refrigerator Adhesive
72032 Whirlpool Touch Up Paint Black
Conduit, Double
14451759 Whirlpool Oven Exhaust Vent
24455178 Whirlpool Oven Top Elbow
34455177 Whirlpool Oven Bottom Elbow
44455191 Whirlpool Oven Mounting Plate
4WPW10176670 Whirlpool Blower
4WPW10016550 Whirlpool Blower Cooling Fan
5W10491987 Whirlpool Foam Seal
6Transformer, Control
78302390 Whirlpool Support Bracket
11Screw
11WP8203546 Whirlpool Terminal Block
138303497 Whirlpool Oven Vent Control
13WP4450038 Whirlpool Screw
14W10790240 Whirlpool Side Assembly Complete
14W10755214 Whirlpool Side Complete
14WP4449154 Whirlpool Screw
15Back, Control
16WP4450551 Whirlpool Top Cabinet
18WP4452367 Whirlpool Top Cover
19WP9759243 Whirlpool Thermostat
20SUPPRESSOR
