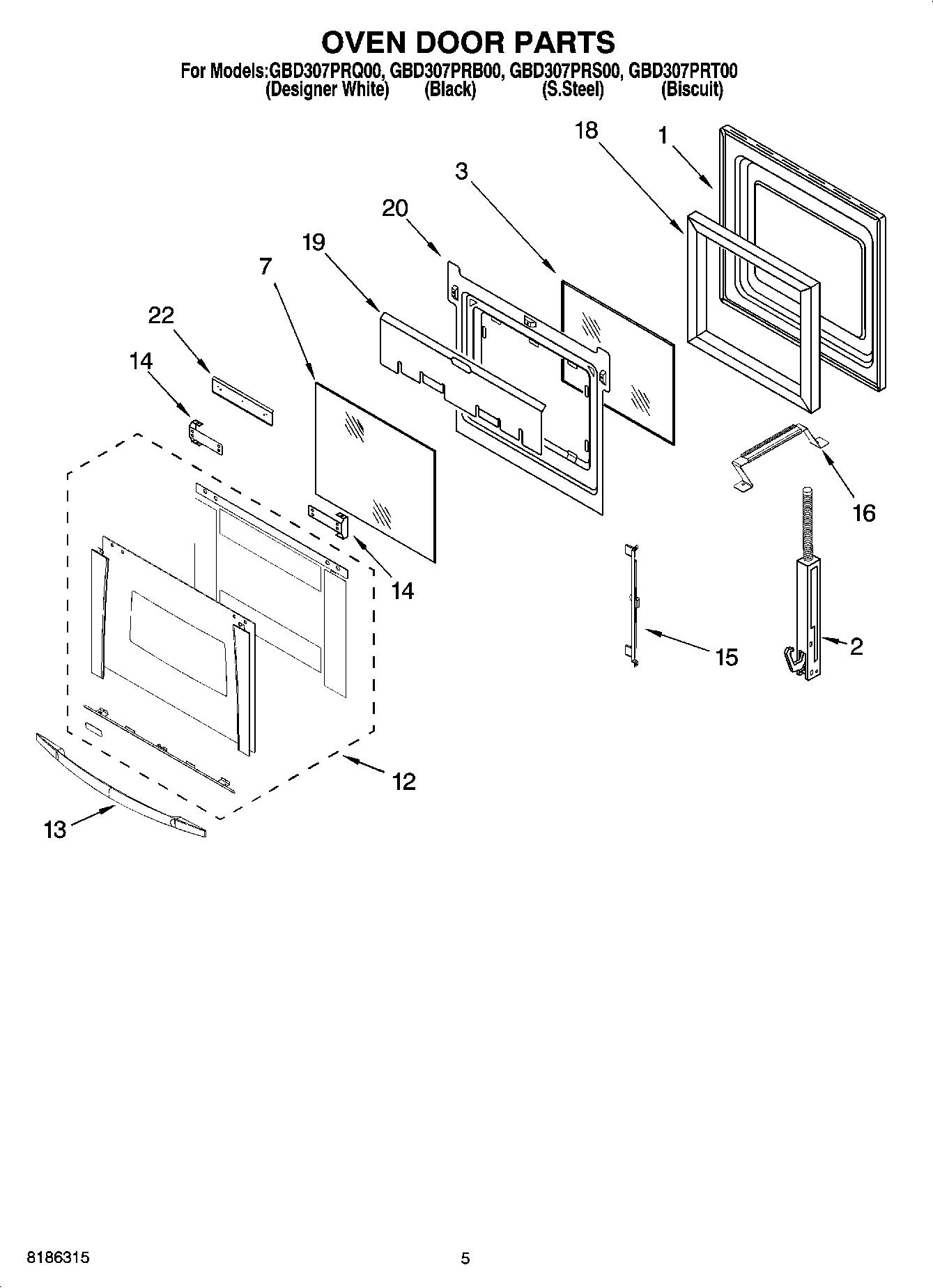

GBD307PRQ00 03 – OVEN DOOR PARTS

Products

Position	Product
1	WP9759413 Whirlpool Door Liner
2	WP9760577 Whirlpool Oven Right Door Hinge
2	WP4449743 Whirlpool Screw
2	WP9760578 Whirlpool Oven Left Door Hinge
3	WP4449259 Whirlpool Glass Window
7	WP9759225 Whirlpool Inner Door Glass
12	Door Glass Assy (Lower) (Black)
12	Door Glass Assy (Upper) (S.Steel)
12	Door Glass Assy (Lower) (S.Steel)
12	Door Glass Assy (Upper) (White)
12	Door Glass Assy (Lower) (White)
12	Door Glass Assy (Upper) (Black)
12	Door Glass Assy (Upper) (Biscuit)
12	Door Glass Assy (Lower) (Biscuit)
13	Door Handle (White)
13	Door Handle (S.Steel)
13	Door Handle (Black)
13	Door Handle (Biscuit)
14	Bracket, Handle
14	Screw
15	WP9759229 Whirlpool Mounting Bracket
16	Bracket (3rd Glsss)
18	WP4451722 Whirlpool Door Insulation Assembly
19	Shield, Heat
20	WP4457132 Whirlpool Retainer
20	WP4449809 Whirlpool Screw
22	4457114 Whirlpool Oven Heat Shield
