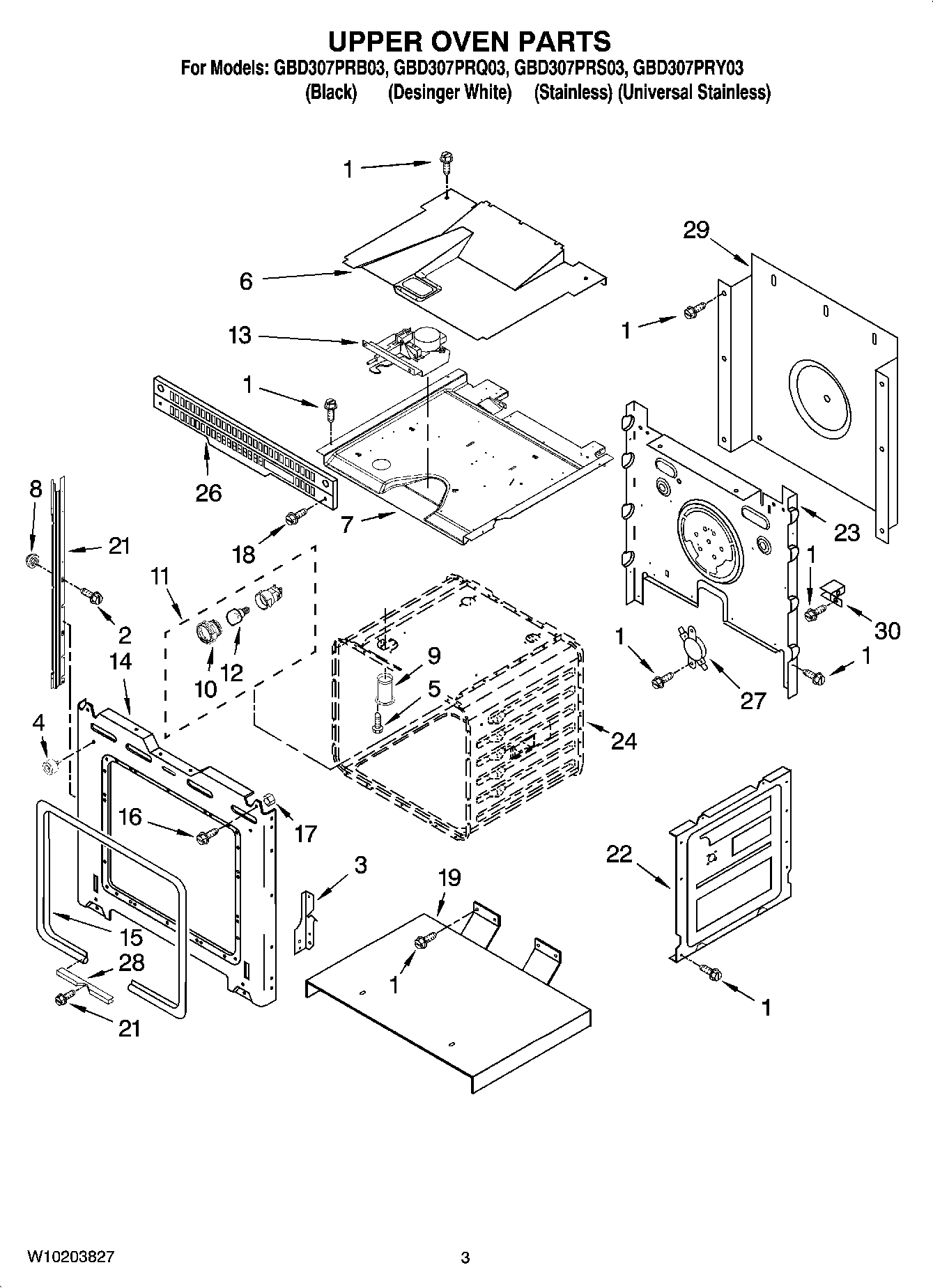

GBD307PRQ03 02 – UPPER OVEN PARTS

Products

Position	Product
	Insulation
	Following Parts Not Illustrated
	WPL 4450365
	W11684730 Whirlpool Insulation
1	WP4449809 Whirlpool Screw
2	WP4449154 Whirlpool Screw
3	WP4455605 Whirlpool Left Hand Hinge
3	WP4455606 Whirlpool Right Hand Hinge
4	W10105790 Whirlpool Bumper
5	SCREW
6	Divider, Vent
7	Top Chassis
8	WP4448444 Whirlpool Grommet
9	W10861715 Whirlpool Vent Tube
10	Lens, Light (2)
11	WPW10734065 Whirlpool Light
12	WP4173175 Whirlpool Light Bulb
13	WP9760889 Whirlpool Door Latch
14	WPW10115831 Whirlpool Front Frame
15	W11675844 Whirlpool Oven Gasket
16	Screw
17	WP4450118 Whirlpool Nut
18	WP3400832 Whirlpool Screw
19	Support, Insulation
21	WP8302793 Whirlpool Mounting Rail
21	Rail, Side (Left)
22	W10782197 Whirlpool Side Panel
23	Back, Chassis
24	Liner, Oven (Not serviceable)
26	Vent, Center
27	WP9759242 Whirlpool Thermostat
28	WP4448933 Whirlpool Retainer
29	WP4451747 Whirlpool Rear Cover
30	WPL 4449845
