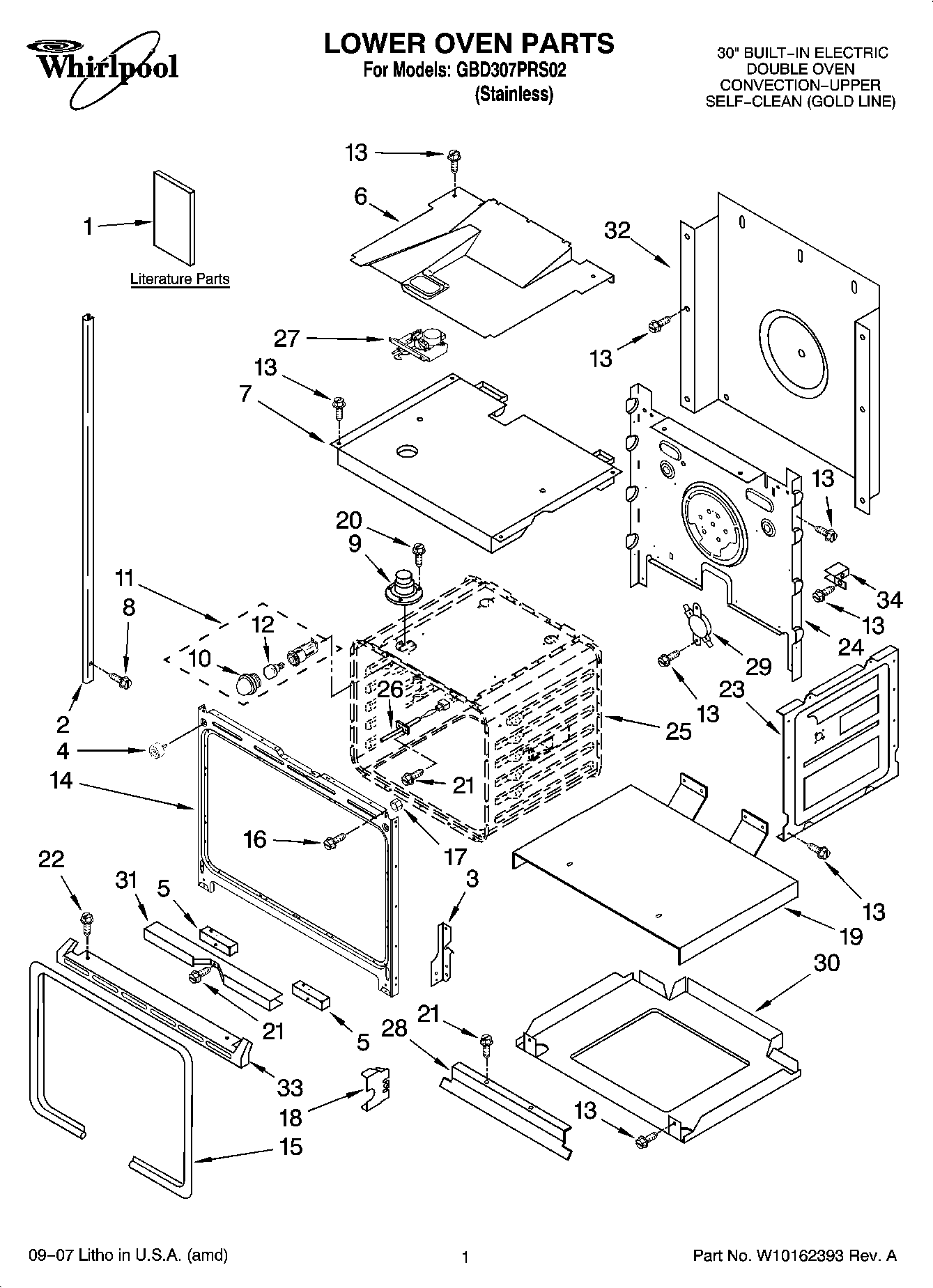

GBD307PRS02 01 – LOWER OVEN PARTS

Products

Position	Product
1	Safe Cooking Tips
1	Installation Instructions Owners Manual (Sgl/Dbl Oven)
1	Tech Sheet (Oven)
1	English
1	French
1	Safe Cooking Tips (French)
2	TRIM, SIDELEFT (STAINLESS)
2	Trim, Side Right (Stainless)
3	WP4455605 Whirlpool Left Hand Hinge
3	WP4455606 Whirlpool Right Hand Hinge
4	W10105790 Whirlpool Bumper
5	Spacer, Foam
6	Divider, Vent
7	Top Chassis
8	Screw
9	W10861715 Whirlpool Vent Tube
10	Lens, Light (2)
11	WPW10734065 Whirlpool Light
12	WP4173175 Whirlpool Light Bulb
13	WP4449809 Whirlpool Screw
14	WPW10115831 Whirlpool Front Frame
15	W11675844 Whirlpool Oven Gasket
16	Screw
17	WP4450118 Whirlpool Nut
18	4452152 Whirlpool Oven Mounting Bracket
19	Support, Insulation
20	SCREW
21	WP4449154 Whirlpool Screw
22	WP3400832 Whirlpool Screw
23	W10782197 Whirlpool Side Panel
24	Back, Chassis
25	Liner, Oven (Not serviceable)
26	WPW10131825 Whirlpool Oven Temperature Sensor
27	WP9760889 Whirlpool Door Latch
28	9760677 Whirlpool Oven Vent Deflector
29	WP9759242 Whirlpool Thermostat
30	Base, Chassis
31	WP4448933 Whirlpool Retainer
32	WP4451747 Whirlpool Rear Cover
33	Trim, Bottom Vent
34	W11684730 Whirlpool Insulation
34	WPL 4449845
34	FOLLOWING PARTS NOT ILLUSTRATED INSULATION
34	WPL 4450365
