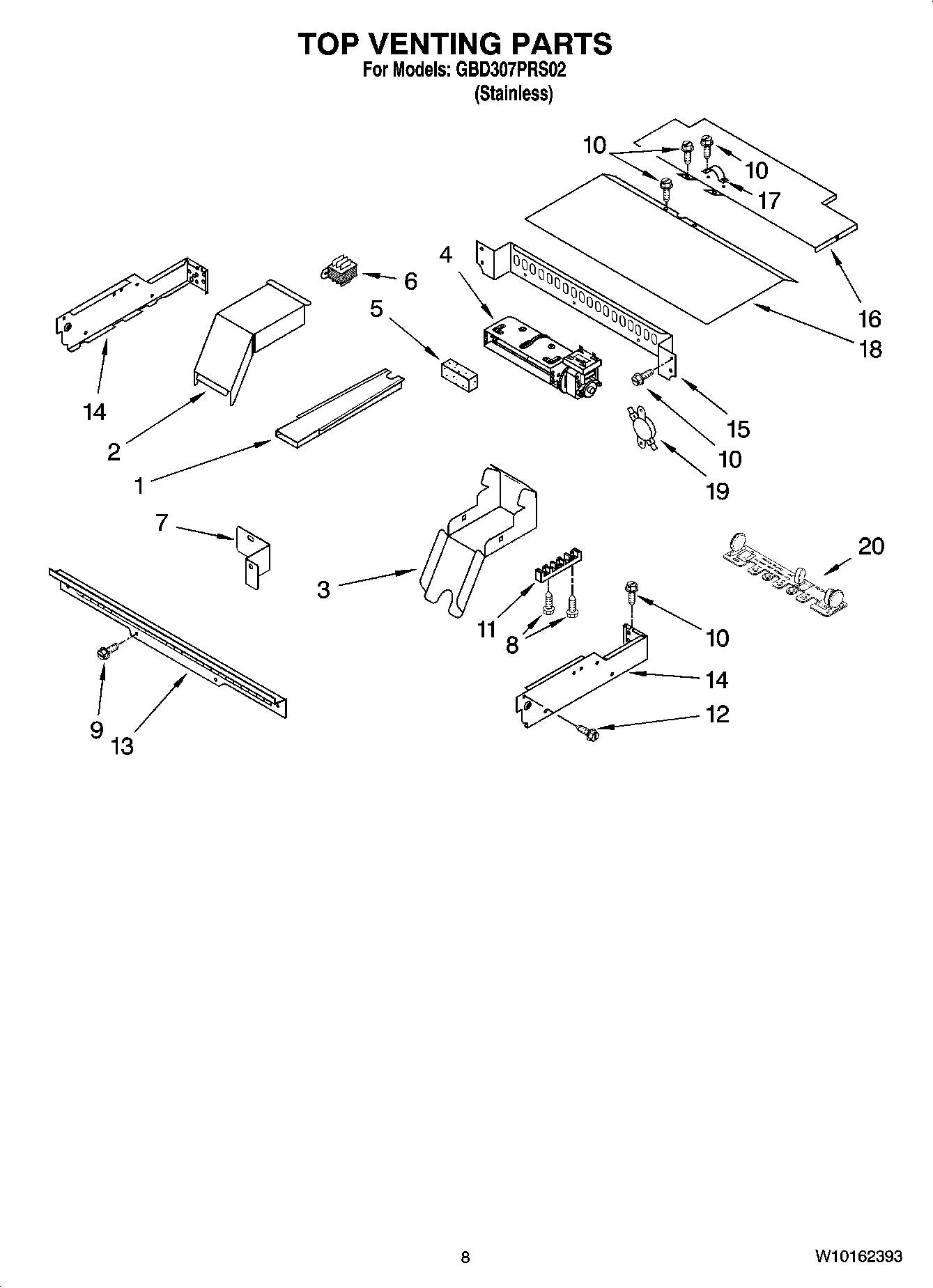

GBD307PRS02 06 – TOP VENTING PARTS, OPTIONAL PARTS (NOT INCLUDED)

GBD307PRS02 06 – TOP VENTING PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

GBD307PRS02 06 – TOP VENTING PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
350930 Whirlpool White Spray Paint
4452400 Whirlpool Microwave Wire Harness
242831 Whirlpool Oven Wire
WP261869 Whirlpool Microwave Paint
Wire (14 Ga. 150 c Blue)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Yellow)
WPL 8301777
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 200 c Brown)
8301909 Whirlpool Oven Wire Harness
261900 Whirlpool Microwave Spray
WPL 591014
WPL ARI58787A8
Conduit, Double
WPL ARI58784A3
WPL ARI58785A9
72017 Whirlpool Appliance Touch-Up Paint White
WP4449809 Whirlpool Screw
WPL ARI58786A8
WP112432 Whirlpool Nut Assembly
Wire, 25` Roll (Black 14 Ga.)
Wire, 25` Roll (Red 14 Ga.)
4448664 Whirlpool Oven Mounting Bracket
4450800 Whirlpool Oven Screw
WPW10339879 Whirlpool Wire Tie
285006 Whirlpool Spray
72032 Whirlpool Touch Up Paint Black
WP482338 Whirlpool Refrigerator Adhesive
8528351 Whirlpool Clip
WP4448950 Whirlpool Screw
Spacer, Foam
4451761 Whirlpool Oven Support Bracket
14451759 Whirlpool Oven Exhaust Vent
24455178 Whirlpool Oven Top Elbow
34455177 Whirlpool Oven Bottom Elbow
4WPW10016550 Whirlpool Blower Cooling Fan
44455191 Whirlpool Oven Mounting Plate
4WPW10176670 Whirlpool Blower
5W10491987 Whirlpool Foam Seal
6Transformer, Control
78302390 Whirlpool Support Bracket
8Screw
9WP4450038 Whirlpool Screw
11WP8203546 Whirlpool Terminal Block
12WP4449154 Whirlpool Screw
138303497 Whirlpool Oven Vent Control
14W10790240 Whirlpool Side Assembly Complete
14W10755214 Whirlpool Side Complete
15Back, Control
16WP4450551 Whirlpool Top Cabinet
18WP4452367 Whirlpool Top Cover
19WP9759243 Whirlpool Thermostat
20SUPPRESSOR
