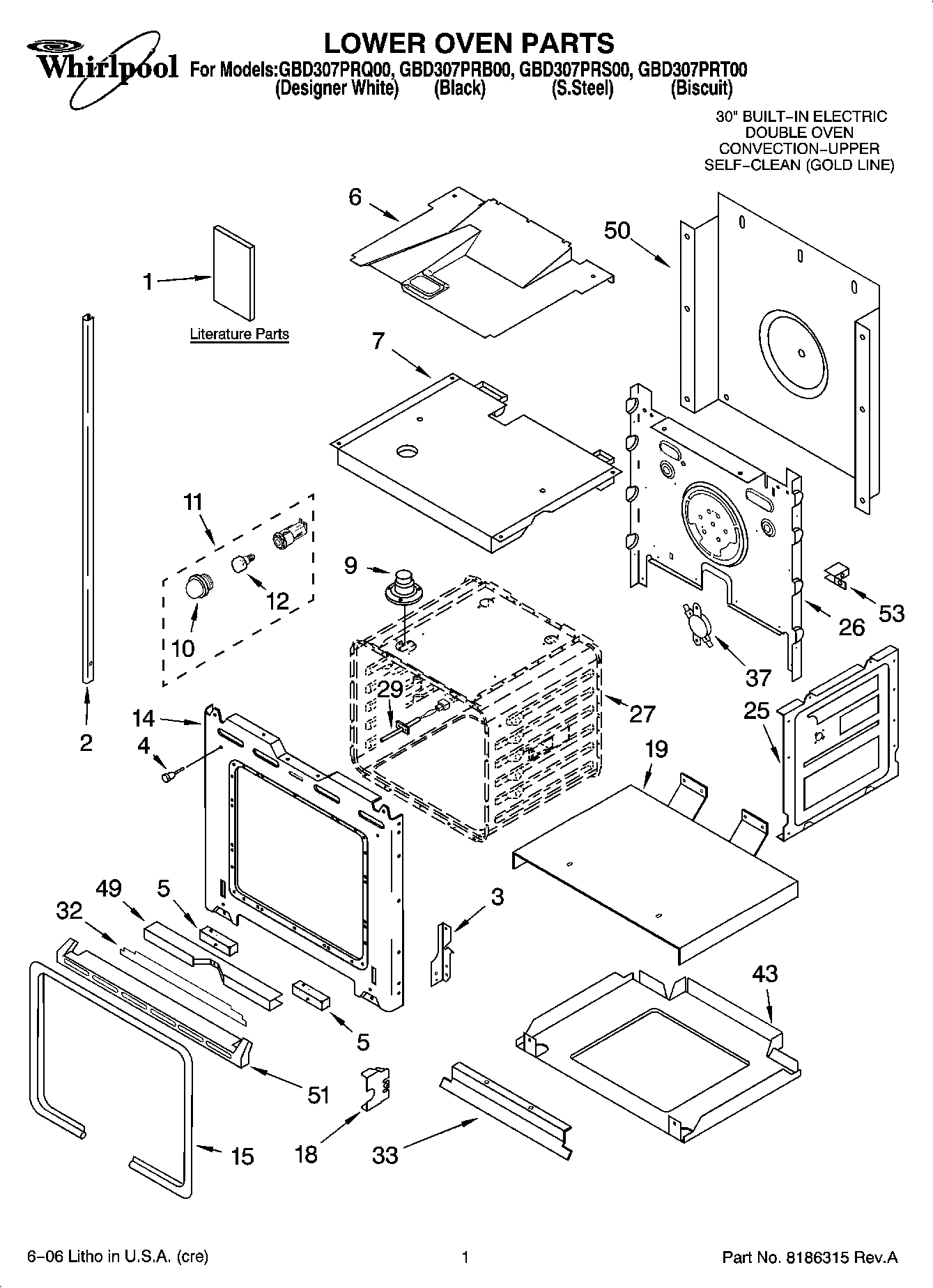

GBD307PRT00 01 – LOWER OVEN PARTS

Products

Position	Product
1	Safe Cooking Tips (French)
1	Installation Instructions Owners Manual (Sgl/Dbl Oven)
1	Cookbook, WP Conv.
1	Use & Care Guide
1	Tech Sheet (Oven)
1	Safe Cooking Tips
2	W10339503 Whirlpool Trim
2	WPW10339500 Whirlpool Trim
2	WPW10339502 Whirlpool Trim Kit
2	Trim, Side (RH White)
2	Trim, Side (LH Biscuit)
2	WPW10339499 Whirlpool Trim Assembly
2	WP8281236 Whirlpool Screw
2	Trim, Side (RH S.Steel)
2	Trim, Side (LH S.Steel)
3	WP4455605 Whirlpool Left Hand Hinge
3	WP4455606 Whirlpool Right Hand Hinge
4	4448520 Whirlpool Oven Bumper
5	Spacer, Foam
6	Divider, Vent
7	Top, Chassis
9	W10861715 Whirlpool Vent Tube
9	SCREW
10	Lens, Light
11	WPW10734065 Whirlpool Light
12	WP4173175 Whirlpool Light Bulb
14	Frame, Front
14	Screw
14	WP4450118 Whirlpool Nut
15	W11675844 Whirlpool Oven Gasket
18	4452152 Whirlpool Oven Mounting Bracket
19	Support, Insulation
25	W10782197 Whirlpool Side Panel
26	Back, Chassis
27	Liner, Oven (Not serviceable)
29	WPW10131825 Whirlpool Oven Temperature Sensor
32	Insulation, Bottom Vent
33	9760677 Whirlpool Oven Vent Deflector
37	WP9759242 Whirlpool Thermostat
43	Base, Chassis
49	WP4449154 Whirlpool Screw
49	WP4448933 Whirlpool Retainer
50	WP4451747 Whirlpool Rear Cover
51	WPW10207689 Whirlpool Trim Kit
51	Trim, Bottom (S.Steel)
53	WPL 4449845
53	FOLLOWING PARTS NOT ILLUSTRATED INSULATION
53	W11684730 Whirlpool Insulation
53	WPL 4450365
53	WP4449809 Whirlpool Screw
