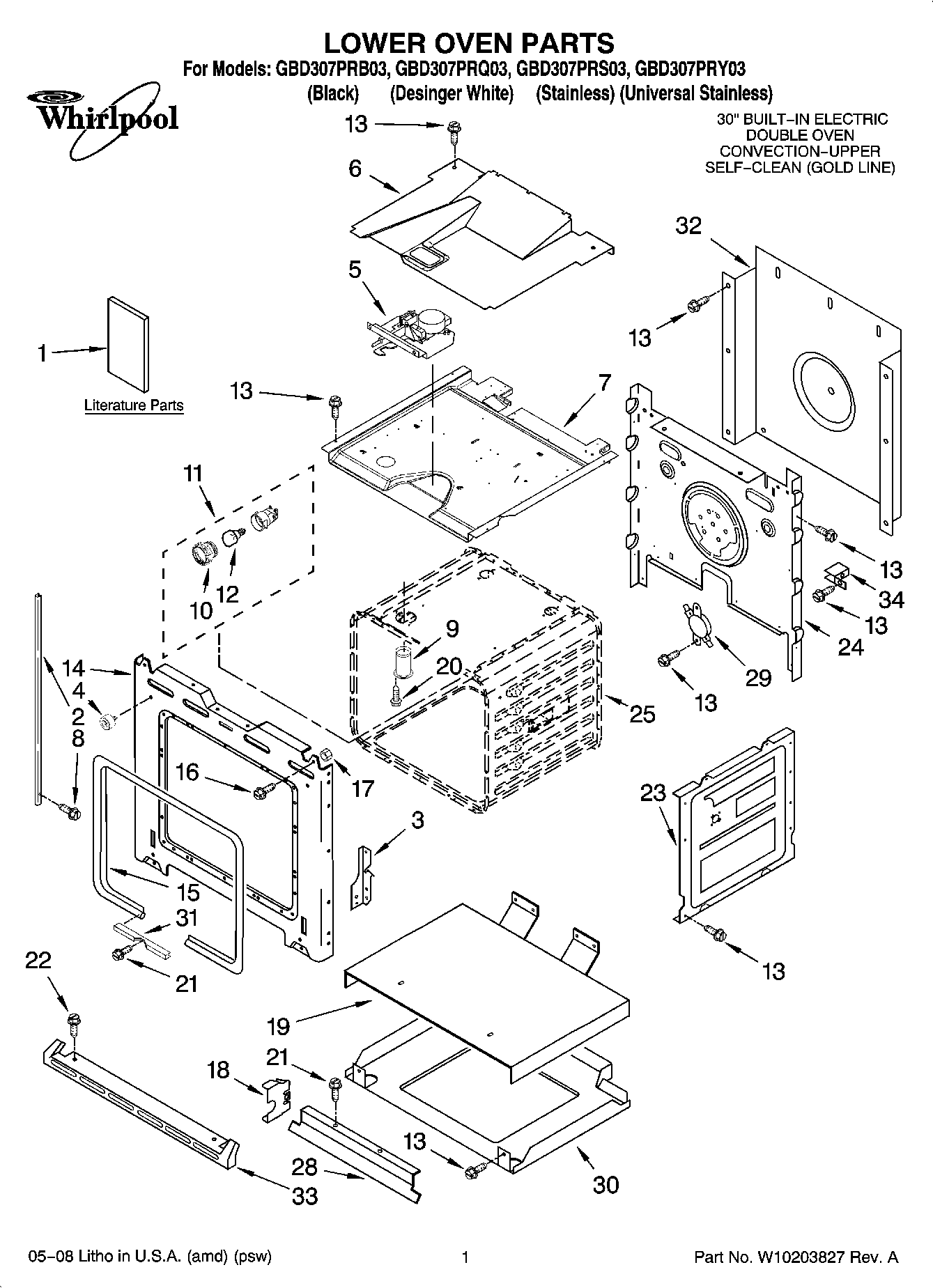

GBD307PRY03 01 – LOWER OVEN PARTS

GBD307PRY03 01 – LOWER OVEN PARTS

Written by

in

GBD307PRY03 01 – LOWER OVEN PARTS

Products

PositionProduct
Insulation
Following Parts Not Illustrated
WPL 4450365
W11684730 Whirlpool Insulation
1Tech Sheet (Oven)
1Installation Instructions Owners Manual (Sgl/Dbl Oven)
1Owners Manual (English)
1Owners Manual (French)
1SAFER COOKING TIPS (ENGLISH
1Safer Cooking Tips (French)
2Trim, Side Left (Stainless)
2WPW10339499 Whirlpool Trim Assembly
2WPW10339500 Whirlpool Trim
2WPW10339502 Whirlpool Trim Kit
2Trim, Side Right (White)
2Trim, Side Right (Stainless)
3WP4455605 Whirlpool Left Hand Hinge
3WP4455606 Whirlpool Right Hand Hinge
4W10105790 Whirlpool Bumper
5WP9760889 Whirlpool Door Latch
6Divider, Vent
7Top Chassis
8WP3400805 Whirlpool Screw Assembly
8WP8281236 Whirlpool Screw
9W10861715 Whirlpool Vent Tube
10Lens, Light (2)
11WPW10734065 Whirlpool Light
12WP4173175 Whirlpool Light Bulb
13WP4449809 Whirlpool Screw
14WPW10115831 Whirlpool Front Frame
15W11675844 Whirlpool Oven Gasket
16Screw
17WP4450118 Whirlpool Nut
184452152 Whirlpool Oven Mounting Bracket
19Support, Insulation
20SCREW
21WP4449154 Whirlpool Screw
22WP3400832 Whirlpool Screw
23W10782197 Whirlpool Side Panel
24Back, Chassis
25Liner, Oven (Not serviceable)
289760677 Whirlpool Oven Vent Deflector
29WP9759242 Whirlpool Thermostat
30Base, Chassis
31WP4448933 Whirlpool Retainer
32WP4451747 Whirlpool Rear Cover
33Vent, Bottom Trim (Stainless)
33WPW10207689 Whirlpool Trim Kit
34WPL 4449845
