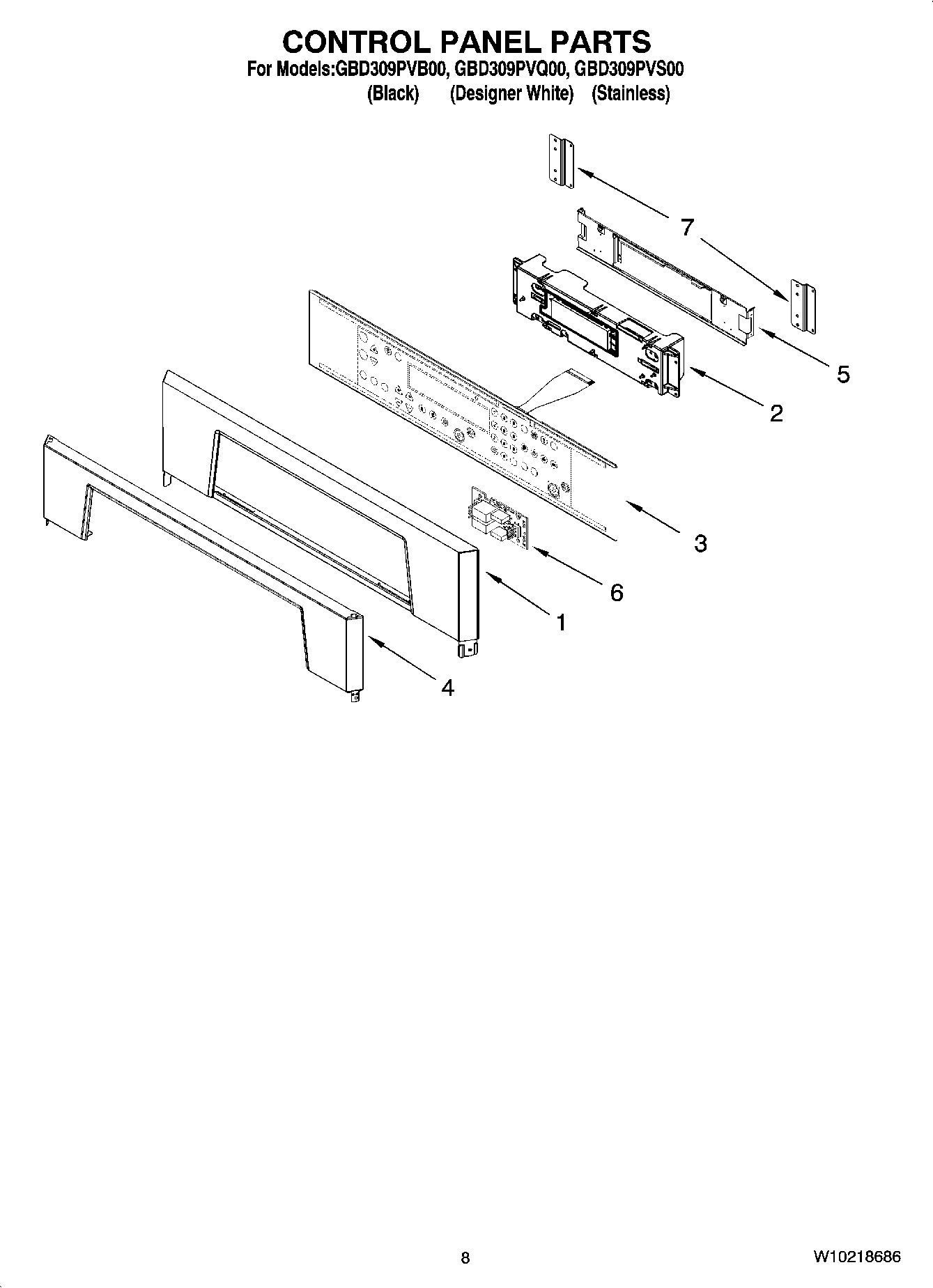

GBD309PVB00 06 – CONTROL PANEL PARTS

GBD309PVB00 06 – CONTROL PANEL PARTS

Written by

in

GBD309PVB00 06 – CONTROL PANEL PARTS

Products

PositionProduct
1WP8302848 Whirlpool Control Panel
1WP8302849 Whirlpool Control Panel
2Control, Electronic
3W10172118 Whirlpool Membrane Switch
3W10172119 Whirlpool Membrane Switch
4Trim, Control Panel (White)
4WPW10172167 Whirlpool Trim Panel
4WPW10172165 Whirlpool Trim Panel
5Backer, Control Panel
6Latch, Sister Board
7BRACKET SISTER BOARD
