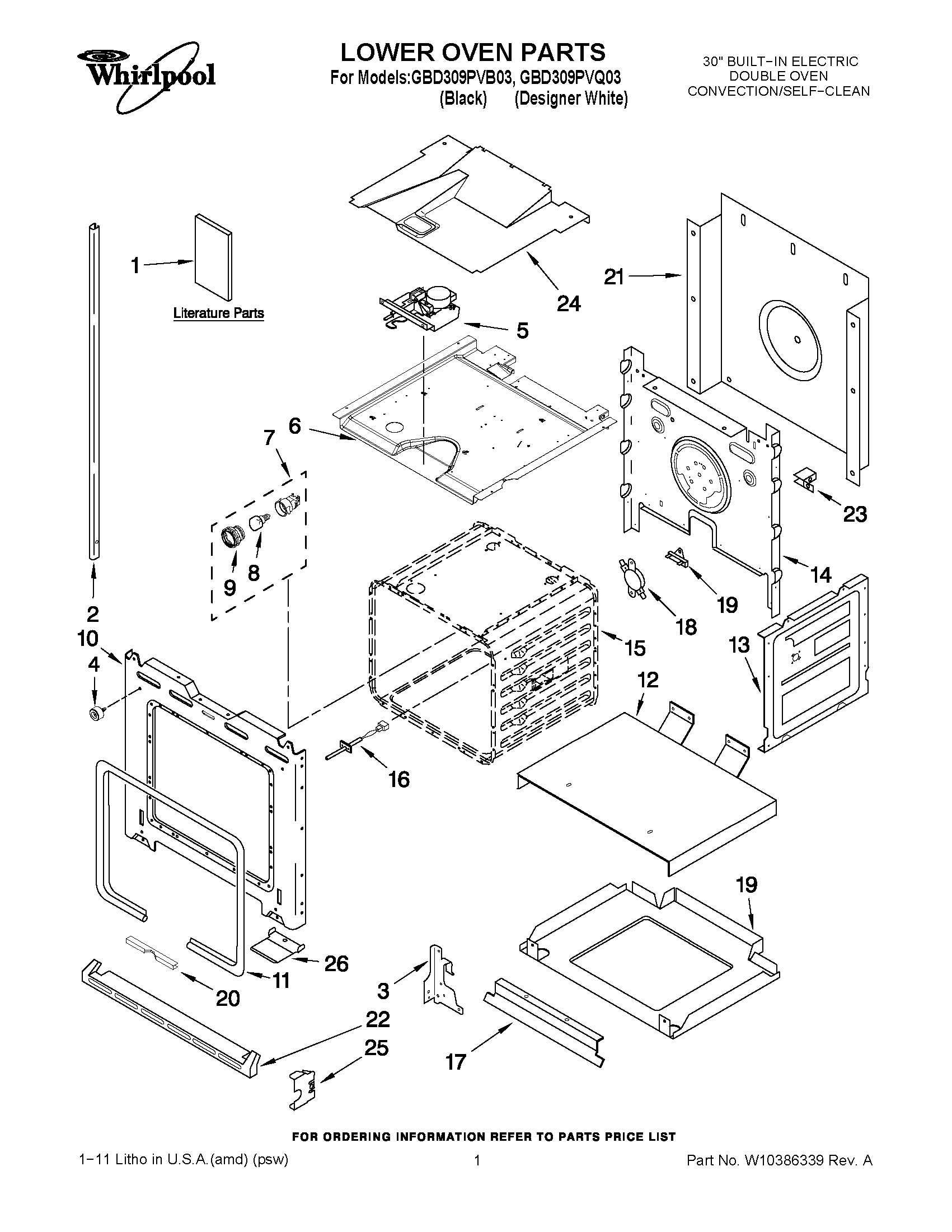

GBD309PVB03 01 – LOWER OVEN PARTS

GBD309PVB03 01 – LOWER OVEN PARTS

Written by

in

GBD309PVB03 01 – LOWER OVEN PARTS

Products

PositionProduct
NIWPL 4450365
NIW11684730 Whirlpool Insulation
1Guide, Easy Set
1Tech Sheet
1Installation Instructions
1Safer Cooking Tips (French)
1SAFER COOKING TIPS (ENGLISH
2WPW10339499 Whirlpool Trim Assembly
2WPW10339500 Whirlpool Trim
2WPW10339502 Whirlpool Trim Kit
2TRIM, SIDE RIGHT (WHITE)
3WP4455606 Whirlpool Right Hand Hinge
3WP4455605 Whirlpool Left Hand Hinge
4W10105790 Whirlpool Bumper
5WPW10195934 Whirlpool Door Latch
6Top Chassis
7WPW10307114 Whirlpool Light
8BULB-LIGHT
9W10169756 Whirlpool Light Lens
10Screw
10WPW10115831 Whirlpool Front Frame
10WP4450118 Whirlpool Nut
11W11675844 Whirlpool Oven Gasket
12Support, Insulation
13W10782197 Whirlpool Side Panel
14Back, Chassis
15CABINET (NOT A SERVICEABLE PART)
16WPW10131825 Whirlpool Oven Temperature Sensor
179760677 Whirlpool Oven Vent Deflector
18WP9759242 Whirlpool Thermostat
19Base, Chassis
20WP4448933 Whirlpool Retainer
20WP4449154 Whirlpool Screw
21WP4451747 Whirlpool Rear Cover
22WPW10207689 Whirlpool Trim Kit
23WPL 4449845
23WP4449809 Whirlpool Screw
24Divider, Vent
254452152 Whirlpool Oven Mounting Bracket
264455807 Whirlpool Oven Vent Deflector
