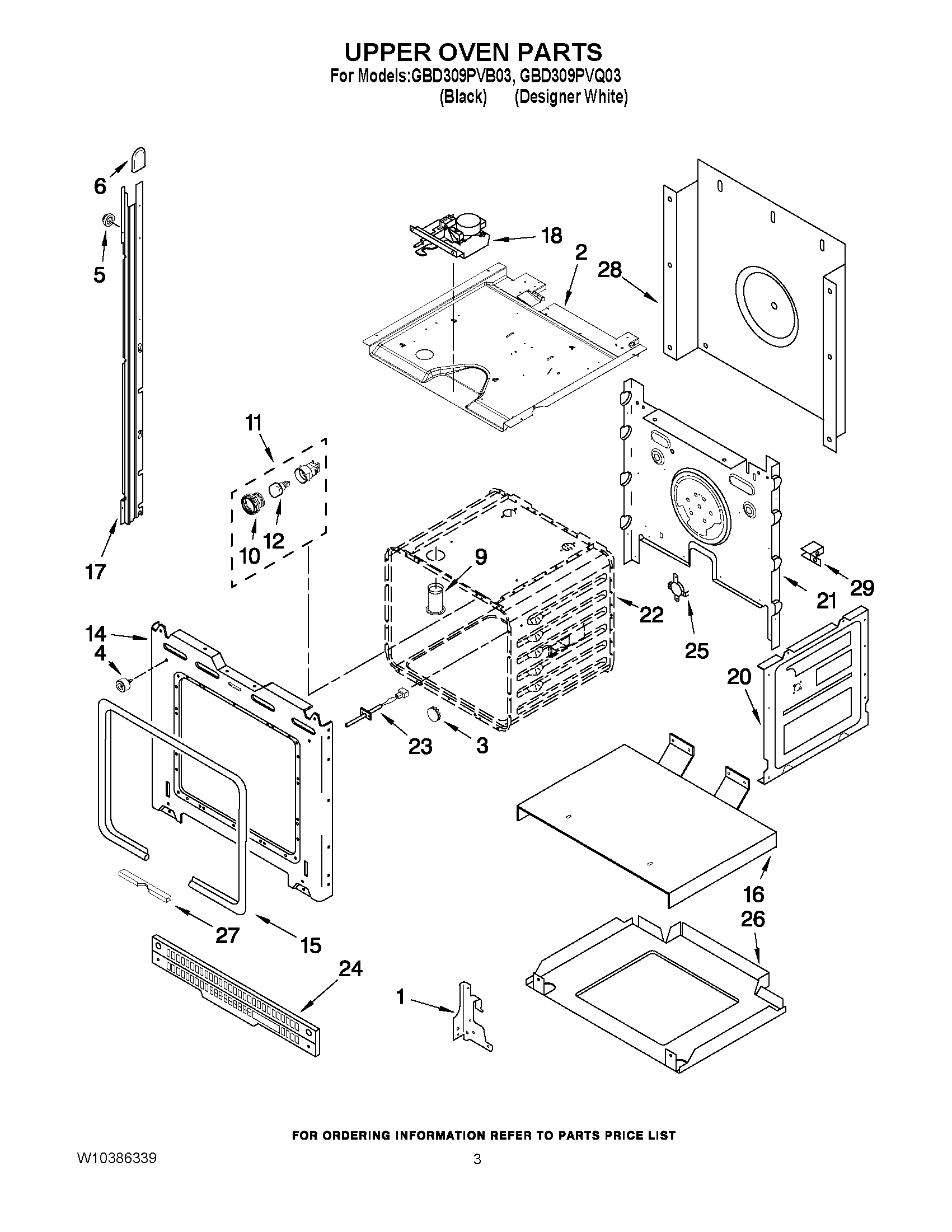

GBD309PVB03 02 – UPPER OVEN PARTS

Products

Position	Product
NI	WPL 4450365
NI	W11684730 Whirlpool Insulation
1	WP4455605 Whirlpool Left Hand Hinge
1	WP4455606 Whirlpool Right Hand Hinge
2	Top Chassis
3	Plug, Button
4	W10105790 Whirlpool Bumper
5	WP4448444 Whirlpool Grommet
6	Cap, Spacer
9	W10861715 Whirlpool Vent Tube
10	W10169756 Whirlpool Light Lens
11	WPW10307114 Whirlpool Light
12	BULB-LIGHT
14	Screw
14	WPW10115831 Whirlpool Front Frame
15	W11675844 Whirlpool Oven Gasket
16	Support, Insulation
17	Rail, Side (Left)
17	WP8302793 Whirlpool Mounting Rail
18	WPW10195934 Whirlpool Door Latch
20	W10782197 Whirlpool Side Panel
21	Back, Chassis
22	CABINET (NOT A SERVICEABLE PART)
23	WPW10131825 Whirlpool Oven Temperature Sensor
24	Vent, Center
25	WP9759242 Whirlpool Thermostat
26	Base, Chassis
27	WP4449154 Whirlpool Screw
27	WP4448933 Whirlpool Retainer
28	WP4451747 Whirlpool Rear Cover
29	WPL 4449845
29	WP4449809 Whirlpool Screw
