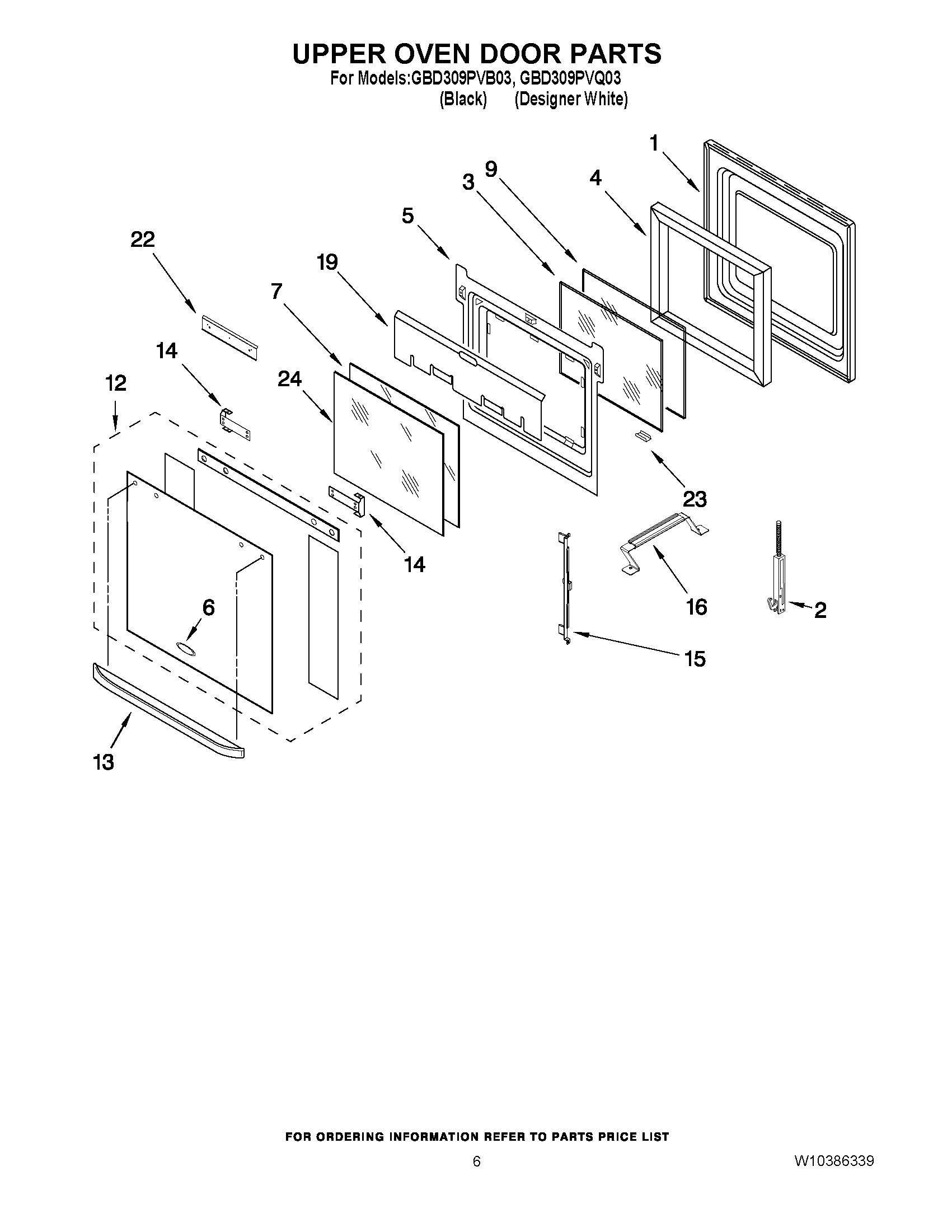

GBD309PVB03 04 – UPPER OVEN DOOR PARTS

Products

Position	Product
1	WP9759413 Whirlpool Door Liner
2	HINGE-DOOR
2	WP9760576 Whirlpool Door Hinge (Left)
3	WP4449259 Whirlpool Glass Window
4	WP4451722 Whirlpool Door Insulation Assembly
5	WP4457132 Whirlpool Retainer
6	NAMEPLATE
7	WP9759225 Whirlpool Inner Door Glass
12	Assembly, Door Glass (White)
12	Assembly, Door Glass (Black)
13	Door Handle (Black)
13	Door Handle (White)
14	Bracket, Handle (L.Hand)
14	4455803 Whirlpool Oven Bracket
15	WP9759229 Whirlpool Mounting Bracket
16	Bracket (3rd Glsss)
19	SHIELD, HEAT TOP
19	WP4449809 Whirlpool Screw
22	4457114 Whirlpool Oven Heat Shield
23	RETAINER, CLIP (BLACK)
23	RETAINER, CLIP (WHITE)
24	Glass, Inner
