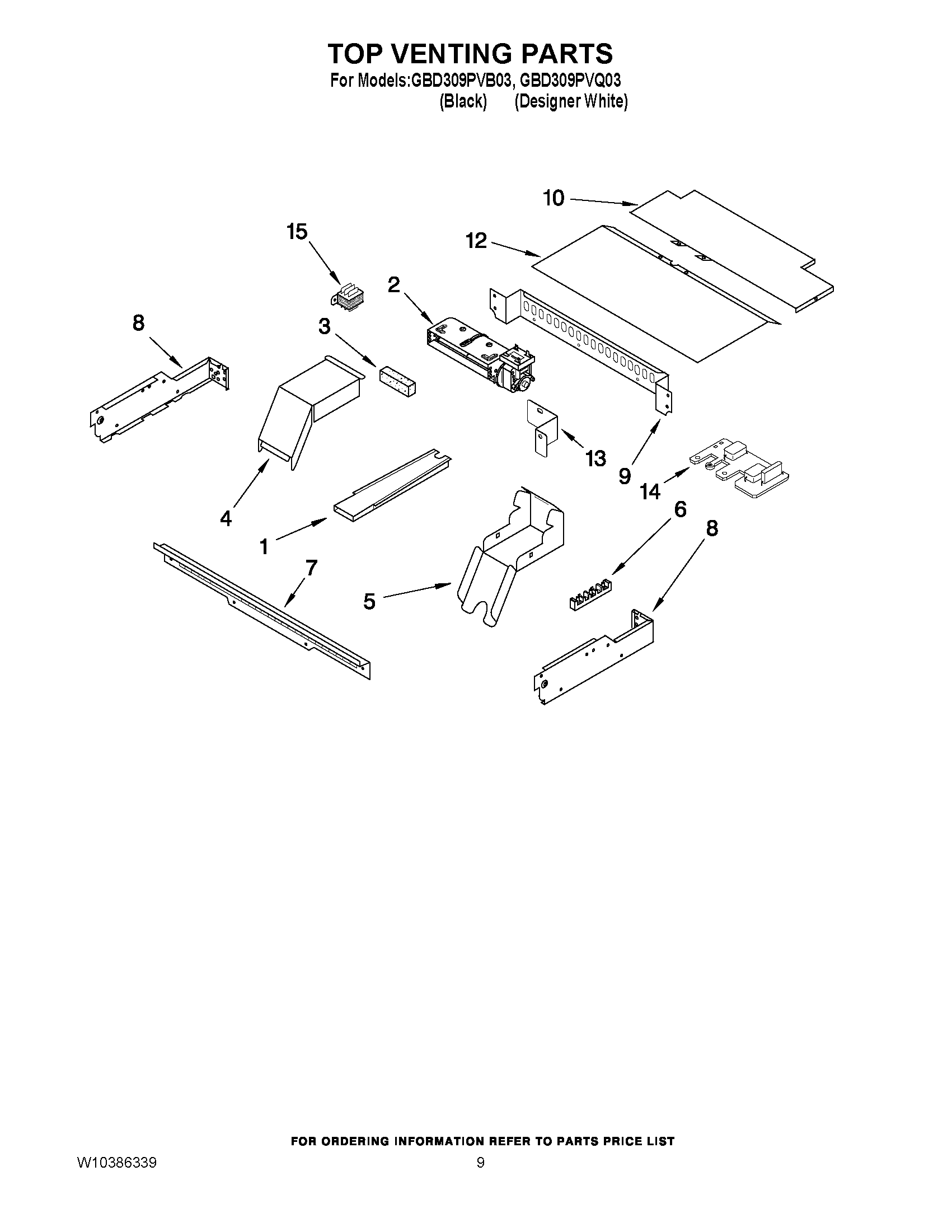

GBD309PVB03 07 – TOP VENTING PARTS

Products

Position	Product
1	Screw
1	4451759 Whirlpool Oven Exhaust Vent
2	WPW10016550 Whirlpool Blower Cooling Fan
2	WPW10176670 Whirlpool Blower
3	W10491987 Whirlpool Foam Seal
4	4455178 Whirlpool Oven Top Elbow
5	4455177 Whirlpool Oven Bottom Elbow
6	BLOCK, TERMINAL
6	Screw
7	8303497 Whirlpool Oven Vent Control
8	W10790240 Whirlpool Side Assembly Complete
8	W10755214 Whirlpool Side Complete
9	Back, Control
10	WP4450551 Whirlpool Top Cabinet
12	WP4452367 Whirlpool Top Cover
12	WP4449809 Whirlpool Screw
13	8302390 Whirlpool Support Bracket
14	WP4451985 Whirlpool Noise Filter Board
15	Transformer
