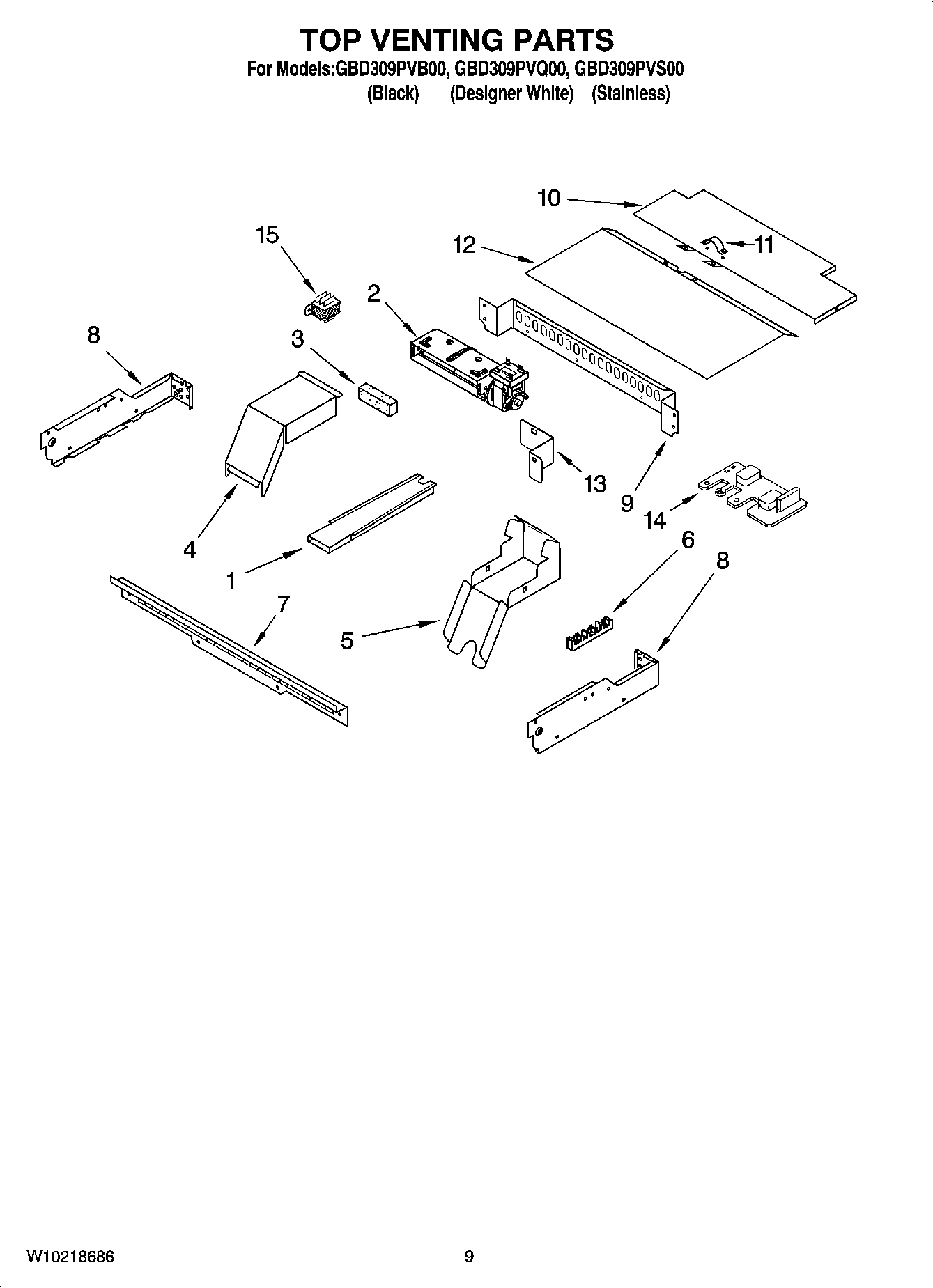

GBD309PVQ00 07 – TOP VENTING PARTS, OPTIONAL PARTS

Products

Position	Product
	WIRING HARNESS PARTS
	Conduit, Double
	4452400 Whirlpool Microwave Wire Harness
	WP261869 Whirlpool Microwave Paint
	WPL 591014
	4451761 Whirlpool Oven Support Bracket
	261900 Whirlpool Microwave Spray
	8301909 Whirlpool Oven Wire Harness
	Miscellaneous
	W10179652 Whirlpool Wire Harness
	ADHESIVE
	WP4448950 Whirlpool Screw
	8528351 Whirlpool Clip
	4448664 Whirlpool Oven Mounting Bracket
	WP4449809 Whirlpool Screw
	72017 Whirlpool Appliance Touch-Up Paint White
	4450800 Whirlpool Oven Screw
	350930 Whirlpool White Spray Paint
	Nut
	WP482338 Whirlpool Refrigerator Adhesive
	72032 Whirlpool Touch Up Paint Black
	285006 Whirlpool Spray
1	4451759 Whirlpool Oven Exhaust Vent
1	Screw
2	WPW10016550 Whirlpool Blower Cooling Fan
2	WPW10176670 Whirlpool Blower
3	W10491987 Whirlpool Foam Seal
4	4455178 Whirlpool Oven Top Elbow
5	4455177 Whirlpool Oven Bottom Elbow
6	Screw
6	WP8203546 Whirlpool Terminal Block
7	8303497 Whirlpool Oven Vent Control
8	W10755214 Whirlpool Side Complete
8	W10790240 Whirlpool Side Assembly Complete
9	Back, Control
10	WP4450551 Whirlpool Top Cabinet
11	WP112432 Whirlpool Nut Assembly
12	WP4452367 Whirlpool Top Cover
13	8302390 Whirlpool Support Bracket
14	WP4451985 Whirlpool Noise Filter Board
15	Transformer
