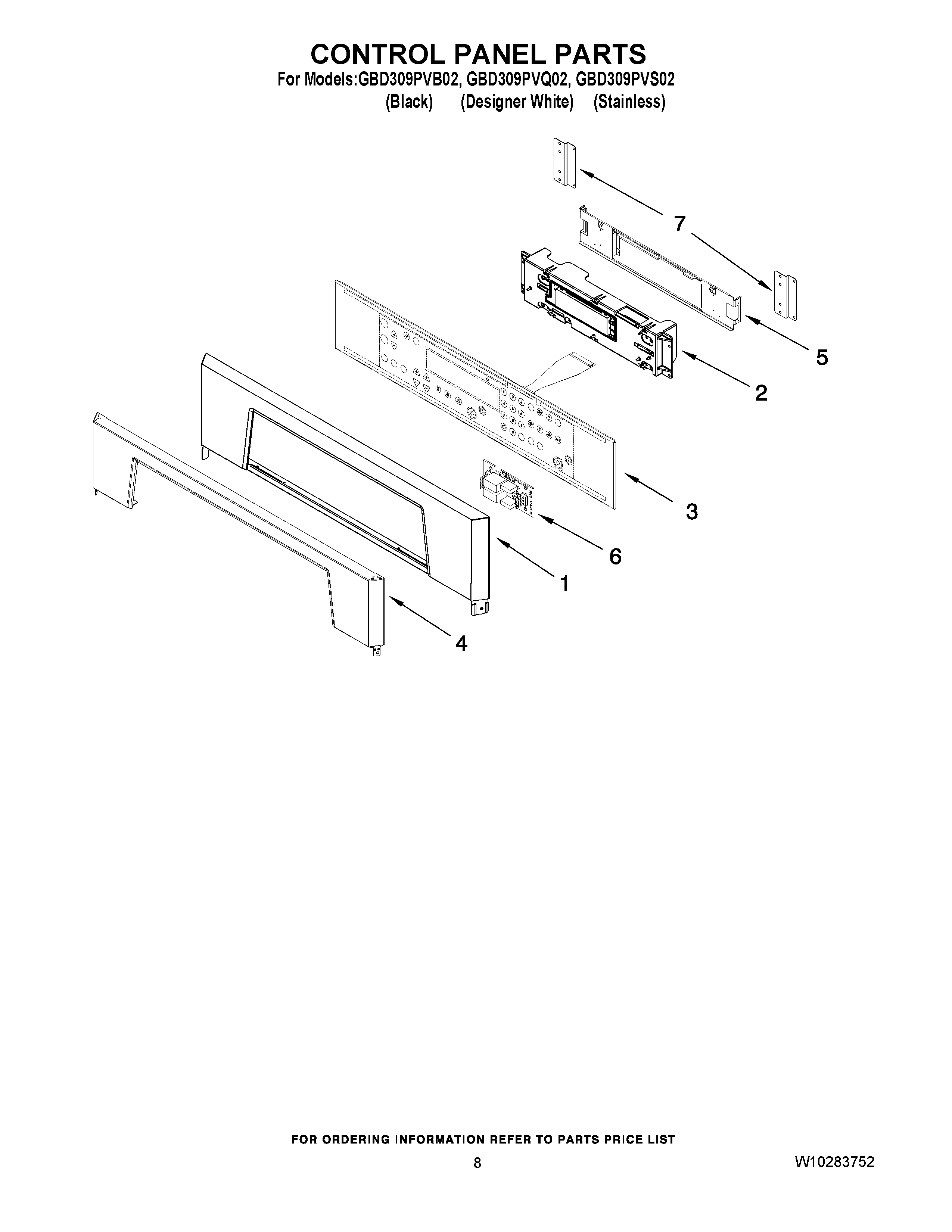

GBD309PVQ02 06 – CONTROL PANEL PARTS

Products

Position	Product
1	WP8302848 Whirlpool Control Panel
1	WP8302849 Whirlpool Control Panel
2	Control, Electronic
3	W10172118 Whirlpool Membrane Switch
3	W10172119 Whirlpool Membrane Switch
4	WPW10172165 Whirlpool Trim Panel
4	Trim, Control Panel (White)
4	WPW10172167 Whirlpool Trim Panel
5	BACKER, CONTROL PANEL
6	Latch, Sister Board
7	BRACKET SISTER BOARD
