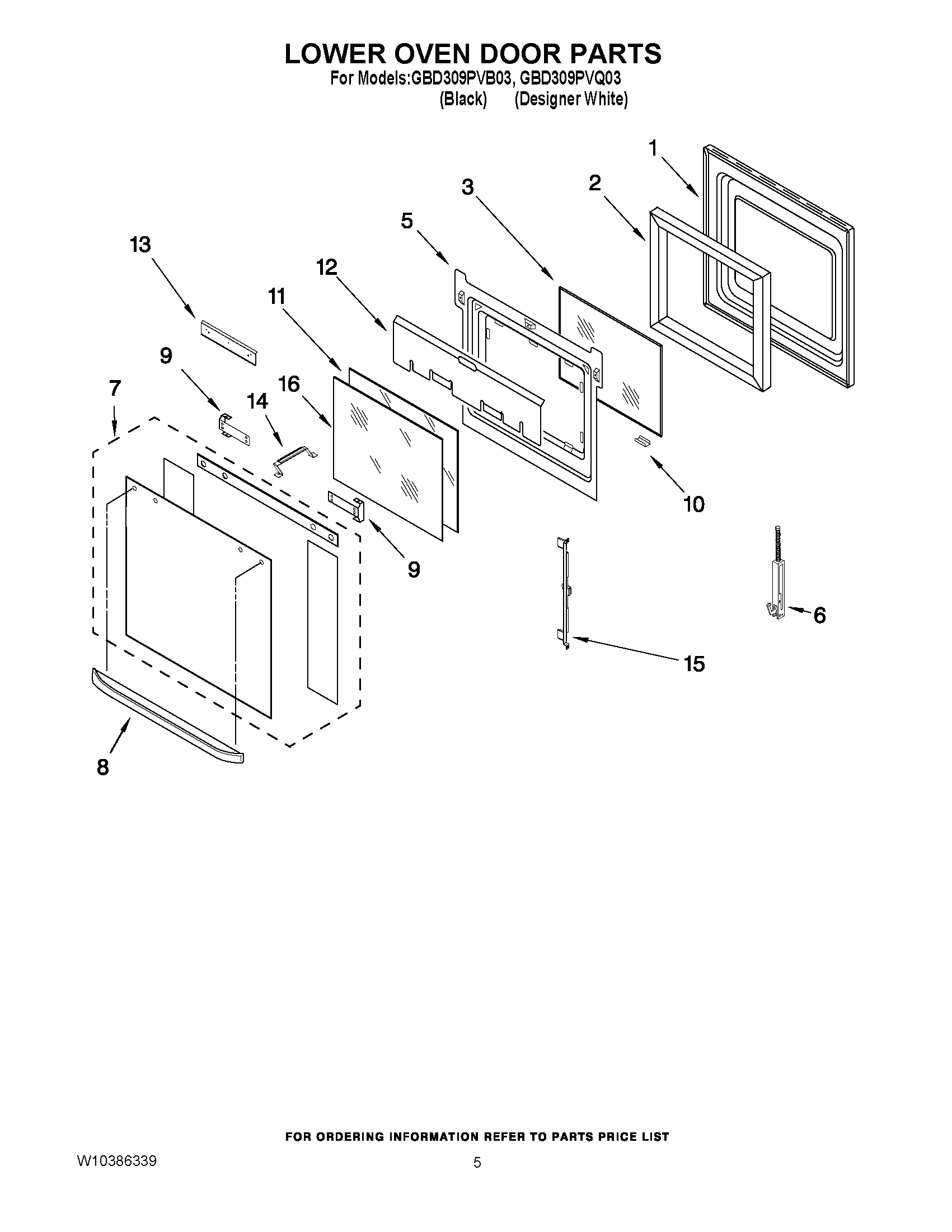

GBD309PVQ03 03 – LOWER OVEN DOOR PARTS

Products

Position	Product
1	WP9759413 Whirlpool Door Liner
2	WP4451722 Whirlpool Door Insulation Assembly
3	WP4449259 Whirlpool Glass Window
5	WP4457132 Whirlpool Retainer
5	WP4449809 Whirlpool Screw
6	HINGE-DOOR
6	WP9760576 Whirlpool Door Hinge (Left)
7	Assembly, Door Glass (White)
7	Assembly, Door Glass (Black)
8	Door Handle (Black)
8	Door Handle (White)
9	Bracket, Handle (L.Hand)
9	4455803 Whirlpool Oven Bracket
10	RETAINER, CLIP (BLACK)
10	RETAINER, CLIP (WHITE)
11	Glass, Inner
12	SHIELD, HEAT TOP
13	4457114 Whirlpool Oven Heat Shield
14	Bracket (3rd Glsss)
15	WP9759229 Whirlpool Mounting Bracket
16	WP9759225 Whirlpool Inner Door Glass
