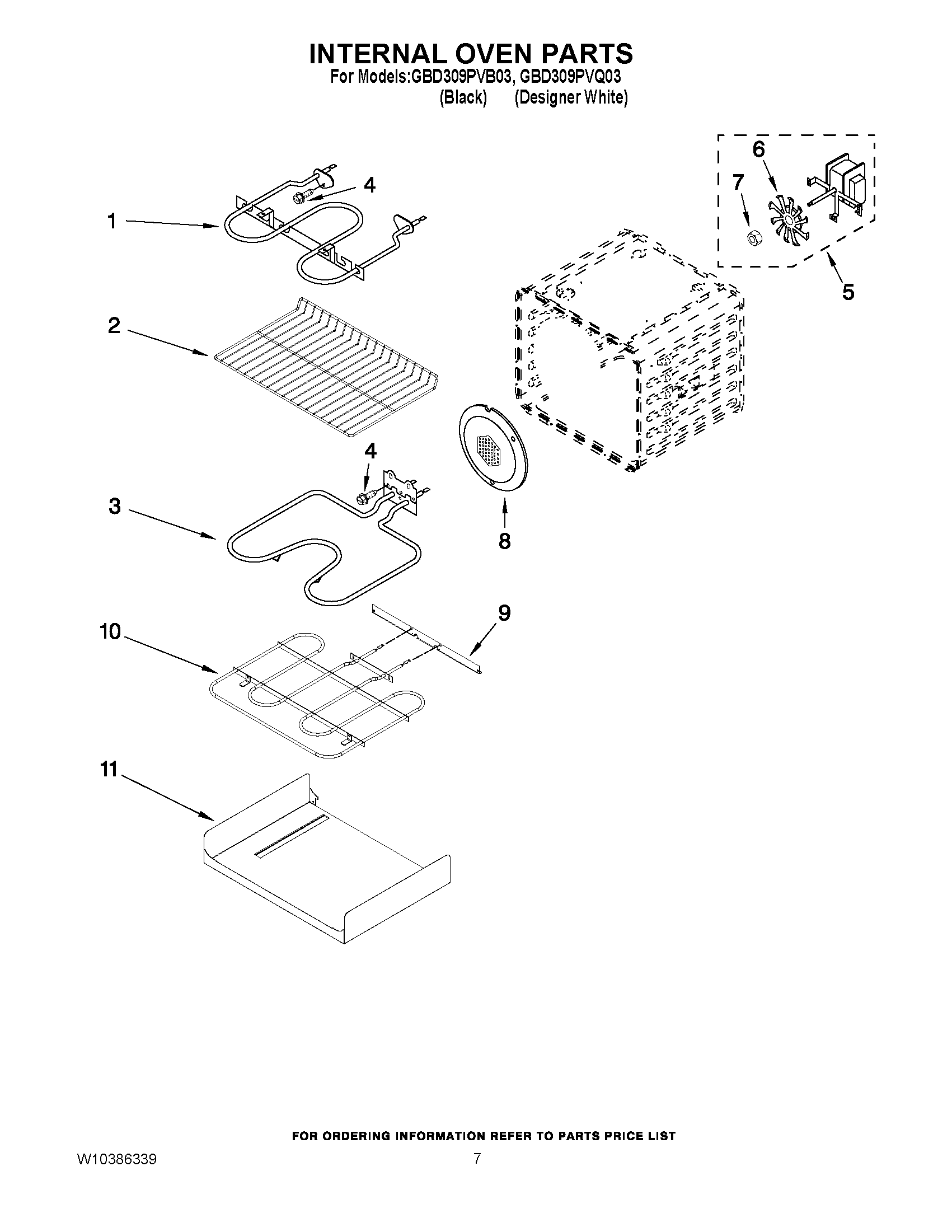

GBD309PVQ03 05 – INTERNAL OVEN PARTS

GBD309PVQ03 05 – INTERNAL OVEN PARTS

Written by

in

GBD309PVQ03 05 – INTERNAL OVEN PARTS

Products

PositionProduct
1WPW10207400 Whirlpool Broil Element
2WPW10179152 Whirlpool Rack Oven
3WP9760769 Whirlpool Element Assembly
4WP4449154 Whirlpool Screw
5W10794022 Whirlpool Oven Cooktop Fan Motor
6W10758272 Whirlpool Convection Fan
7WPW10116349 Whirlpool Nut
8WPW10160821 Whirlpool Fan Cover
94450039 Whirlpool Oven Access Cover
10ELMNT-BAKE
11Tray, Hidden Bake
