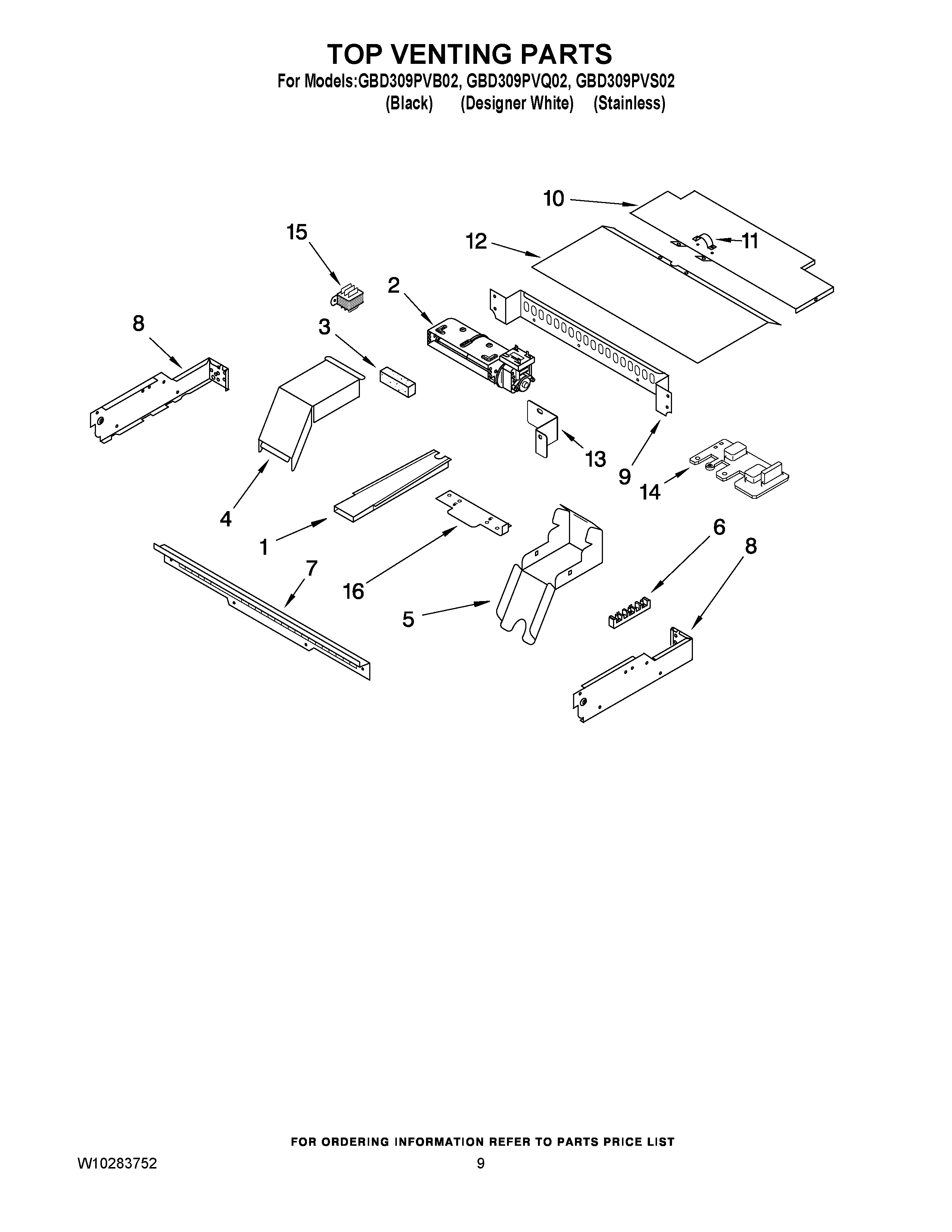

GBD309PVS02 07 – TOP VENTING PARTS

Products

PositionProduct
1Screw
14451759 Whirlpool Oven Exhaust Vent
2WPW10176670 Whirlpool Blower
2WPW10016550 Whirlpool Blower Cooling Fan
3W10491987 Whirlpool Foam Seal
44455178 Whirlpool Oven Top Elbow
54455177 Whirlpool Oven Bottom Elbow
6Screw
6BLOCK, TERMINAL
78303497 Whirlpool Oven Vent Control
8W10790240 Whirlpool Side Assembly Complete
8W10755214 Whirlpool Side Complete
9Back, Control
10WP4450551 Whirlpool Top Cabinet
114448664 Whirlpool Oven Mounting Bracket
11WP112432 Whirlpool Nut Assembly
12WP4452367 Whirlpool Top Cover
12WP4449809 Whirlpool Screw
138302390 Whirlpool Support Bracket
14WP4451985 Whirlpool Noise Filter Board
15Transformer
164455191 Whirlpool Oven Mounting Plate
